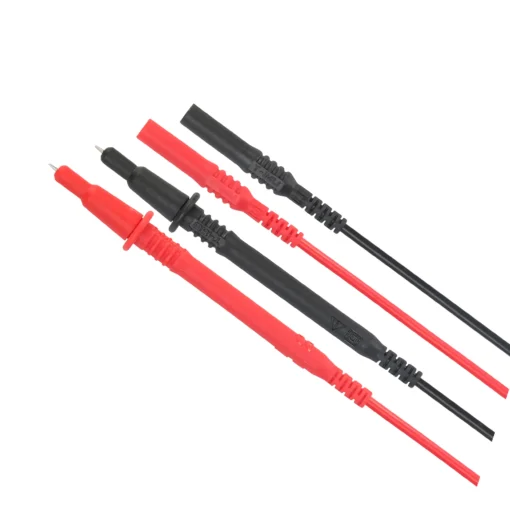

UNI-T UT-L07 Multimeter Probes
The UNI-T UT-L07 Multimeter Probes are general-purpose test probes designed for use with compatible digital multimeters and clamp meters. They provide a practical solution for electrical measurement tasks where stable contact, safe handling, and reliable probe performance are required.
These probes feature a 1000mm lead length, giving the user enough reach for bench testing, maintenance work, and general electrical inspection. The probe tip design includes 5mm and 12mm usable lengths, allowing flexibility when measuring different terminals, sockets, and circuit contact points.
Features:
- Double insulated probe design.
- Lantern-type probe structure.
- Removable probe protector.
- Suitable for general multimeter measurements.
- Compatible with all multimeters and clamp meters measuring within specification.
- 1000mm lead length for convenient testing reach.
- 5mm + 12mm probe length for flexible contact access.
- CAT III 1000V 10A safety rating.
- Operating temperature range from -15°C to 40°C.
- Supplied as one pair of probes.
Specifications:
| Specification | Value |
|---|---|
| Product Type: | Multimeter Probes |
| Model: | UNI-T UT-L07 |
| Lead Length: | 1000mm |
| Probe Length: | 5mm + 12mm |
| Temperature Condition: | -15°C to 40°C |
| Safety Level: | CAT III 1000V 10A |
| Insulation Type: | Double insulated |
| Probe Type: | Lantern probes |
| Probe Protector: | Removable probe protector |
| Compatibility: | All multimeters and clamps measuring within specification |
| Amount: | 1 pair |
Applications:
- Digital Multimeter Testing.
- Clamp Meter Measurements.
- Electrical Maintenance Work.
- Circuit Continuity Testing.
- Voltage Measurement Tasks.
- Bench Testing Applications.
- General Electrical Troubleshooting.
- Terminal and Contact Point Testing.
Package Contents:
- 1x Pair of UNI-T UT-L07 Multimeter Probes
