TEC1-6308 Thermoelectric Cooler Peltier 420mm
The TEC1-06308 is a robust thermoelectric cooler (Peltier) built from 63 semiconductor couples sandwiched between ceramic plates. When DC is applied the device pumps heat from one side to the other, producing a cold side for cooling small enclosures, electronic components, or laboratory samples. This particular type is designed for moderate-to-high cooling capacity in a compact footprint and is commonly used where size and no-moving-parts cooling are needed.
The module is specified with a maximum voltage of 7.6 V and maximum current of 8 ± 0.5 A, delivering a maximum heat-pumping capacity (Qcmax) of ≈ 32 W at rated voltage. It is supplied with tinned 20 AWG wires (red = +, black = −) with a standard length of 151 ± 5 mm, and is rated for operation across a wide environmental range (working temperature −55 °C to +80 °C).
Features:
- Solid-state cooling with no moving parts.
- Compact square ceramic package for easy mounting.
- Rapid localized cooling and temperature stabilization.
- Reversible heating/cooling by reversing polarity.
- Good thermal cycling tolerance for many applications.
- Supplied with pre-tinned wires for easy connection.
Specifications:
| Parameter | Value |
|---|---|
| Part Number: | TEC1-06308 |
| Number of Couples: | 63 couples |
| Maximum Voltage (Vmax): | 7.6V |
| Maximum Current (Imax): | 8 ± 0.5A |
| Maximum Heat Pumping (Qc max): | 32W (at 7.6V) |
| Cold-Hot ΔTmax: | ≥ 63°C |
| DC Resistance (at 20°C, 1kHz): | 0.65 – 0.75Ω |
| Wire Type: | 20 AWG UL PVC, tinned copper |
| Wire Length: | 151 ± 5mm |
| Recommended Soldering Side: | Wires soldered on the hot side |
| Working Temperature Range: | −55°C to +80°C |

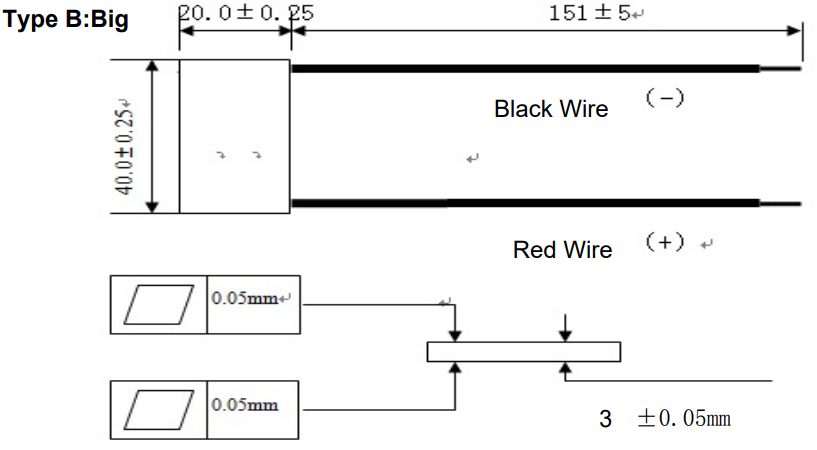

| Mechanical: | Plate ~40.0 ±0.25mm ; thickness ~3 ±0.05mm |
| Packing: | Foam box |
Applications:
- CPU / small electronics local cooling and heat sinking.
- Portable coolers and beverage chillers (small size).
- Laser diode and sensor temperature stabilization (TEC control).
- Medical / laboratory temperature control plates.
- Thermoelectric refrigeration modules and prototypes.
- Laser/power electronics thermal management.
Packages:
- 1x TEC1-6308 Thermoelectric Cooler Peltier 420mm.
