Terminal Block Header Male 8 Pins 5mm TH
8-position male terminal block header with 5mm pitch, vertical through-hole mounting, 12A current rating, 300V rating, and solder terminals.
15.00 EGP
In stockSKU 3496300160624
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast

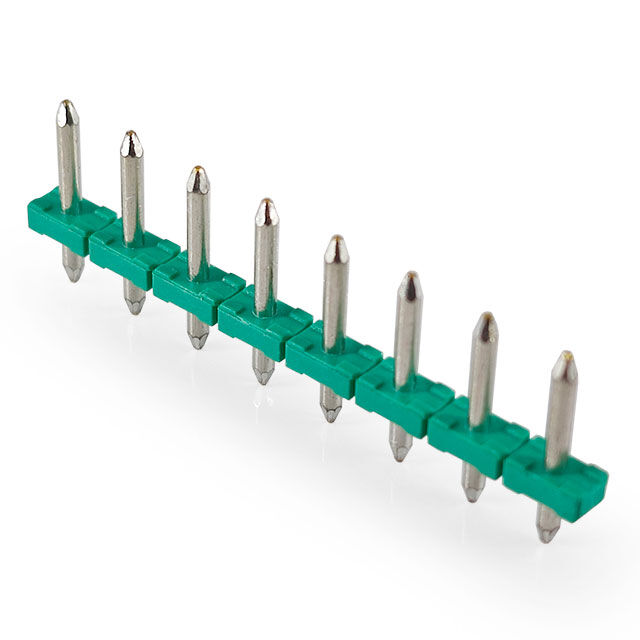

Terminal Block Header Male 8 Pins 5mm TH
The Terminal Block-Header Male 8 Pins 5mm TH is an 8-position PCB terminal block header designed to provide a reliable connection between compatible pluggable terminal blocks and printed circuit boards. It features eight male contacts arranged in a single level with a standard 5mm pitch and vertical orientation for through-hole PCB mounting.
Features:
- 8-position terminal block header.
- Male pin configuration.
- 5mm terminal pitch.
- Single-level construction.
- Vertical header orientation.
- Through-hole PCB mounting.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Terminal Block Header |
| Configuration | Male Pins |
| Number of Positions | 8 |
| Number of Levels | 1 |
| Pitch | 5mm |
| Mounting Type | Through-Hole |
| Header Orientation | Vertical |
| Termination | Solder |
| Soldering Technology | Wave Soldering |
| Current Rating | 12A |
| Rated Voltage | 300V |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel and Tin |
| Housing Material | PA Polyamide |
| Flammability Rating | UL94 V-0 |
| Contact Resistance | <15mΩ |
| Insulation Resistance | >1GΩ |
| Operating Temperature | -40°C to +105°C |
| Color | Green |
| Length | 40mm |
| height | 12.5mm |
| Thickness | 2.5mm |
Applications:
- PCB power connections.
- Industrial control equipment.
- Automation control systems.
- Power distribution connections.
- Electronic control panels.
- PCB-mounted terminal interfaces.
- Industrial electronic equipment.
- General-purpose wiring connections.
- Development and prototype boards.
- Electrical equipment requiring removable terminal connections.
Package Include:
1x Terminal Block-Header Male 8 Pins 5mm TH.
