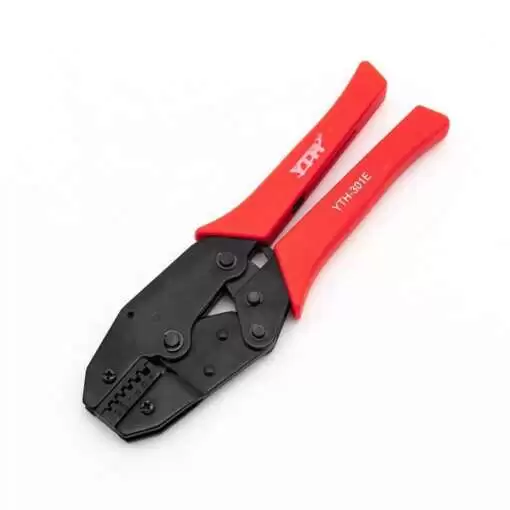

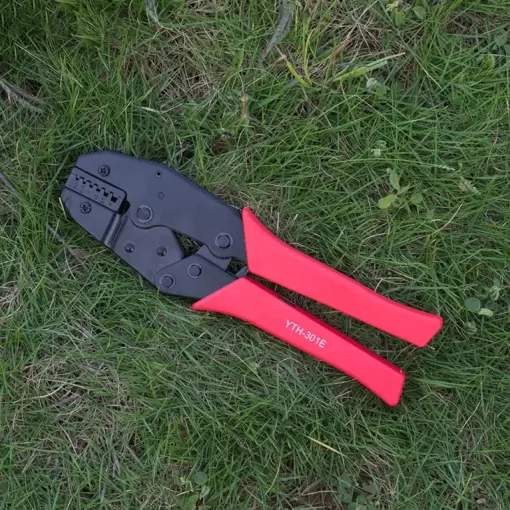

YTH-301E Premium Terminal Crimping Tool: Effortless Precision, Reliable Performance
Features:
- Ergonomic Anti-Slip Handle: Designed to reduce crimping effort by 50%, providing comfort and minimizing fatigue during extended use.

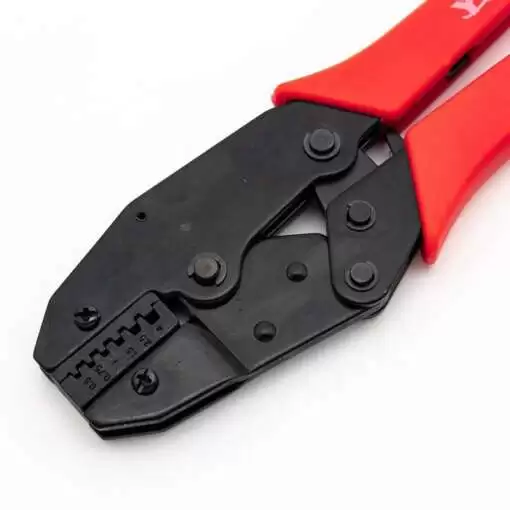

- Forged High-Quality Steel Crimp Die: Durable and sophisticated die for efficient crimping, reducing damage rates and ensuring successful crimps on the first attempt.
- Pressure Adjustment Device: Easily adjustable crimping force – looser in the “-” direction and tighter in the “+” direction, allowing for customized crimping pressure and improved quality.
- Release Locking Device: Allows quick termination of the crimping process, and ensures the segments can be released and fixed in case of incorrect operation, preventing terminal loss.
- Ratchet Mechanism: Guarantees consistent, high-quality crimps even with repeated pressure, ensuring reliability over time.
- Wide Crimp Capacity: Supports a variety of wire sizes (0.5–4.0mm²) and AWG ratings (12–22 AWG), making it versatile for various applications.
Specifications:
- Model: YTH-301E

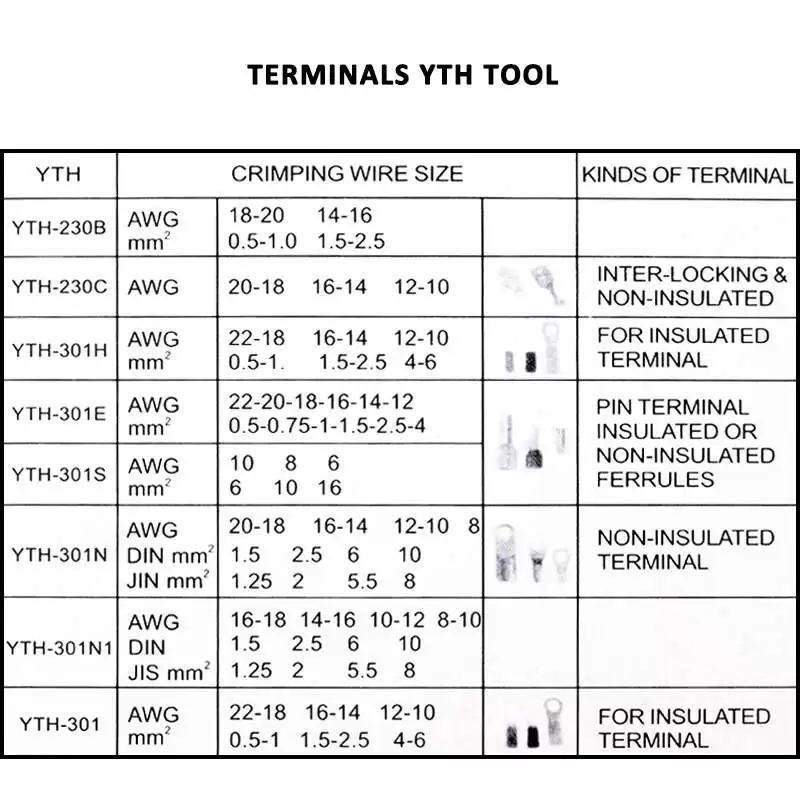

- Crimping Capacity: 0.5mm², 0.75mm², 1mm², 1.5mm², 2.5mm², 4mm²
- AWG Compatibility: 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG
- Length: 230mm
- Material: Forged high-carbon steel
- Handle: Ergonomically designed, anti-slip
- Pressure Adjustment: Yes (adjustable crimping force)
- Ratchet Mechanism: Yes
- Release Locking Device: Yes
Applications:
- Automotive wiring
- Electrical connections in machinery and equipment
- Electrical and electronics industry
- DIY projects and maintenance
