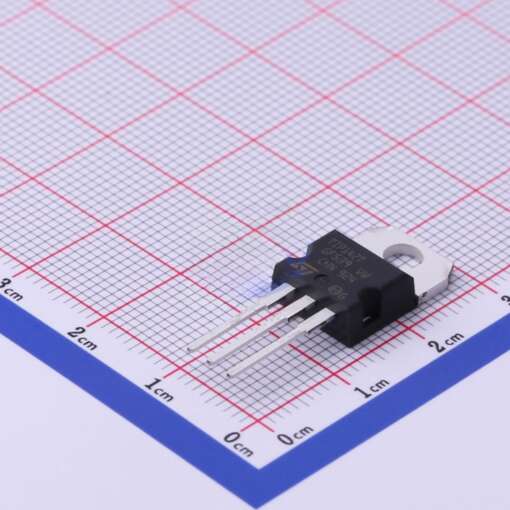

Tip142T 10 A, 100 V NPN Darlington Bipolar Power Transistor TO-220
10.00 EGP
Buy Now
Availability:
In Stock
SKU:300000007115
| Manufacturer |
STMicroelectronics |
| Mfr. Part # |
TIP142T |
| Package |
TO-220 |
| Datasheet |
STMicroelectronics TIP142T |
| Description |
TO-220 Darlington Transistors ROHS |
Specifications
| Physical |
| Case/Package |
TO-220 |
| Mount |
Through Hole |
| Number of Pins |
3 |
| Weight |
6.000006 g |
| Technical |
| Collector Base Voltage (VCBO) |
100 V |
| Collector Emitter Breakdown Voltage |
100 V |
| Collector Emitter Saturation Voltage |
2 V |
| Collector Emitter Voltage (VCEO) |
100 V |
| Current Rating |
10 A |
| Element Configuration |
Single |
| Emitter Base Voltage (VEBO) |
5 V |
| hFE Min |
500 |
| Max Collector Current |
10 A |
| Max Operating Temperature |
150 °C |
| Max Power Dissipation |
80 W |
| Min Operating Temperature |
-65 °C |
| Number of Elements |
1 |
| Polarity |
NPN |
| Power Dissipation |
90 W |
| Voltage Rating (DC) |
100 V |
