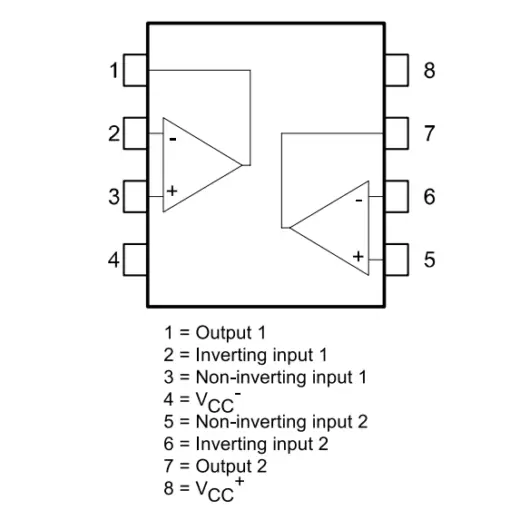

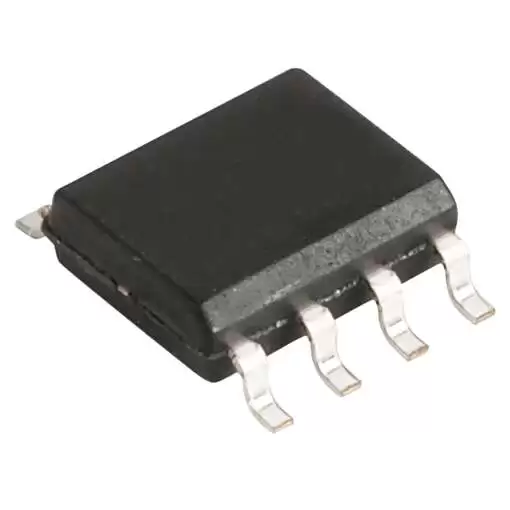

TL082CD SO-8 Operational Amplifier SMD IC
10.00 EGP
Availability:
Out of stock
SKU:3496300088645
Specifications
| Product Attribute |
Attribute Value |
| Product Category: |
Operational Amplifiers – Op Amps |
| Number of Channels: |
2 Channel |
| GBP – Gain Bandwidth Product: |
4 MHz |
| SR – Slew Rate: |
16 V/us |
| Vos – Input Offset Voltage: |
10 mV |
| Ib – Input Bias Current: |
400 pA |
| Supply Voltage – Max: |
36 V, +/- 18 V |
| Supply Voltage – Min: |
6 V, +/- 3 V |
| Operating Supply Current: |
1.4 mA |
| Output Current per Channel: |
40 mA |
| CMRR – Common Mode Rejection Ratio: |
86 dB |
| en – Input Voltage Noise Density: |
15 nV/sqrt Hz |
| Package/Case: |
SOIC-8 |
| Mounting Style: |
SMD/SMT |
| Minimum Operating Temperature: |
0°C |
| Maximum Operating Temperature: |
+ 70°C |
| Series: |
TL082 |
| Dual Supply Voltage: |
+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Input Type: |
Rail-to-Rail |
| Maximum Dual Supply Voltage: |
+/- 18 V |
| Minimum Dual Supply Voltage: |
+/- 3 V |
| Operating Supply Voltage: |
6 V to 36 V, +/- 3 V to +/- 18 V |
| Pd – Power Dissipation: |
680 mW |
| Supply Type: |
Single, Dual |
| Technology: |
BiFET |
| Voltage Gain dB: |
106.02 dB |
