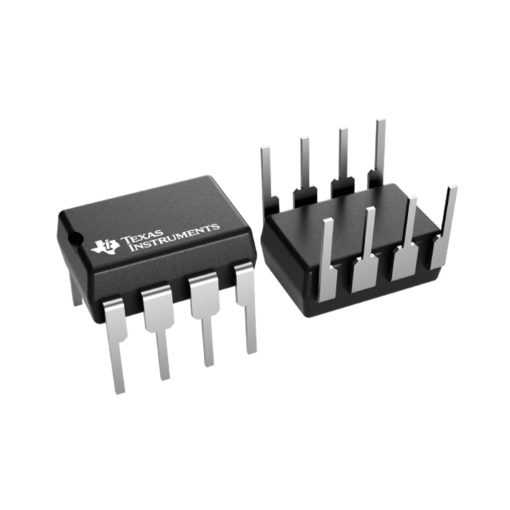

TLV2372IP Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output 5V 8mA PDIP-8
The TLV2372IP is a dual CMOS operational amplifier designed to provide both rail-to-rail input and rail-to-rail output operation, making it ideal for low-voltage and single-supply applications. Its ability to process signals close to both power rails allows designers to maximize dynamic range in battery-powered and embedded systems. The device offers low power consumption, low input bias current, and stable operation across a wide range of supply voltages.
This amplifier is widely used in sensor signal amplification, active filtering, voltage buffering, data acquisition systems, and portable electronic devices. The CMOS input stage enables high input impedance, making it suitable for interfacing with high-impedance sensors while maintaining accurate signal processing and low power operation.
Features:
- Rail-to-rail input capability.
- Rail-to-rail output capability.
- Dual operational amplifier in a single package.
- Low power consumption.
- High input impedance.
- Low input bias current.
- Suitable for single-supply and split-supply operation.
- Good AC performance.
- Compatible with battery-powered systems.
- Suitable for sensor interface applications.
- Stable operation over industrial temperature ranges.
- CMOS input architecture.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number | TLV2372IP |
| Number of Amplifiers | 2 |
| Package Type | PDIP-8 |
| Supply Voltage Range | 2.7V to 16V |
| Split Supply Range | ±1.35V to ±8V |
| Bandwidth (GBW) | 3 MHz |
| Slew Rate | 2.4 V/µs |
| Supply Current | 550 µA per channel |
| Input Offset Voltage | 4.5 mV max |
| Input Bias Current | 1 pA typical |
| Input Noise Voltage | 39 nV/√Hz |
| Operating Temperature Range | -40°C to +125°C |
| Output Type | Rail-to-Rail |
| Input Type | Rail-to-Rail |
| Mounting Type | Through Hole |
Pinout:

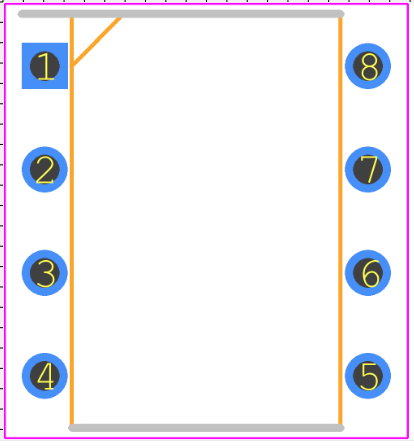

Footprint:
Applications:
- Sensor signal conditioning.
- Data acquisition systems.
- Active filters.
- Voltage followers and buffers.
- Battery-powered instruments.
- Portable medical devices.
- Industrial control systems.
- Analog front-end circuits.
- Photodiode amplifiers.
- Audio preamplifiers.
- Microcontroller analog interfaces.
- Measurement and monitoring equipment.
Package Included:
- 1x TLV2372IP Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output 5V 8mA PDIP-8.
