TPA3110 XH-A232 30W+30W Stereo Audio Amplifier Board 8-24VDC
The TPA3110 XH-A232 is a compact stereo audio amplifier board designed for DIY audio builds, speaker projects, and amplifier replacements. Based on the TPA3110 amplifier IC, it delivers 30W per channel (30W + 30W stereo) and runs from a wide DC 8–24V power supply.

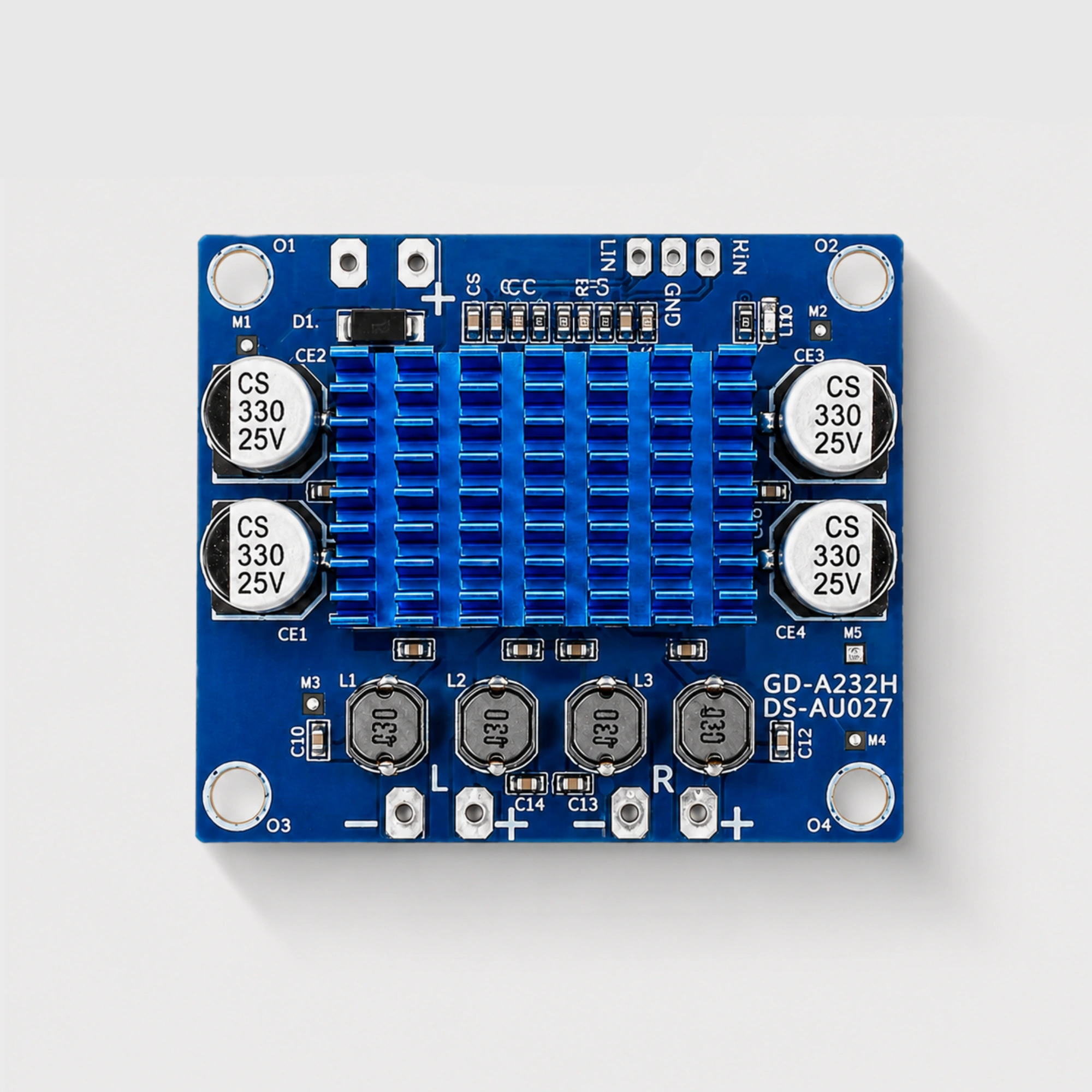

The board features clearly marked connection pads for easy wiring: left and right audio inputs (Lin, Rin) with ground (GND), power input (+/−), and dedicated speaker outputs with polarity markings (+R− and +L−). A large blue anodized aluminum heatsink covers the amplifier section for efficient heat dissipation, while four 330µF 25V electrolytic capacitors (CE1–CE4) and output filter inductors (L1–L4) help ensure stable, clean operation. Four corner mounting holes (O1–O4) allow secure installation in enclosures. The board measures 53 × 45 mm.
Features
- 30W + 30W stereo output power based on the TPA3110 amplifier IC
- Wide DC 8–24V operating voltage range
- Blue anodized aluminum heatsink for efficient heat dissipation
- 4 × 330µF 25V electrolytic capacitors (CE1–CE4) for stable power filtering
- 4 output filter inductors (L1–L4) for clean audio output
- Onboard diode (D1) at the power input section
- 4 corner mounting holes (O1–O4) for easy installation
Specifications
| Attribute | Details |
|---|---|
| Product Type | Stereo Audio Amplifier Board |
| Amplifier IC | TPA3110 |
| Model | XH-A232 |
| PCB Code | DS-AU027 |
| Output Power | 30W + 30W (Stereo) |
| Operating Voltage | DC 8–24V |
| Audio Inputs | Lin (Left Input), Rin (Right Input), GND |
| Power Connections | + / − pads |
| Speaker Outputs | Right (+R−), Left (+L−) |
| Filter Capacitors | 4 × 330µF 25V electrolytic (CE1–CE4) |
| Output Inductors | 4 (L1–L4) |
| Heatsink | Blue anodized aluminum heatsink |
| Mounting | 4 corner mounting holes (O1–O4) |
| Dimensions | 53 × 45 x 13 mm |
Applications
- DIY stereo amplifier and speaker building projects
- Home audio systems and desktop/powered speakers
- Replacement or upgrade of amplifier boards in existing speakers
- Audio projects powered by DC 8–24V sources
- General-purpose hobby and bench audio amplification
Package Content
- 1 x TPA3110 XH-A232 30W+30W Stereo Audio Amplifier Board 8-24VDC
