Trimmer Variable Capacitor 70pF 2Pin
Upgrade your RF, tuning, and precision electronic circuits with this high-quality 70pF 2-Pin Trimmer Variable Capacitor. Featuring a compact, durable brown plastic housing, this through-hole (DIP) component allows for fine-tuned capacitance adjustments via a top-access driver hole. Designed with a robust 2-pin layout for reliable PCB mounting, it provides stable performance and excellent mechanical durability for a wide range of tuning applications.
Features
- Compact Footprint
- Top-Adjustment Access
- Secure PCB Mounting
- Durable Construction

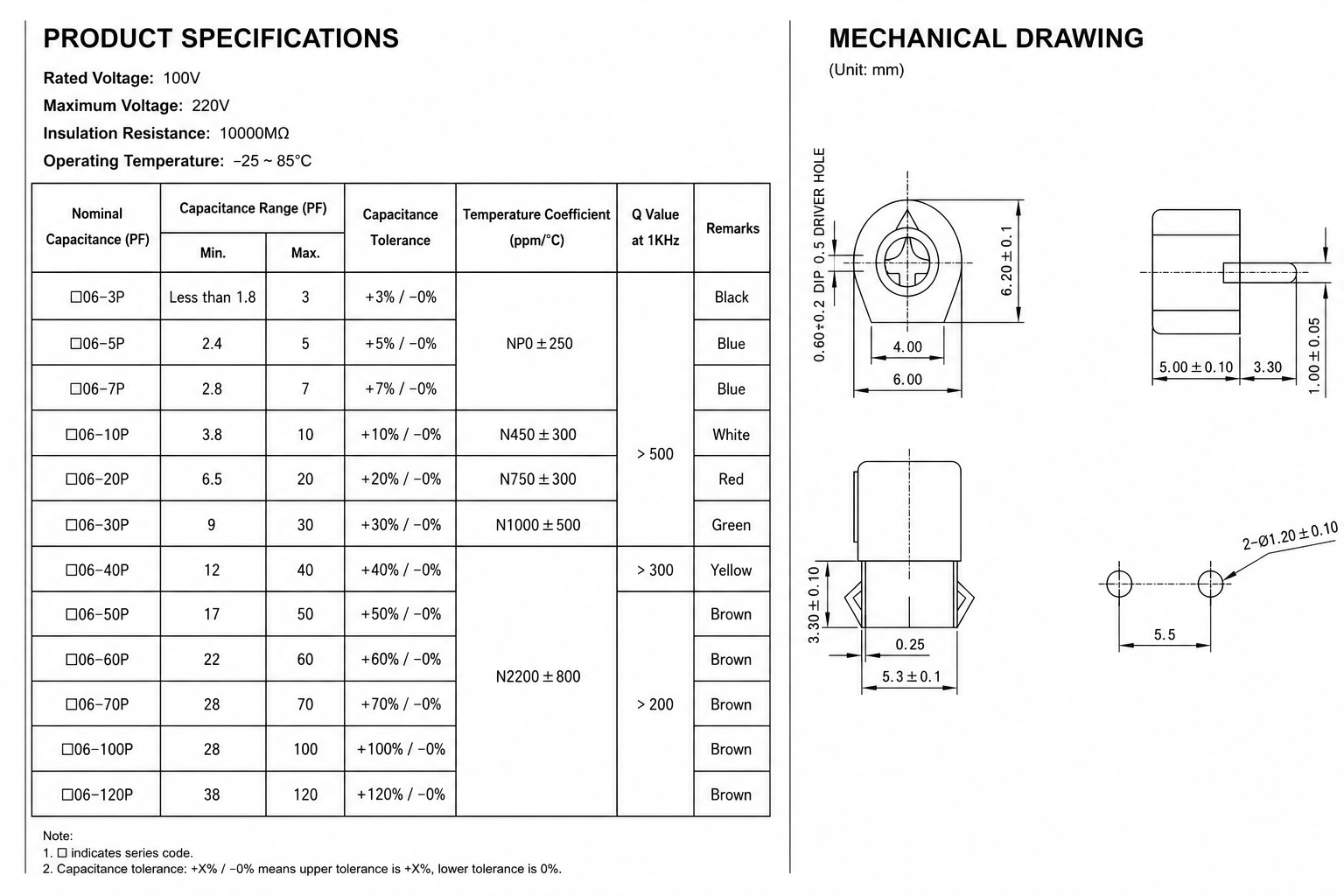

Specifications
| Specification Parameter | Value / Dimensions |
|---|---|
| Maximum Capacitance | 70 pF |
| Terminal / Pin Count | 2-Pin |
| Total Body Height | 6.00 mm |
| Body Width (Diameter profile) | 6.00 mm |
| Flat Base Width | 4.00 mm |
| Mounting Type | Through-Hole / DIP |
Applications
- RF transmitters and receivers
- Crystal oscillators and clock circuits
- LC resonant tuning networks
- Wireless communication equipment
- Precision calibration and test instrumentation
Package Content
- 1 x Trimmer Variable Capacitor 70pF 2Pin
