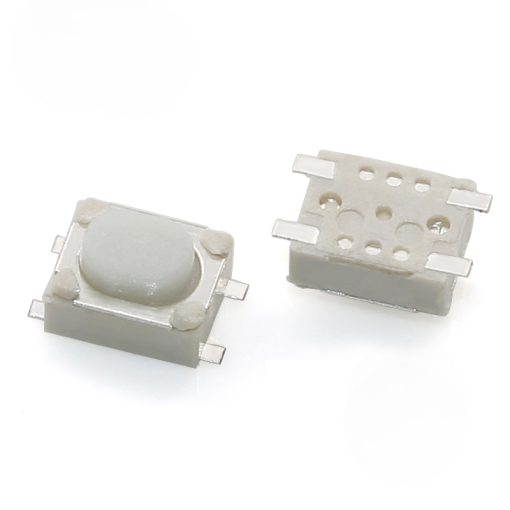

TS-3402 SMD Tactile Push Button 4 Pin 3.2×4.2×2.5mm
| Attribute | Details |
| Manufacturer | WNRCn |
| Model Number | TS-3507H |
| Component Description | SMD Tactile Push Button, 4 Pin, 3x4x2mm, Momentary SPST |
| Datasheet | Datasheet |
2.00 EGP
Buy NowTS-3402 SMD Tactile Push Button 4 Pin 3.2×4.2×2.5mm
The TS-3402 SMD Tactile Push Button 4 Pin 3.2×4.2×2.5mm 12VDC 50mA is a miniature momentary switch designed for compact PCB layouts and modern electronic devices. With a footprint of 3.2mm × 4.2mm and a height of 2.5mm, it provides a slightly higher profile compared to ultra-low variants while maintaining excellent space efficiency.
Features:
- Compact SMD tactile switch design.
- 4-pin configuration for stable PCB mounting.
- Normally open (momentary) operation.
- Clear tactile feedback for user interaction.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | TS-3402 |
| Switch Type | Tactile Push Button (Momentary) |
| Mounting Type | SMD (Surface Mount) |
| Number of Pins | 4 |
| Contact Type | Normally Open (NO) |
| Rated Voltage | 12VDC |
| Rated Current | 50mA |
| Operating Force | ~160gf to260gf |
| Travel Distance | ~0.2mm |
| Mechanical Life | ≥100,000 cycles |
| Dimensions | 3.2mm × 4.2mm × 2.5mm |
Applications:
- Consumer electronics buttons.
- Embedded system user interfaces.
- Remote controls and handheld devices.
- Industrial control panels.
- DIY electronics and prototyping.
- Wearable and compact electronics.
Package Include:
1x TS-3402 SMD Tactile Push-Button 4 Pin 3.2×4.2×2.5mm.
minimum order is 5
