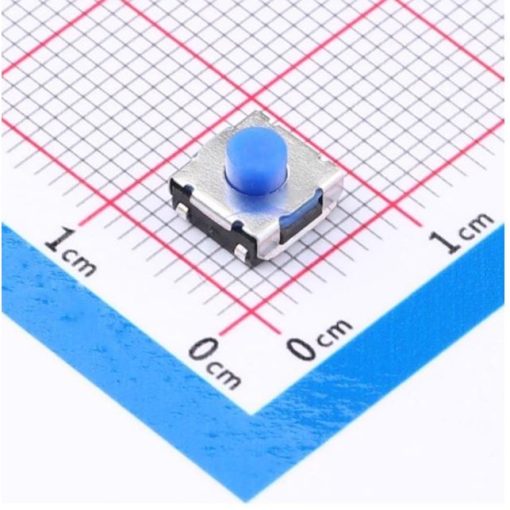

TS-G003219 SMD Tactile Switch 4 Pin 6.2×6.2×4.3mm
The TS-G003219 SMD Tactile Switch is a high-performance surface-mount switch designed to meet the needs of modern electronic devices requiring reliable and responsive user feedback. This switch is designed for seamless integration into PCB layouts and offers exceptional durability with a compact 6.2×6.2 mm footprint and a height of 4.3 mm. The blue actuator provides tactile feedback, delivering a noticeable click and confirming activation for the user.
Features:
- 4-pin surface-mount design for secure attachment and easy assembly on PCBs.
- Blue actuator providing tactile and audible feedback for improved user interaction.
- Dimensions: 6.2×6.2 mm with a height of 4.3 mm, perfect for compact designs.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | TS-G003219 |
| Mounting Type | Surface Mount |
| Actuator Color | Blue |
| Actuator Type | Tactile |
| Dimensions (L×W×H) | 6.2×6.2×4.3 mm |
| Operating Force | 260gf |
| Electrical Rating | 50mA @ 12VDC |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥100MΩ |
| Withstand Voltage | 250V AC |
| Operating Temperature | -20°C to +70°C |

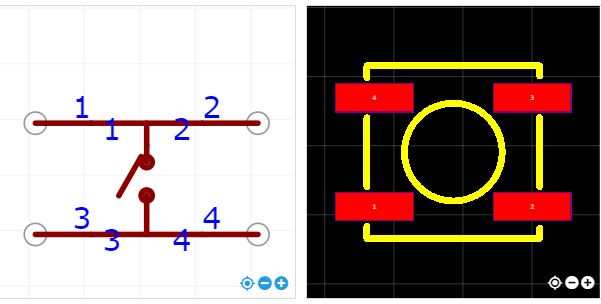

Foot print:
Applications:
- Consumer electronics Used in devices requiring user interaction such as remote controls, wearables, and smart devices.
- Industrial controls Integrated into control panels and machinery interfaces for tactile feedback.
- Automotive systems Suitable for automotive dashboard controls, switches, and displays.
- Medical and home appliances Provides reliable and responsive control for medical devices and home appliances.
