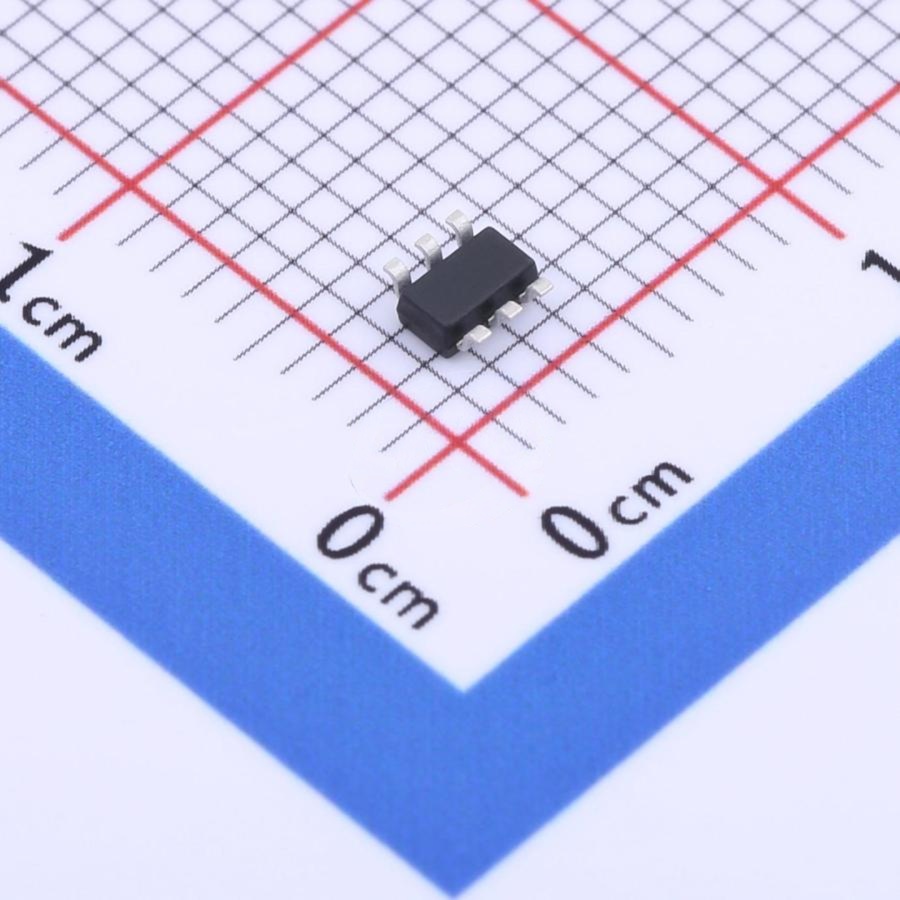

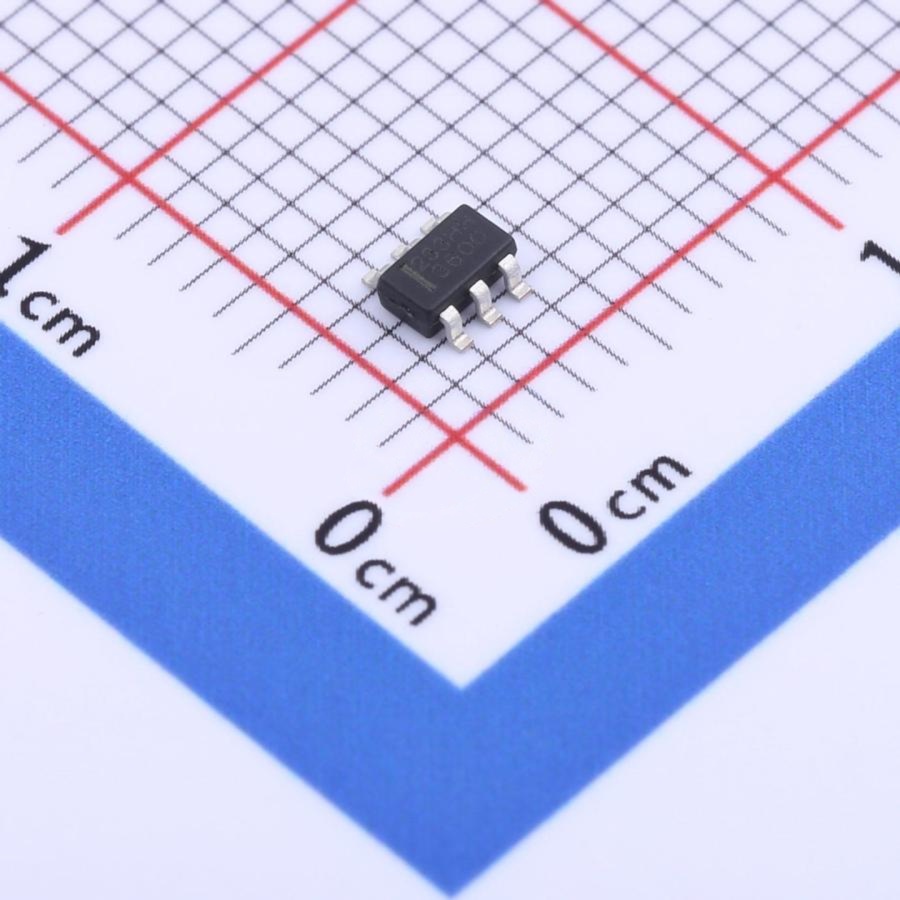

TONTEK TTP233H-HA6 SOT-23-6L Touch Sensor SMD
Replace mechanical buttons with the TTP233H-HA6 touch IC. This single-key sensor has ultra-low power use and a wide 2.4-5.5V operating range.
| Attribute | Information |
|---|---|
| Manufacturer | TONTEK |
| Part Number | TTP233H-HA6 |
| Type | 1-Key Touch Pad Detector IC |
| Datasheet | Download PDF |
12.00 EGP
In stockSKU 3496300129089
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
TONTEK TTP233H-HA6 SOT-23-6L Touch Sensor SMD
The TONTEK TTP233H-HA6 is a high-performance, single-key touch pad detector IC designed to replace traditional mechanical buttons with a sleek, durable touch interface. It features a built-in regulator for the touch sensor, ensuring stable and reliable operation across diverse conditions and with various pad sizes. With its extremely low power consumption and a wide operating voltage range, the TTP233H-HA6 is a versatile and efficient choice for a multitude of DC or AC applications. It also includes an auto-calibration function that adapts to environmental changes, maintaining consistent performance over its lifetime.
Features
- Wide Operating Voltage
- Ultra-Low Power Consumption
- Adjustable Sensitivity
- Configurable Output Modes
- Built-in Safety Features
- Automatic Calibration
- Fast Response Time
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TONTEK |
| Part Number | TTP233H-HA6 |
| Type | Touch Pad Detector |
| Operating Voltage | 2.4V ~ 5.5V |
| Standby Current | 1.5µA (Typical @ 3V) |
| Operating Current (Fast Mode) | 8µA (Max @ 3V) |
| Output Current | 8mA (Sink), -4mA (Source) |
| Response Time | ~160ms (Low Power Mode) |
| Operating Temperature | -40°C to +85°C |

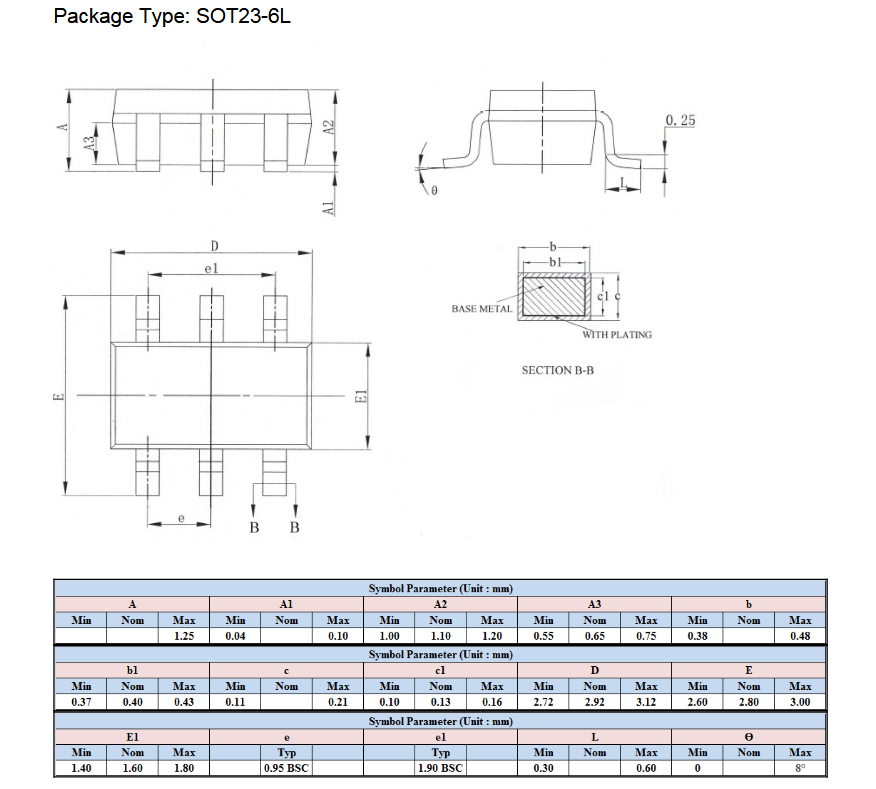

| Package / Case | SOT-23-6L |
Applications
- Consumer Products
- Portable Devices
- Smart Home Devices
- Industrial Control Panels
- Interactive Toys and Games
DataSheet
