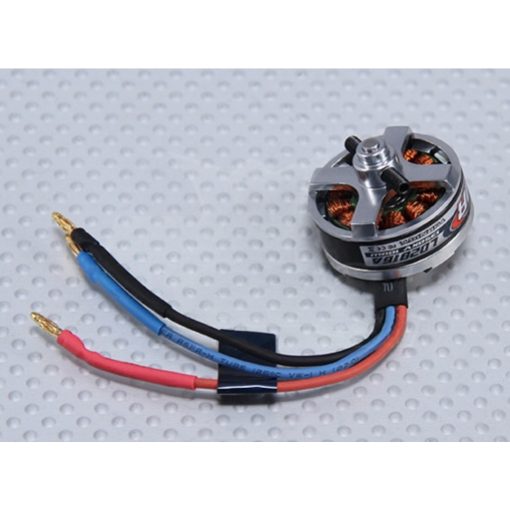

Turnigy LD2816A Brushless Outrunner 1350KV 100W
The Turnigy LD2816A is a compact and capable brushless outrunner motor designed for lightweight RC applications such as park‑flyers, small drones or experimental craft. With a KV rating of 1350 RPM/V, it is tuned to deliver balanced performance when powered by 2‑cell or 3‑cell LiPo battery packs. Although modest in size, the LD2816A is rated for a maximum continuous current of 10 A and up to 100 W output under proper conditions.
Features:
- 1350 KV (RPM per Volt) brushless outrunner motor.
- Rated for up to 10 A continuous current, approximately 120 W output potential.
- Designed for use on 2 S to 3 S LiPo battery packs.
- No‑load current of approx. 0.3 A at 7.4 V (2S) — indicates efficient operation.
Specifications:
| Parameter | Value |
|---|---|
| KV (RPM/V) | 1350 KV |
| Cell count (LiPo) | 2 S‑3 S |
| Max Continuous Current | 10 A |
| Power | 100 W |
| No‑load Current | 0.3 A @ 7.4 V |
| Dimensions (Can Ø × L) | Φ28 mm × 16 mm |
| Shaft Diameter | 3 mm |
| Weight | ~26 g |
Applications:
- Lightweight electric aircraft such as park‑flyers and foam models.
- Small multirotor drones where size and weight are critical.
- Experimental RC craft using 2S or 3S battery packs.
- Hobbyist builds requiring compact motors with decent torque for small props.

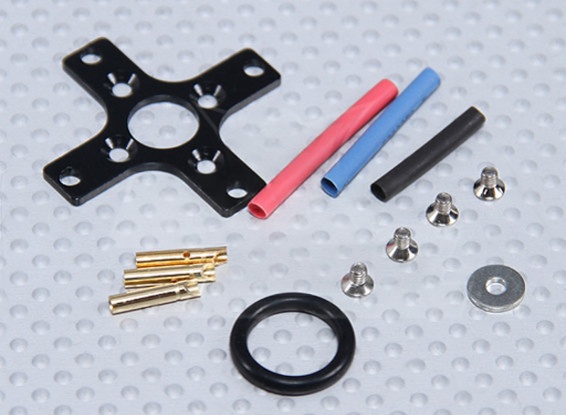

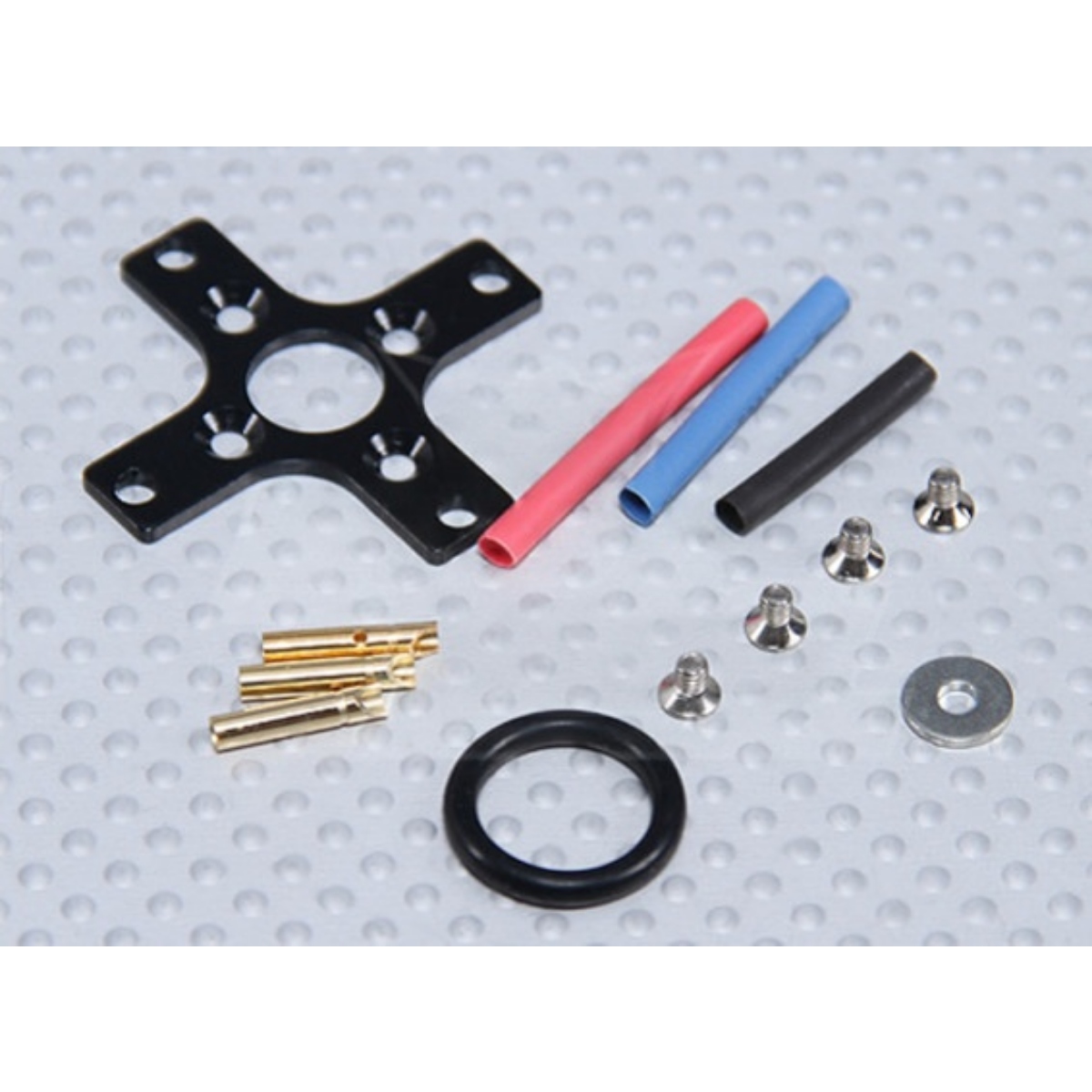

Package Include:
- 1x Turnigy LD2816A Brushless Outrunner 1350KV Motor.
- 1x Firewall Motor Mount (X-style).
- 2x Prop Saver O-Ring.
- 3x Male Bullet Connectors (for motor-to-ESC connection).
- 3x Heat Shrink Tubing pieces (Red, Blue, Black, for connector insulation).
- 1x Set of Mounting Screws and Washers.
