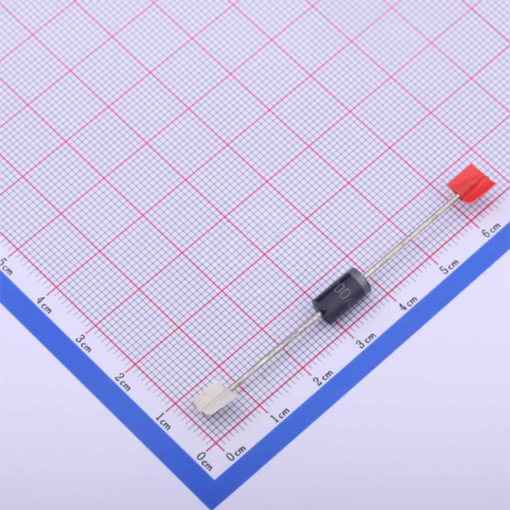

TVS DIODE 1.5KE200A Unidirectional 274V 5.47A
Unidirectional 1.5KE200A TVS diode (DO-27) 1500W surge rated protector; VRWM 171V, VBR 190–210V, Vc ≈274V at pulse; fast, low-leakage, high-temp solderable.
10.00 EGP
In stockSKU 3496300096268
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
1.5KE200A TVS DIODE Unidirectional 274V 5.47A
The 1.5KE200A is a unidirectional transient-voltage-suppressor (TVS) diode in a DO-27 axial package designed to protect circuits from high-energy transient overvoltages. It’s part of the 1.5KE series, rated for a 1500 watt peak pulse power capability (1 ms pulse) and constructed in a molded plastic case with a polarity band marking the cathode. The device is intended as a surge protection element that clamps harmful voltage spikes and redirects surge energy away from sensitive components.
The device is specified to have a nominal working standoff (VRWM) of 171 V and a controlled breakdown range (VBR) near 190–210 V (measured at the specified test current). Under the standardized 10×1000 µs surge waveform the part’s clamping voltage and pulse current characteristics are given so designers can predict the maximum voltage seen by protected circuitry during a surge. Thermal and soldering limits are stated to ensure reliable mounting and operation.
The datasheet emphasises fast response, low dynamic impedance and excellent clamping capability. It calls out high-temperature soldering capability (260°C, 10 s) and a wide operating temperature range (-55°C to +175°C), highlighting the part’s suitability where both electrical robustness and mechanical/thermal reliability are needed. Mechanical dimensions and lead length recommendations (0.375″, 9.5 mm) are provided for proper PCB mounting and heat-sinking practices.
Features:
- Plastic DO-27 package with UL 94V-0 flammability classification.
- 1500 W peak pulse capability (10 × 1000 µs waveform).
- Excellent clamping capability.
- Low dynamic impedance.
- Fast response time (typically listed as very fast from 0 V to VBR for unidirectional).
- Typical reverse leakage (IR) low (document notes very small µA levels above certain voltages).
- High-temperature soldering guaranteed (260°C / 10 s with specified lead length and tension).
- Molded plastic case; polarity marked by color band.
Specifications:
| Parameter (1.5KE200A, unidirectional) | Value (from PDF) |
|---|---|
| Working Peak-Reverse Voltage (VRWM): | 171 V. |
| Breakdown Voltage VBR (min @ IT): | 190.0 V. |
| Breakdown Voltage VBR (max @ IT): | 210.0 V. |
| Test Current (IT, unidirectional): | 1 mA. |
| Peak Pulse Current (Ipp) @ 10×1000 µs: | 5.47 A. |
| Clamping Voltage (Vc) @ Ipp: | 274 V. |
| Maximum Reverse Leakage (IR) @ VRWM: | 5 µA (document shows small µA value associated with this VRWM). |
| Peak Power Dissipation (PPK, 1 ms): | 1500 W (minimum). |
| Steady-State Power Dissipation (PD @ TL=75°C): | 6.5 W. |
| Peak Forward Surge Current (IFSM): | 200 A (8.3 ms single half-sine JEDEC). |
| Maximum Instantaneous Forward Voltage (VF): | 3.5 V (≤200 V VBR) / 5.0 V (VBR > 200 V) — note in datasheet. |
| Operating & Storage Temp. (TJ, TSTG): | −55°C to +175°C. |
| Package / Case: | DO-27 axial, molded plastic. |
Pinout Diagram:
Footprint:
Applications:
- DC Power Line Protection.
- AC/DC Power Supply Input Protection.
- Telecom Equipment Surge Suppression.
- Automotive ECU/Component Protection.
- Industrial Control System I/O Protection.
- Microprocessor/Microcontroller I/O Protection.
- Relay/Inductive Load Transient Suppression.
- Communication Port Protection (RS-232, RS-485, CAN).
- Data Line Protection (Ethernet, USB).
- Switching Power Supply Clamping.
- DC Motor Drive Transient Suppression.
- Renewable Energy System Protection (Solar/Wind).
- Test Equipment Input Protection.
- Transient Suppression in Consumer Electronics.
Package Contents:
- 1x 1.5KE200A TVS DIODE Unidirectional 274V 5.47A
Datasheet
| Weight | 4 g |
|---|---|
| Dimensions | 10 × 10 × 50 mm |
