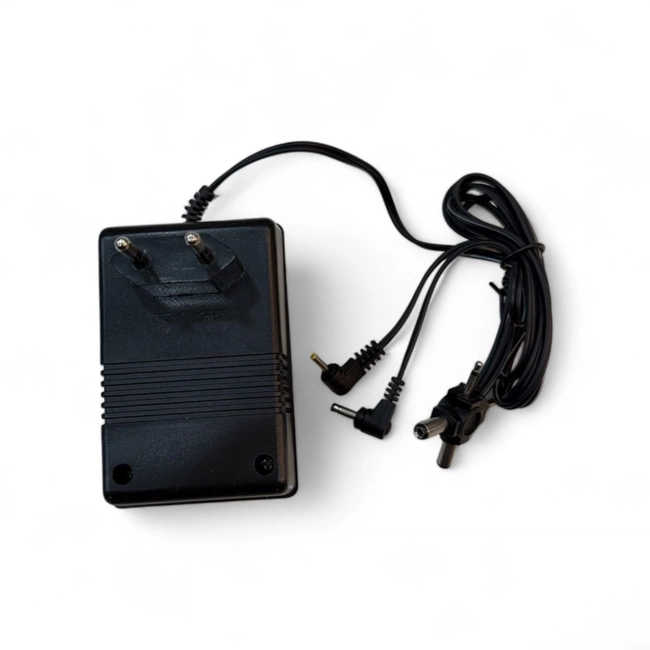

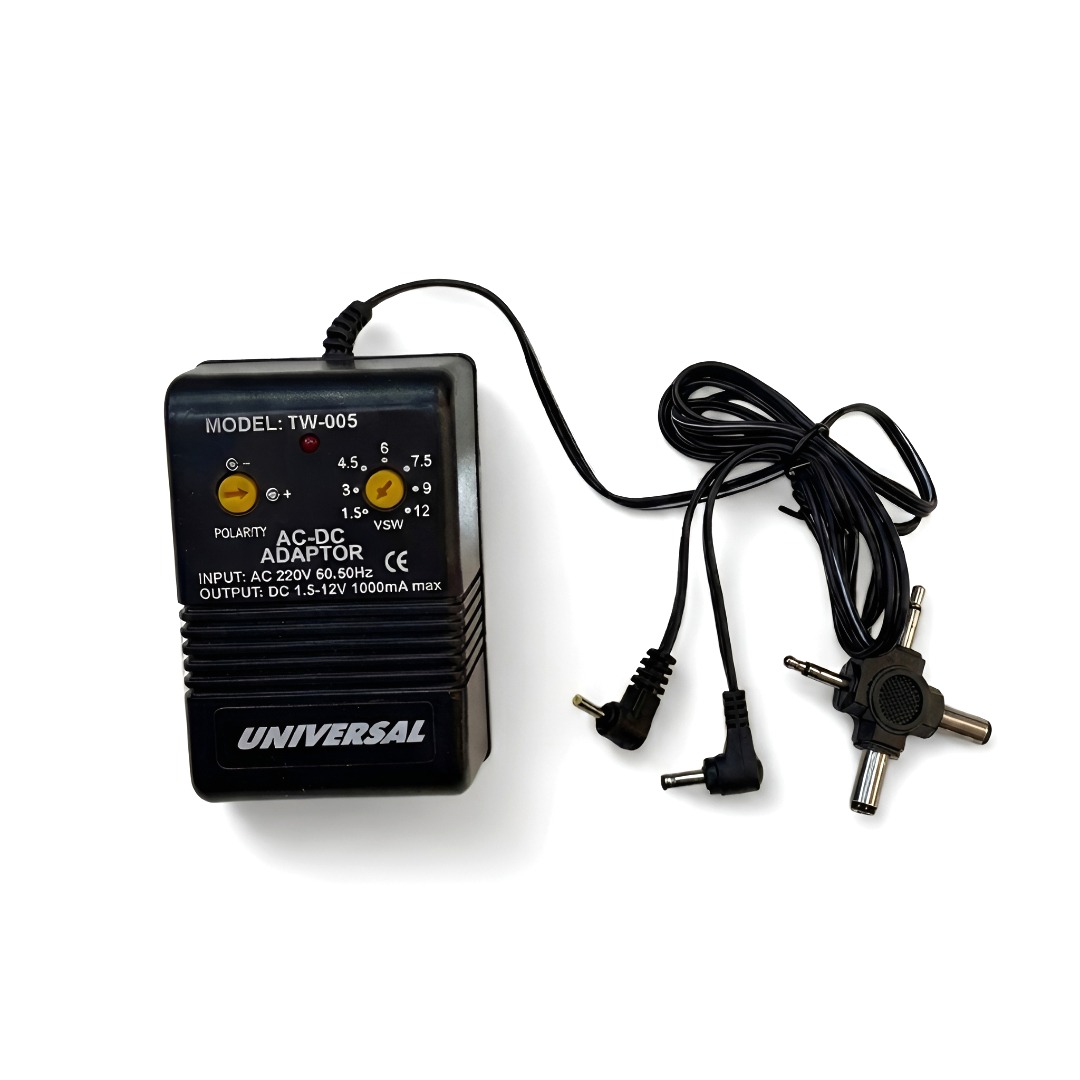

TW-005 Universal Adjustable Power Adapter 1.5-12V 1A
The TTW-005 Universal Adjustable Power Adapter 1.5-12V 1A is a versatile AC-to-DC power supply designed for a wide range of low-power electronic devices. Featuring selectable output voltages ranging from 1.5VDC to 12VDC, this adapter eliminates the need for multiple power supplies by providing adjustable voltage settings in a single compact unit.
Features:
- Adjustable output voltage selection via rotary dial.
- Interchangeable/cuttable plug tips for compatibility with various devices.
- Overload and short-circuit protection.
- Lightweight and portable design.
- Suitable for a wide range of low-voltage electronics.
Specifications:
| Parameter | Value |
|---|---|
| Product Model | TW-005 |
| Product Type | AC-DC Adjustable Power Adapter |
| Input Voltage | 220VAC |
| Input Frequency | 50-60Hz |
| Output Voltage | DC1.5-12V(Selectable) |
| Voltage Steps | 1.5V,3V,4.5V,6V,7.5V,9V,12V |
| Max Output Current | 1000mA |
| Polarity | Selectable(G-/G+) |
| Certification | CE |
| Housing Material | ABS |
| Output Cable Length | ~1.3m |
| LED Indicator | Red |

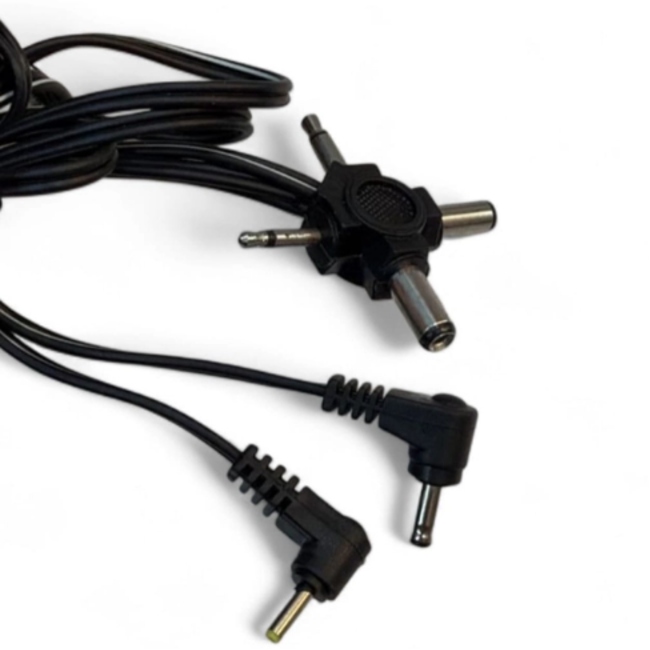

| Connector Set | 4-Way Cross Adapter + 2 Right-Angle Barrel |
| Connector Types | 5.5mm, 3.5mm, 2.5mm DC Barrel |
Applications:
- Power supply for Arduino and microcontroller development boards.
- Replacement adapter for routers, modems, and network equipment.
- Power source for CCTV cameras and security system components.
- Benchtop supply for electronics testing and prototyping.
- Adapter for LED strip lighting and decorative illumination.
- Power solution for audio pedals and small musical instruments.
- Replacement charger for blood pressure monitors and medical devices.
- General-purpose low-voltage DC power for DIY and repair projects.
Packages:
1x TW-005 Universal Adjustable Power Adapter 1.5-12V 1A
