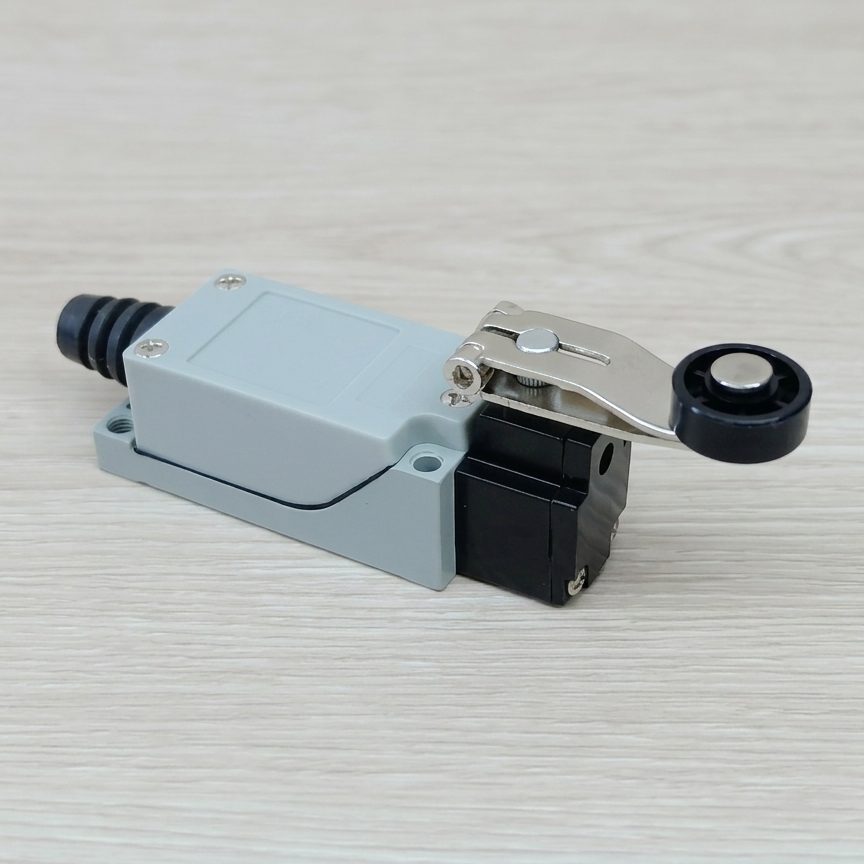

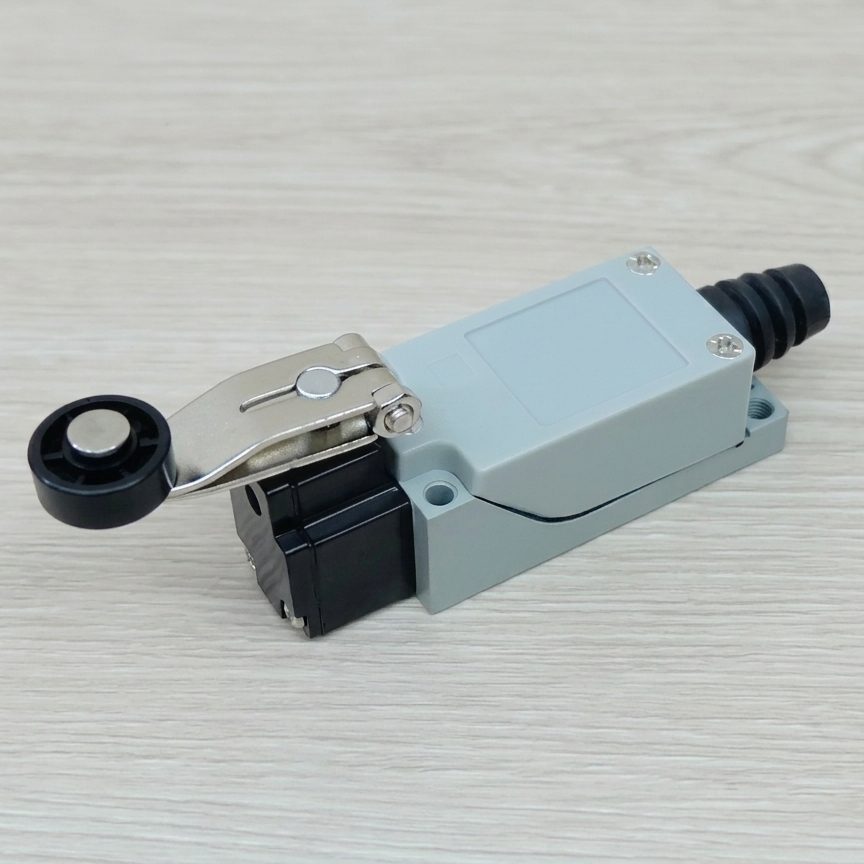

TZ-8104 Limit Switch Roller Arm Type
The TZ-8104 is a high-precision, double-circuit limit switch designed for industrial automation and mechanical position sensing. It features a rotary lever with a roller, providing smooth movement and reliable performance even under heavy repeated use. Encased in a rugged housing , it is built to withstand water, oil, and dust, making it ideal for harsh environments.
Features
- Double Circuit Design
- Robust Construction
- High Protection Rating
- Smooth Operation
- Easy Wiring
Specifications
| Attribute | Specification |
| Model | TZ-8104 |
| Actuator Type | Rotary Lever with Roller |
| Contact Configuration | 1NO + 1NC (SPDT) |
| Voltage Rating (AC) | 250V AC / 5A |
| Voltage Rating (DC) | 115V DC / 0.4A |

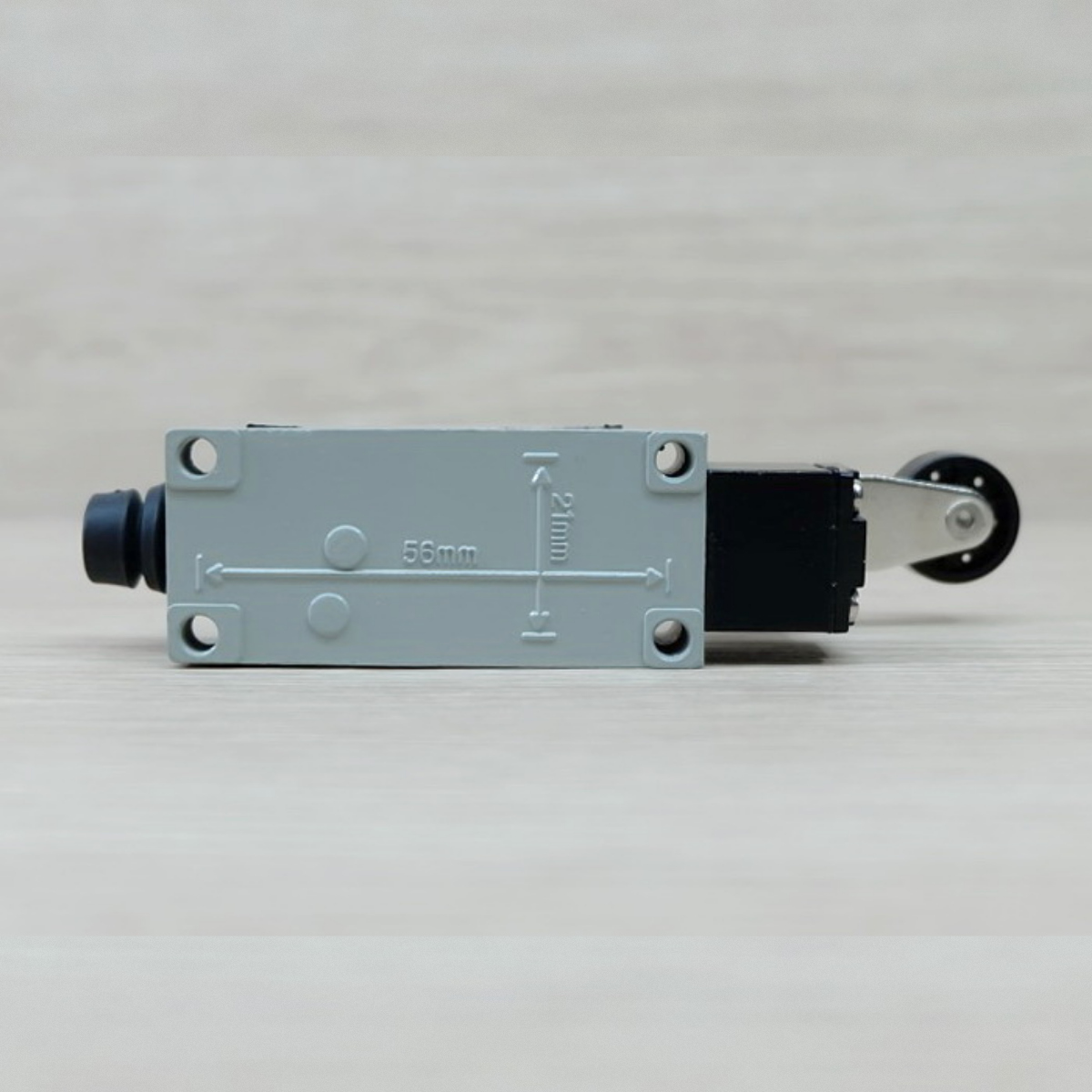

| Mounting Dimensions | 56mm x 21mm |
Applications
- Industrial Automation
- CNC Machinery
- Conveyor Systems
- Safety Interlocks
- Packaging Machinery
Package Content
- 1 x TZ-8104 Limit Switch Roller Arm Type
