UDN2981A 8-Channel Source Driver IC 5–50V 500mA DIP-18

The UDN2981A is an 8-channel source driver designed for high-side switching applications and for interfacing low-level logic with high-current loads. The device is suitable for systems using 5V logic, including TTL, Schottky TTL, DTL, and 5V CMOS. It supports load supply voltages up to 50V and provides an output source-current capability of up to 500mA. The device integrates input current-limiting resistors and output transient-suppression diodes, with the outputs activated by an active-high input

Features

8-channel source driver
500mA output source-current capability
TTL, DTL, PMOS, and CMOS compatible inputs
Transient-protected outputs
Output breakdown voltage to 50V
Active-high inputs
Integrated input current-limiting resistors
Integrated output transient-suppression diodes
18-pin DIP package for the UDN2981A
Suitable for 5V logic systems

Specifications

Specification	Value
Part Number	UDN2981A
Device Type	8-Channel Source Driver
Function	High-Side Source Driver
Number of Channels	8
Output Voltage Range	5 to 50 V
Maximum Output Source Current	-500 mA
Output Source Current Capability	500 mA
Continuous Output Current	120 mA per output under normal operating conditions at +50°C ambient temperature and 15 V supply
Input Compatibility	TTL, DTL, PMOS, CMOS
Logic System Compatibility	5 V logic systems
Input Activation	Active High
Input Voltage, Absolute Maximum (UDN2981)	25 V
Output Leakage Current	200 µA max. at V_IN = 0.4 V, V_S = 50 V, T_A = +70°C
Output Sustaining Voltage	35 V min. at I_OUT = -45 mA
Collector-Emitter Saturation Voltage	1.8 V max. at V_IN = 2.4 V, I_OUT = -100 mA
Collector-Emitter Saturation Voltage	1.9 V max. at V_IN = 2.4 V, I_OUT = -225 mA
Collector-Emitter Saturation Voltage	2.0 V max. at V_IN = 2.4 V, I_OUT = -350 mA
Input Current at V_IN = 2.4 V	140 µA typ., 200 µA max.
Input Current at V_IN = 3.85 V	310 µA typ., 450 µA max.
Output Source Current with Outputs Open	-350 mA min. at V_IN = 2.4 V, V_CE = 2.0 V
Supply Leakage Current	10 mA max. at V_IN = 2.4 V, V_S = 50 V
Clamp Diode Current	50 µA max. at V_R = 50 V, V_IN = 0.4 V
Clamp Diode Forward Voltage	1.5 V typ., 2.0 V max. at I_F = 350 mA
Turn-On Delay	1.0 µs typ., 2.0 µs max.
Turn-Off Delay	5.0 µs typ., 10 µs max.

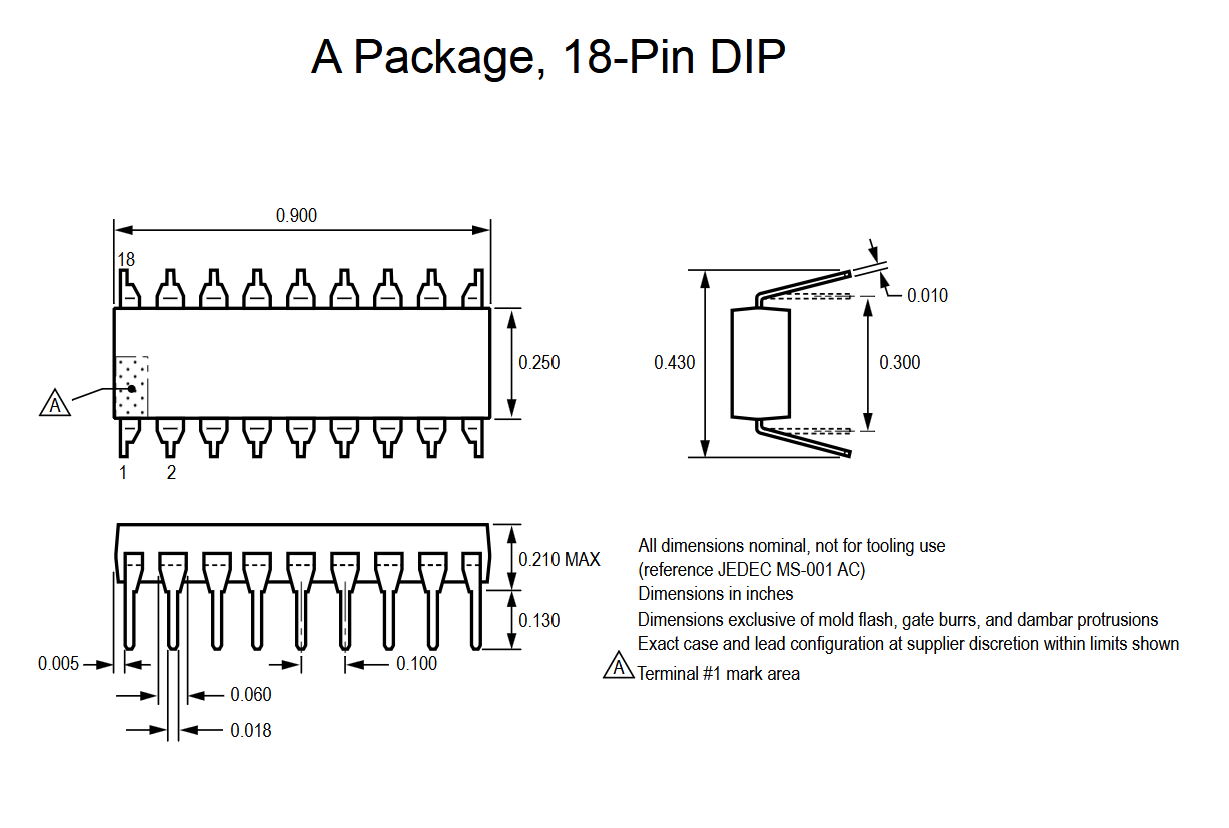

Package	18-Pin Plastic DIP
Package Suffix	A
Pb-Free Package	18-Pin DIP
Maximum Junction Temperature	150°C
Storage Temperature	-55°C to +150°C
