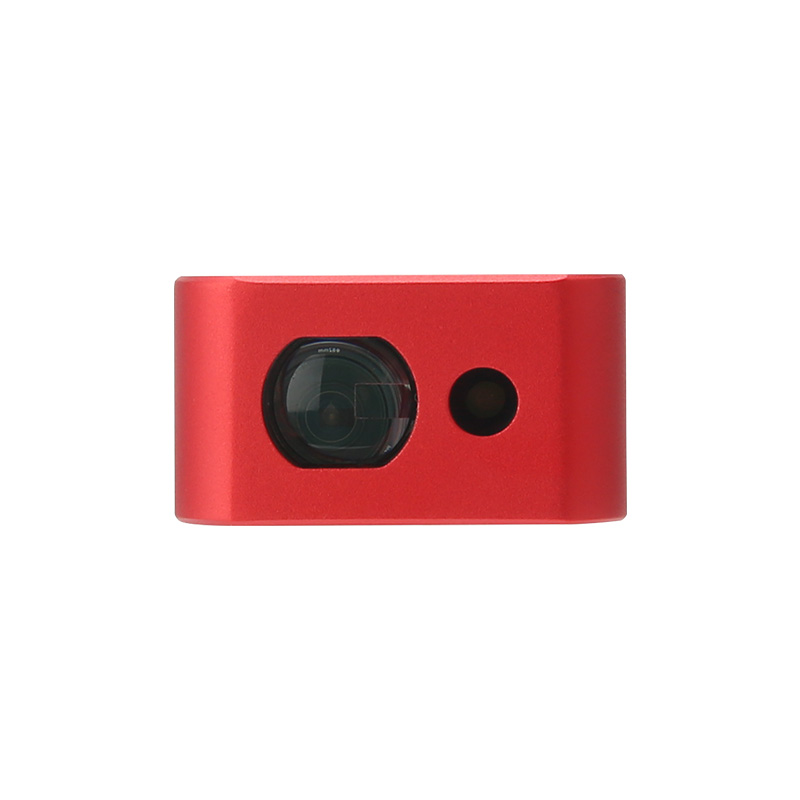

UNI-T LM60Mi Mini Laser Distance Meter
The UNI-T LM60Mi is a palm-sized laser distance meter that blends precision engineering with intuitive usability. Housed in a slim, metal-textured body barely larger than a matchbox, it slips easily into a pocket or clips onto a belt via its discreet hand-strap loop. A crystal-clear, backlit LCD presents distance readings in real time even in dimly lit spaces while simple, ergonomically placed buttons allow one-handed operation without fumbling or second-guessing. Inside, a high-accuracy optical sensor and refined laser emitter work together to deliver rapid, stable measurements across a broad working range, tacking on advanced Pythagorean calculations for indirect height and diagonal estimations without the need for added tools.
Powering the unit is a rechargeable lithium-ion cell that charges conveniently via Type-C connection, ensuring the meter is ready for hundreds of measurement cycles on a single charge. Its continuous-scan mode tracks dynamic changes in installation or alignment tasks, while automatic shut-off preserves battery life when left idle. Despite its miniaturized form, the LM60Mi feels robust in hand, offering a reassuring weight and tactile finish that resist slips and scuffs on job sites. With responsive feedback and instant readouts, this device turns complex layouts, leveling, and spatial planning into a smooth, one-step process making it a versatile companion for professionals and hobbyists alike.
Features:
- Multiple Measurement Modes: supports single-distance, continuous-scan, area, perimeter, volume and Pythagorean (indirect height/diagonal) calculations.
- High-Accuracy Optic Sensor: ensures measurement error is kept below ±2 mm.
- Self-Calibration: automatic zero-point adjustment for consistent precision.
- LCD Backlight: clear readout in low-light conditions.
- Auto Laser Shut-Off: conserves battery and meets safety class requirements.
- Auto Power-Off: extends standby life when idle.
- MAX/MIN Tracking: captures extreme values during continuous measurements.
- Unit Switch: toggle between meters, inches, and feet for versatile usage.
Specifications:
| Parameter | Specification |
|---|---|
| Measurement Range: | 0.05 – 60 m |
| Accuracy: | ±(2.0 mm + 5 × 10–5 × D) |
| Laser Class & Type: | Class II; 630–670 nm, < 1 mW |
| Unit Selection: | meters (m), inches (in), feet (ft) |
| Power Supply: | 3.7 V, 370 mAh rechargeable Li-ion battery |
| Battery Life: | Up to 8 000 measurements per full charge |
| Operating Temperature: | 0 °C – 40 °C |
| Storage Temperature: | –20 °C – 60 °C |
| Storage Humidity: | 20 % – 80 % RH |
| Product Dimensions (L × W × H): | 86.5 × 36.5 × 19.5 mm |
| Net Weight: | 75 g |
| Auto Laser Shut-Off: | Yes |
| Auto Power-Off: | Yes |
Applications:

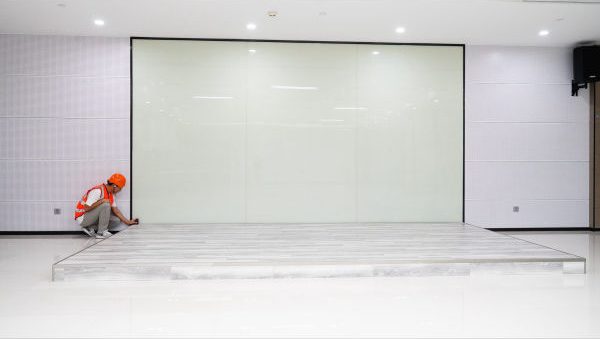

- Interior Design and Renovation.
- Construction and Carpentry.
- Real Estate and Property Management.
- DIY Projects and Home Improvement.

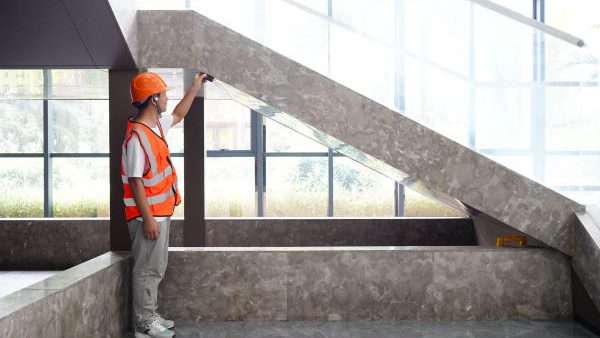

- Engineering and Surveying.
- HVAC and Electrical Installation.
- Warehousing and Logistics.
Package Include:
- 1x UNI-T LM60Mi Mini Laser Distance Meter unit
- 1x USB Type-C charging cable
- 1x User manual
- 1x Hand strap
- 1x Gift box packaging
