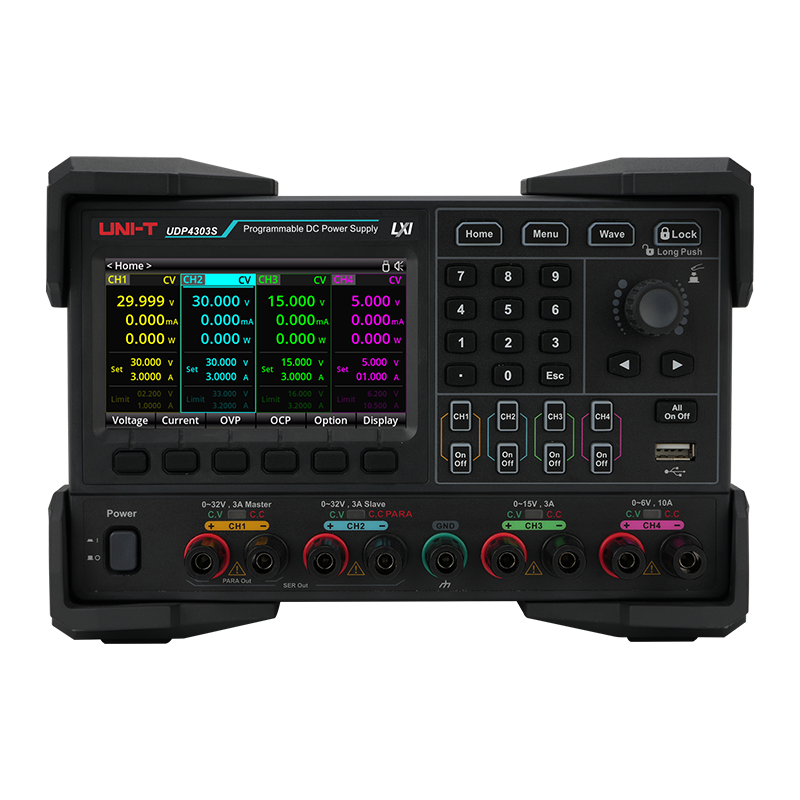

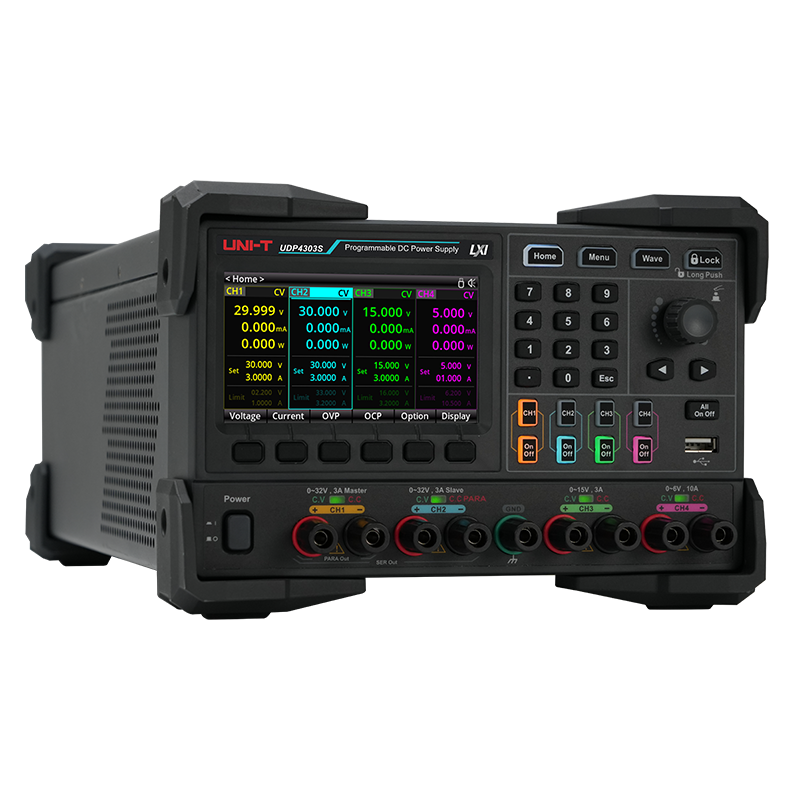

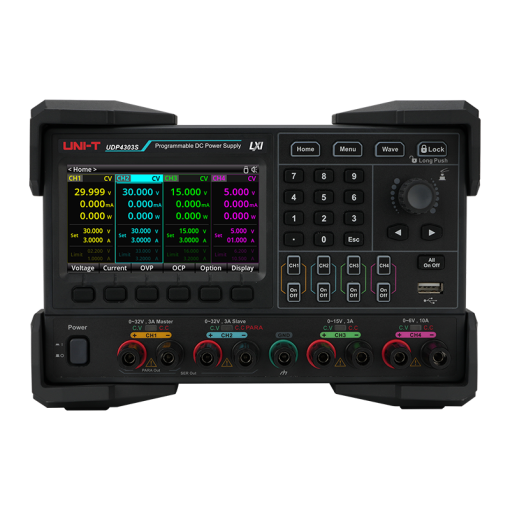

UNI-T UDP4303S Programmable Linear DC Power Supply 4Ch 297W 32V/10A
The UNI-T UDP4303S is a 4-channel, 297W programmable linear DC power supply with isolated outputs, 1mV programming resolution, and remote control.
68,500.00 EGP
In stockSKU 3496300163809
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
UNI-T UDP4303S Programmable Linear DC Power Supply 4Ch 297W 32V/10A
The UNI-T UDP4303S Programmable Linear DC Power Supply is a precision bench power supply designed for electronics development, circuit testing, laboratory measurements, and automated production testing. Its four electrically isolated output channels provide flexible voltage and current combinations, allowing engineers to power multiple circuits or devices simultaneously. With a total rated output power of 297W, the UDP4303S combines low output ripple, accurate voltage and current control, and extensive programming functions in a compact bench instrument.
Features:
- Four electrically isolated and independently controlled output channels.
- Total rated output power of 297W.
- Two 0–32V/3A outputs, one 0–15V/3A output, and one 0–6V/10A output.
- Internal series and parallel operation for Channels 1 and 2.
- Remote sensing support on all four channels for voltage-drop compensation.
- Voltage programming resolution of 1mV and current programming resolution of 0.1mA.
- Low output ripple and noise of less than 350μVrms and 2mVpp under specified conditions.
- Fast transient response of less than 50μs under the manufacturer’s specified test conditions.
- 4.3-inch TFT-LCD with 480×272 resolution.
- Programmable list output for creating timed voltage and current sequences.
- Waveform display for observing output behavior.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model | UDP4303S |
| Product Type | Programmable linear DC power supply |
| Output Channels | 4 isolated channels |
| Total Rated Output Power | 297W |
| Channel 1 Output Voltage | 0–32VDC |
| Channel 1 Output Current | 0–3A |
| Channel 2 Output Voltage | 0–32VDC |
| Channel 2 Output Current | 0–3A |
| Channel 3 Output Voltage | 0–15VDC |
| Channel 3 Output Current | 0–3A |
| Channel 4 Output Voltage | 0–6VDC |
| Channel 4 Output Current | 0–10A |
| Channel Isolation | Electrical isolation between all four channels |
| Series Operation | Supported internally for Channels 1 and 2 |
| Parallel Operation | Supported internally for Channels 1 and 2 |
| Remote Sensing | 2-wire and 4-wire sensing; all four channels supported |
| Constant-Voltage Power Regulation | Less than 0.01%+2mV |
| Constant-Voltage Load Regulation | Less than 0.01%+2mV |
| Constant-Current Power Regulation | Less than 0.01%+250μA |
| Constant-Current Load Regulation | Less than 0.01%+250μA |
| Voltage Ripple and Noise | Less than 350μVrms / 2mVpp, measured over 20Hz–20MHz under specified conditions |
| Current Ripple | Less than 2mArms |
| Transient Response Time | Less than 50μs under the specified load-change test |
| Command Processing Time | Less than 10ms |
| Voltage Programming Resolution | 1mV |
| Current Programming Resolution | 0.1mA |
| Voltage Readback Resolution | 1mV |
| Current Readback Resolution | 0.1mA; 1μA in low-current measurement mode |
| Current Sampling Rate | Up to 8kSa/s |
| Programming Voltage Accuracy, 1 Year | Channels 1–3: ±(0.03%+8mV); Channel 4: ±(0.04%+4mV), at 25±5°C |
| Programming Current Accuracy, 1 Year | Channels 1–3: ±(0.15%+5mA); Channel 4: ±(0.15%+10mA), at 25±5°C |
| Readback Voltage Accuracy, 1 Year | Channels 1–3: ±(0.03%+8mV); Channel 4: ±(0.08%+3mV), at 25±5°C |
| Readback Current Accuracy, 1 Year | Channels 1–3: ±(0.15%+5mA); Channel 4: ±(0.15%+10mA), at 25±5°C |
| Low-Current Measurement Accuracy | ±(0.25%+28μA) under specified constant conditions |
| Voltage Programming Response, Channels 1–3 | Rise: less than 50ms at full load and less than 30ms without load; fall: less than 50ms at full load and less than 400ms without load |
| Voltage Programming Response, Channel 4 | Rise: less than 15ms at full load and less than 14ms without load; fall: less than 20ms at full load and less than 100ms without load |

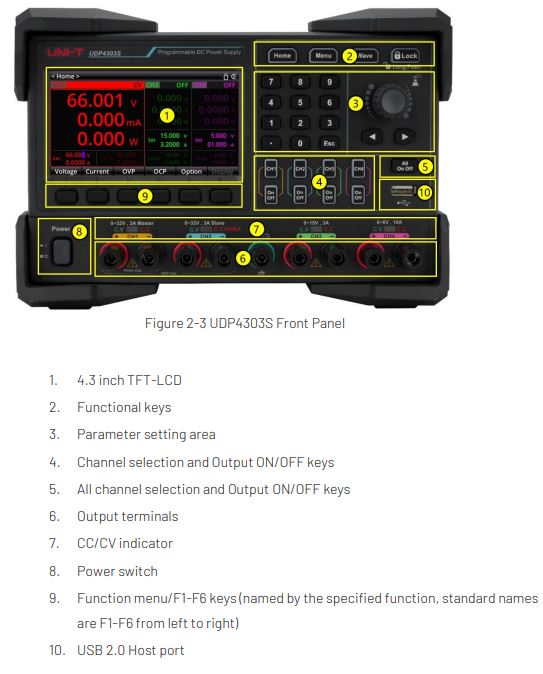

| Display | 4.3-inch TFT-LCD |
| Display Resolution | 480×272 pixels |
| Programmable Storage | At least 10 groups |
| Output Terminals | Front and rear panels |
| Protection Functions | OVP, OCP, OTP, and remote-sense protection |
| OCP Response-Time Setting | 0–1000ms |
| Output Functions | List output, timer, delay, trigger, monitor, waveform display, and recorder |

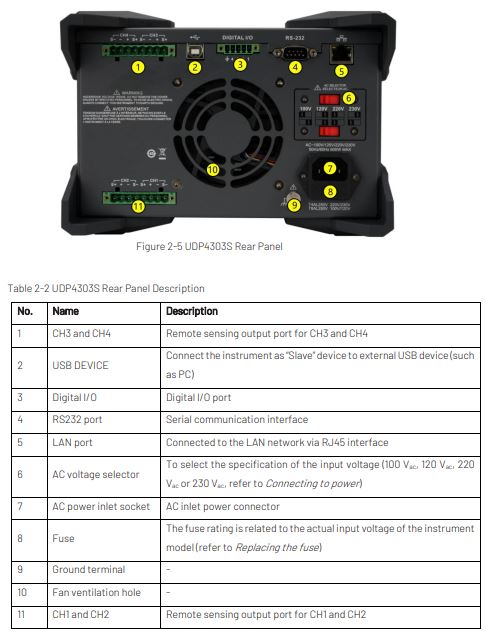

| Communication Interfaces | USB Host, USB Device, RS-232, LAN, and Digital I/O |
| Remote Control Protocol | SCPI |
| Input Voltage | Selectable 100VAC, 120VAC, 220VAC, or 230VAC, each ±10% |
| Input Frequency | 50/60Hz |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -10°C to +60°C |
| Operating Humidity | 20–80%RH, non-condensing |
| Maximum Operating Altitude | 2000m |
| Dimensions (W×H×D) | 225×159.6×445mm |
| Color | Black |
Configuration:
Applications:
- Electronics research and development.
- Laboratory circuit prototyping and debugging.
- Powering multiple isolated circuits during testing.
- Microcontroller, embedded system, and PCB development.
- Testing low-voltage electronic modules and components.
- Automated production testing and quality assurance.
- Programmable voltage and current sequence testing.
- Transient-response and load-behavior evaluation.
- Low-current measurement and device characterization.
- Long-duration voltage, current, and power monitoring.
- Engineering education and electronics laboratory experiments.
- Computer-controlled test systems using SCPI commands.

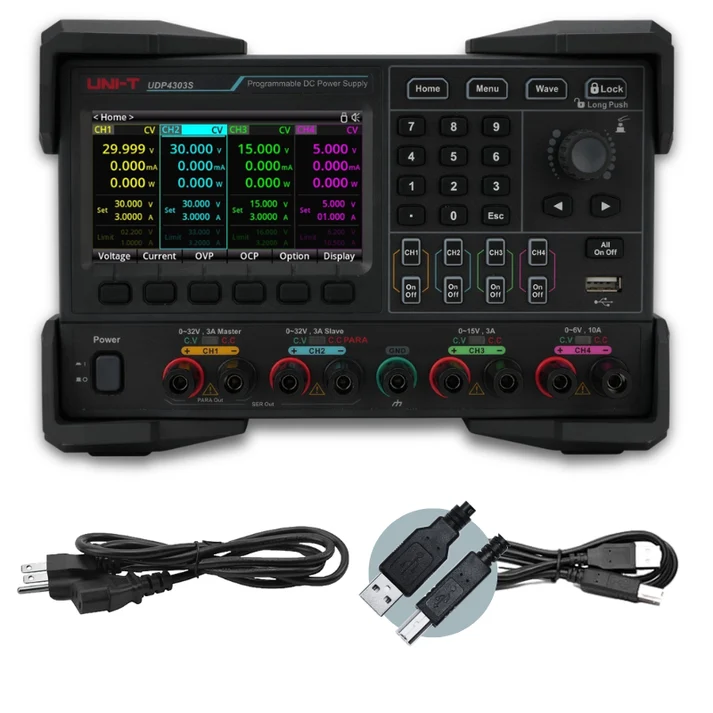

Package Include:
- 1x UNI-T UDP4303S Programmable Linear DC Power Supply.
- 1x AC Power Cord.
- 1x Factory Calibration Report.
- 1x USB Cable.
