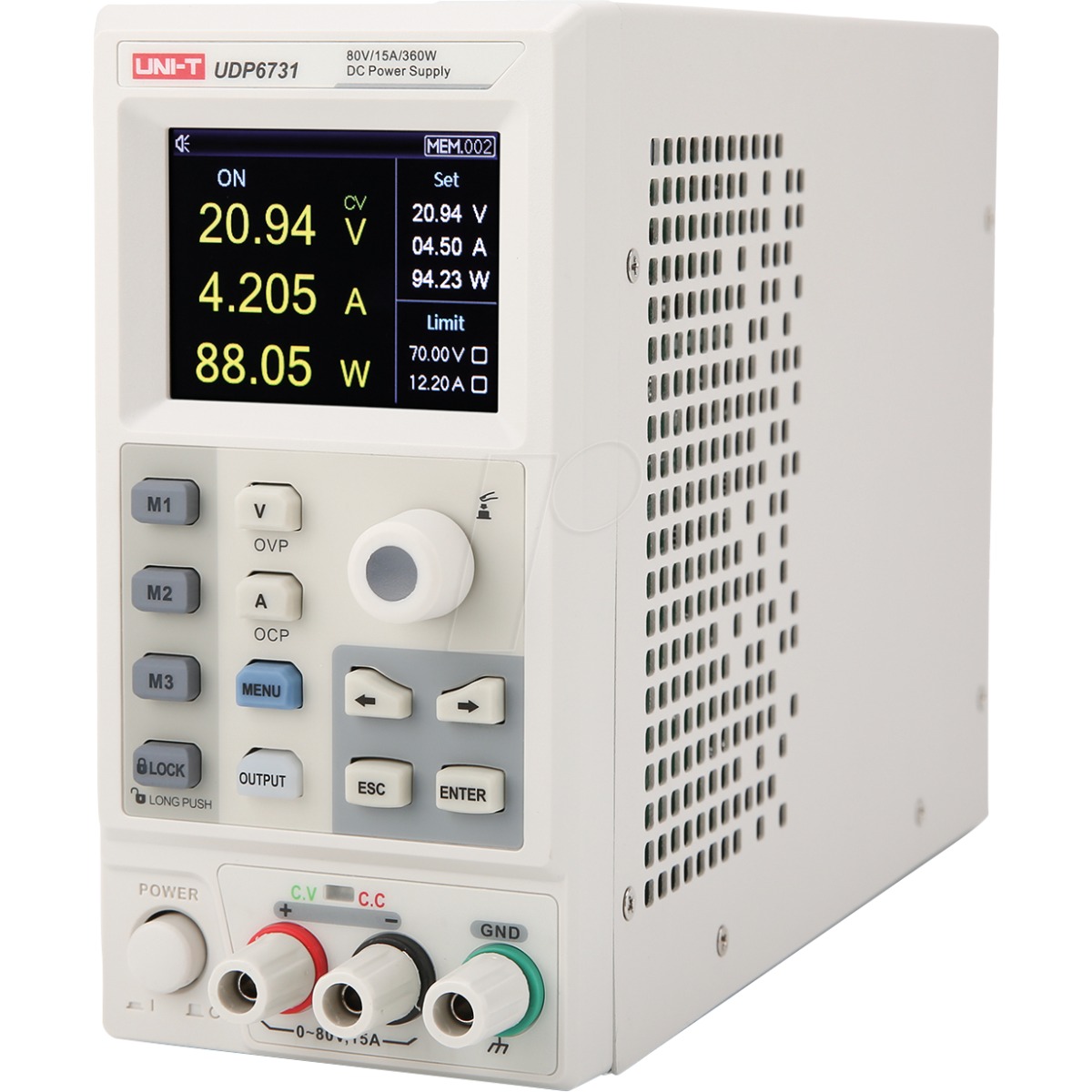

UNI-T UDP6731 DC Power Supplies
The UNI-T UDP6731 is a single-channel programmable switching DC power supply with a 360W output rating and a wide adjustable output range of 0 to 80V and 0 to 15A. Its wide-range output allows voltage and current to be adjusted according to the power envelope, making it suitable for powering and testing a broad range of electronic circuits, boards, batteries, and industrial equipment. The unit provides 10mV voltage resolution and 1mA current resolution, with front-panel control and simultaneous voltage/current display.
Designed for laboratory and engineering environments, the UDP6731 provides programmable list operation, stored output configurations, remote sensing, and RS-232 communication with SCPI command support. Protection functions include over-voltage, over-current, and over-temperature protection. These capabilities make it suitable for product development, board debugging, battery-pack testing, production test fixtures, telecom and industrial power systems, and automated test setups.
Features:
- Programmable single-channel switching power supply.
- Wide-range adjustable DC output.
- Constant-power wide-range operation.
- Programmable list mode.
- Trigger delay function.
- 600 memory groups for stored configurations.
- Remote sense compensation.
- RS-232 communication with SCPI command support.
- Over-voltage protection.
- Over-current protection.
- Over-temperature protection.
- 4-digit dual LED display.
- Simultaneous voltage and current readout.
- Front-panel knob and direct numeric entry.
- Load- and temperature-controlled smart fan.
- Software calibration capability.
- Suitable for automated test environments.
Specifications:
| Feature | Specification |
|---|---|
| Model Number | UDP6731 |
| Channels | 1Ch |
| Output Voltage | 0~80V |
| Output Current | 0~15A |
| Total Power | 360W |
| Max V Resolution | 10mV |
| Max A Resolution | 1mA |
| Connectivity | RS-232 |
| Setting Accuracy |
<0.1%+10mV <0.3%+10mA
|
| Programmable | true |
| Warranty | 3 years |
| Shipping Dimensions (W×H×D) | 87×174×255mm |
| Shipping Weight | 2.5Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord |
Applications:
- Electronics laboratory power.
- PCB development and testing.
- Circuit debugging.
- DC motor and actuator testing.
- Battery pack research and testing.
- 48V and 60V telecom equipment testing.
- Industrial DC power systems.
- Solar inverter auxiliary-power testing.
- GaN and SiC power electronics development.
- Automated production testing.
- Power supply and converter development.
- Embedded system testing.
- Research and educational laboratories.

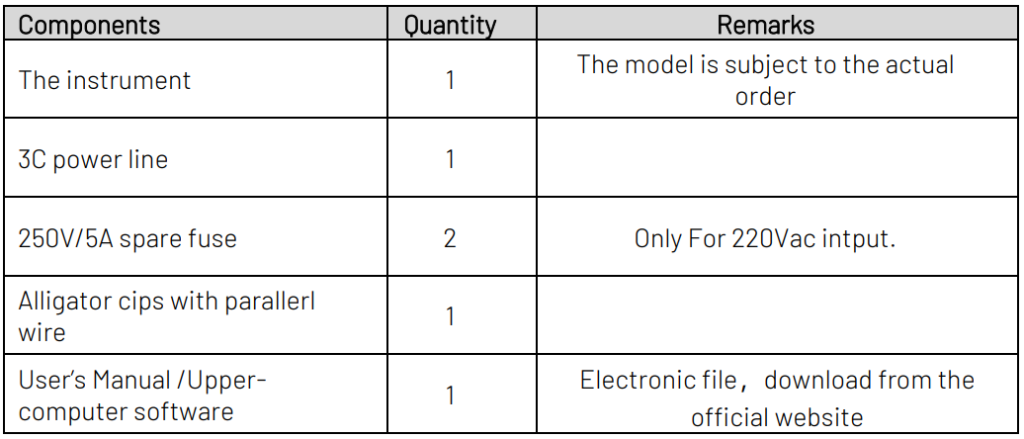

Package Includes:
