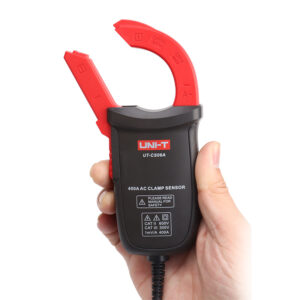

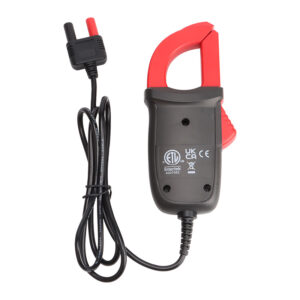

UNI-T UT-CS06A 400A AC Current Clamp Sensor

UT-CS06A 400A AC Current Clamp is a current entry-level sensor for AC Current measurement of multimeter/data logger.

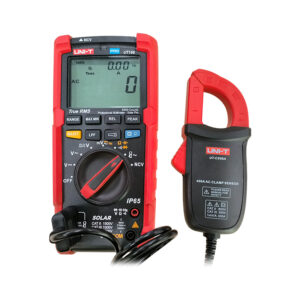

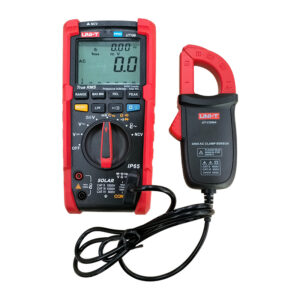

It suits most UNI-T multimeters and features a small-sized and convenient-to-use design, which is an ideal tool to extend the current ranges for the Multimeters.

Features of UT-CS06A 400A AC Current Clamp Sensor

Certificates: CE, UKCA

  • Compact design, easy to operation
  • 400A AC current measurement
  • AC A Frequency: 50 Hz to 400 Hz
  • Output ratio: 1mV/A
  • Clamp Jaw size: 28mm
  • Suitable for most UNI-T multimeters
  • Drop protection: 1m
  • Overvoltage category: CAT Ⅲ 300V/CATII 600V

Specifications of UT-CS06A 400A AC Current Clamp Sensor

Technical SpecificationsUT-CS06A
Dimension158*65*33mm
ACA Current1-400A
Accuracy±2.5%±0.5A@50-60Hz
±2.8%±0.5A@60-400Hz
Jaw opening28mm
Output ratio1mV/A
Wire length1.1m
True RMSDepends on the Multimeter
Response timeDepends on the Multimeter
Frequency50 Hz~400 Hz
Waveform displayAdaptable oscilloscope
AccuracyDepends on the Multimeter
Power supplyNo need battery
Drop test1m
Overvoltage categoryCAT III 300V, CAT II 600V
CertificatesCE, UKCA

Applications of UT-CS06A 400A AC Current Clamp Sensor
