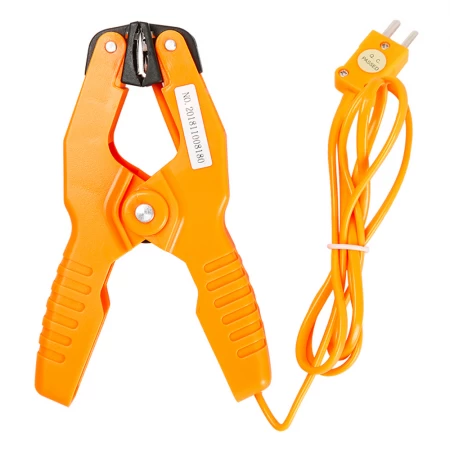

UNI-T UT-T15 K-Type Thermocouple Temperature Measurement Clip
The UNI-T UT-T15 is a flat-plug K-type thermocouple temperature measurement clip designed for quick and stable surface-temperature measurements. Its clamp-style probe has a 35 mm jaw opening, allowing it to grip suitable pipes, cables, tubing, and other objects without requiring the probe to be manually held against the measurement point. UNI-T specifies a measurement range of -40°C to 200°C.
The probe features a 200 cm cable and a flat K-type plug for connection to compatible temperature-recording meters. It is specifically listed for use with UNI-T UT320A/D and UT321, as well as K-type temperature meters that accept the corresponding flat plug. The clamp design makes it useful for HVAC service, electrical equipment testing, laboratory work, equipment maintenance, and general temperature monitoring.
Features:
- K-type thermocouple temperature sensor.

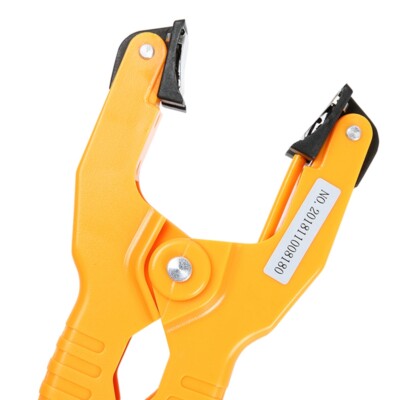

- Clamp-style design for hands-free surface measurement.
- 35 mm maximum jaw opening.
- Flat plug connection.
- 200 cm cable for convenient reach.
- Suitable for pipes, wires, tubing, and other surfaces.
- Wide operating measurement range.
- Compatible with K-type temperature recording meters.
- Designed for repeated testing and maintenance applications.
- Test range: -40°C~200°C.
- Jaw opening: 35mm.
- Features and application: Flat plug for any K-type temperature recording meter.
- Amount: 1PC.
Specifications:
| Specification | Details |
|---|---|
| Model | UT-T15 |
| Brand | UNI-T |
| Sensor Type | K-Type Thermocouple |
| Probe Type | Temperature Clamp |
| Measurement Range | -40°C to 200°C |
| Jaw Opening | 35 mm |
| Cable Length | 200 cm |
| Connector Type | Flat Plug |
| Compatible Instruments | UNI-T UT320A/D, UT321 and compatible K-type temperature meters |
| Quantity | 1 Piece |
Applications:
- HVAC and refrigeration servicing.
- Pipe and tubing temperature measurement.
- Electrical equipment testing.
- Cable and wire temperature monitoring.
- Motor and machinery maintenance.
- Laboratory temperature measurement.
- Industrial equipment inspection.
- General-purpose surface temperature testing.
Package Included:
- 1x UNI-T UT-T15 K-Type Thermocouple Temperature Measurement Clip.
