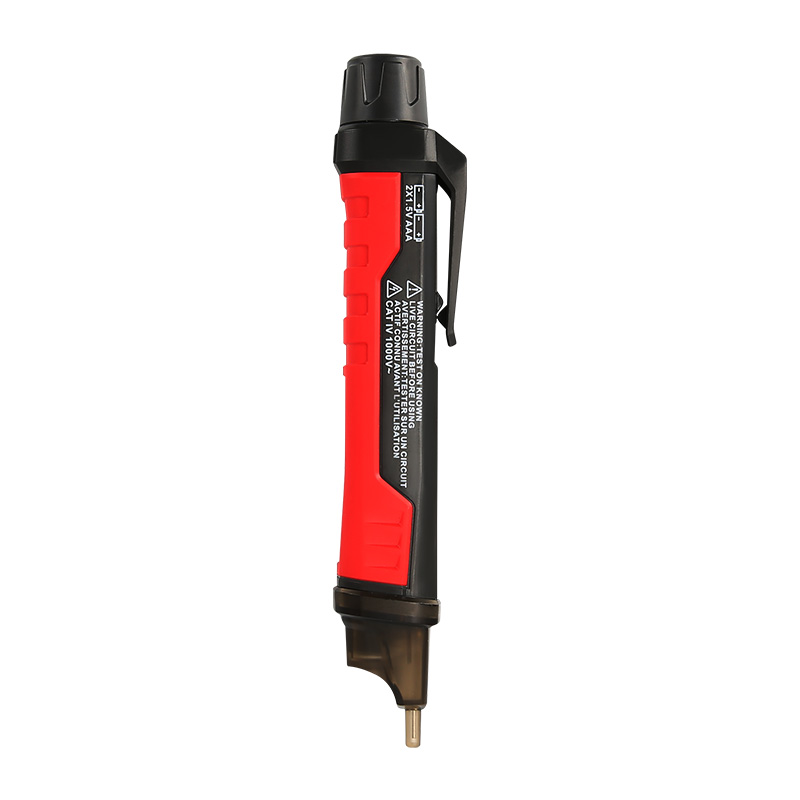

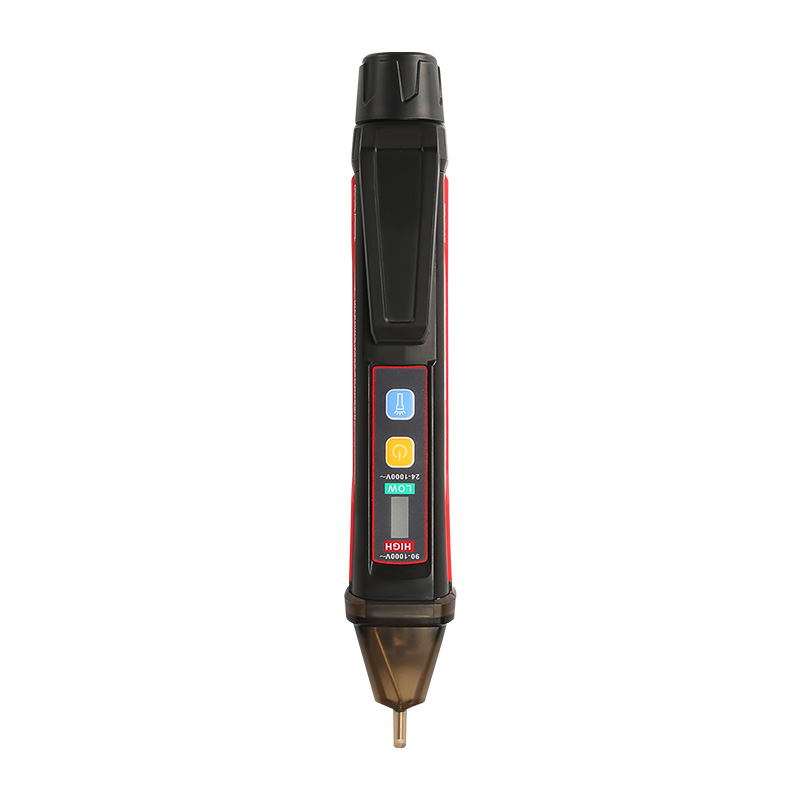

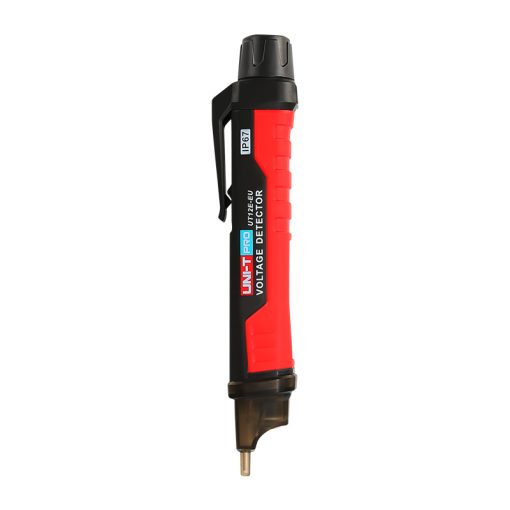

UNI-T UT12E-EU AC Voltage Detector
The UNI-T UT12E-EU AC Voltage Detector is a compact, professional non-contact voltage tester that enables electricians, technicians, and maintenance personnel to quickly detect the presence of AC voltage without touching exposed conductors. Featuring dual detection modes, it can identify both low-voltage and high-voltage AC sources, making it suitable for residential, commercial, and industrial electrical inspections. Its IP67-rated enclosure and 2-meter drop resistance ensure dependable performance even in harsh working environments.
Designed for maximum safety and convenience, the UT12E-EU includes audible, visual, and vibration alerts when voltage is detected. A built-in LED flashlight improves visibility in dark work areas, while automatic power-off and low battery indication help extend battery life. The lightweight pen-style design fits comfortably in a pocket or tool bag, making it an essential tool for everyday electrical maintenance and troubleshooting.
Features:
- Auto power off.
- Buzzer.
- LED indication.
- IP 67.
- AC voltage detection.
- High/Low voltage mode.
- Magnetic solenoid detection (UT12M-EU).
- Vibration mode(UT12E-EU).
Specifications:
| Specifications | UT12E-EU | UT12M-EU |
| AC voltage (Low) | 24V~1000V | 24V~1000V |
| AC voltage (High) | 90V~1000V | 90V~1000V |
| Frequency range | 50/60Hz | |
| Vibration mode | √ | |
| Magnetic solenoid detection | √ | |
| Built-in flashlight | √ | √ |
| ※Audible (buzzer) and visual (LED) indication | √ | √ |
| Buzzer | √ | √ |
| LED indication | √ | √ |
| Auto power off | √ | √ |
| Low voltage indication | √ | √ |
| Double injection molding | √ | √ |
| Drop test | 2m | 2m |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Product color | Red and grey | |
| Product net weight | 72g | |
| Product size | 160.5mm x 21.5 mm x 25mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 415mm x 245 mm x 235mm | |
| Standard carton gross weight | About 3.8kg | |
Applications:

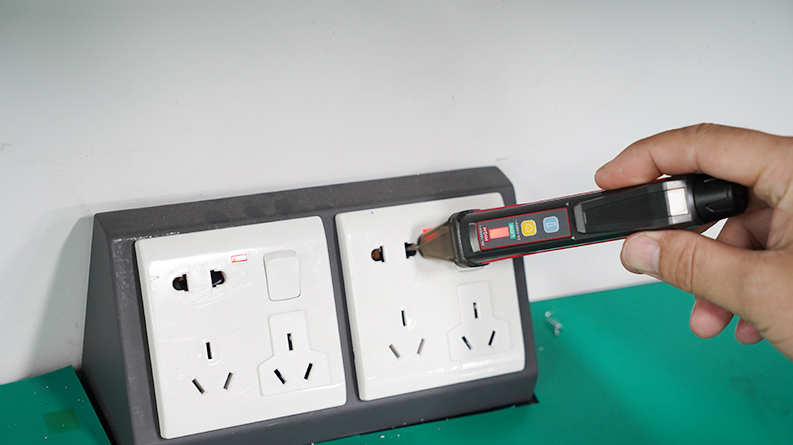

- AC outlet testing.
- Live wire detection.
- Circuit breaker identification.

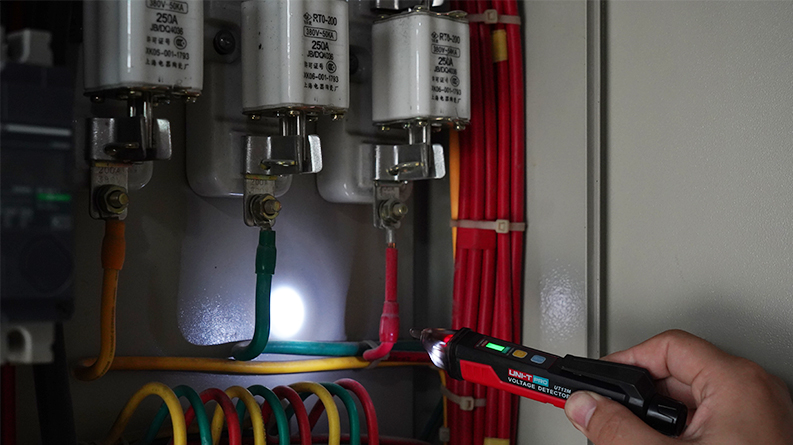

- Electrical panel inspection.
- Cable tracing.
- Switch and socket maintenance.
- Industrial electrical servicing.
- Residential electrical troubleshooting.
- HVAC electrical inspection.
- Preventive electrical maintenance.
- Electrical safety checks.
- Field service operations.
Package Includes:
- 1 × UNI-T UT12E-EU AC Voltage Detector.
- 2 × AAA Batteries.
- 1 × User Manual.
