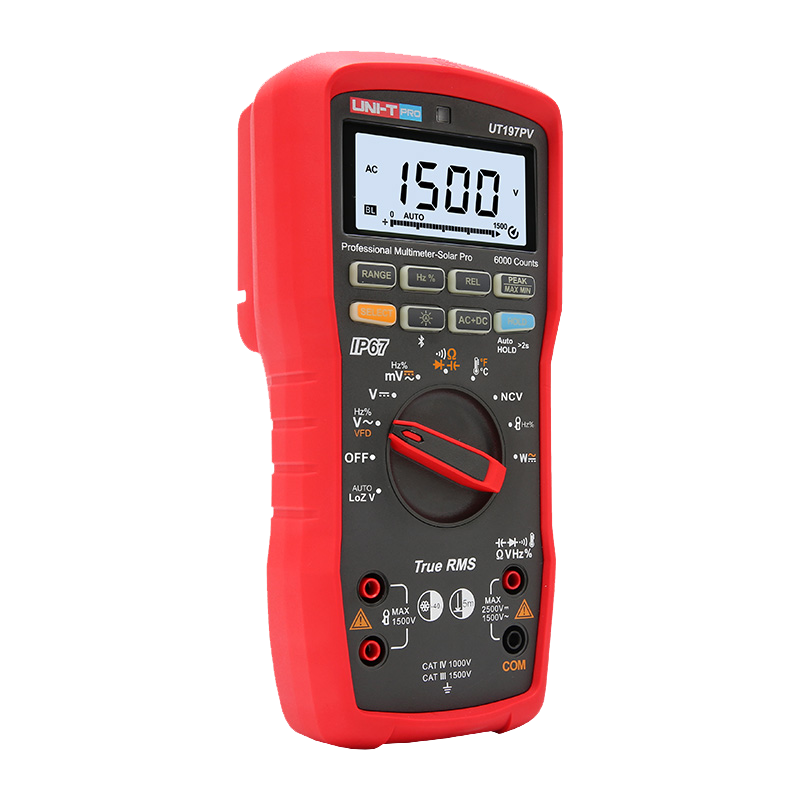

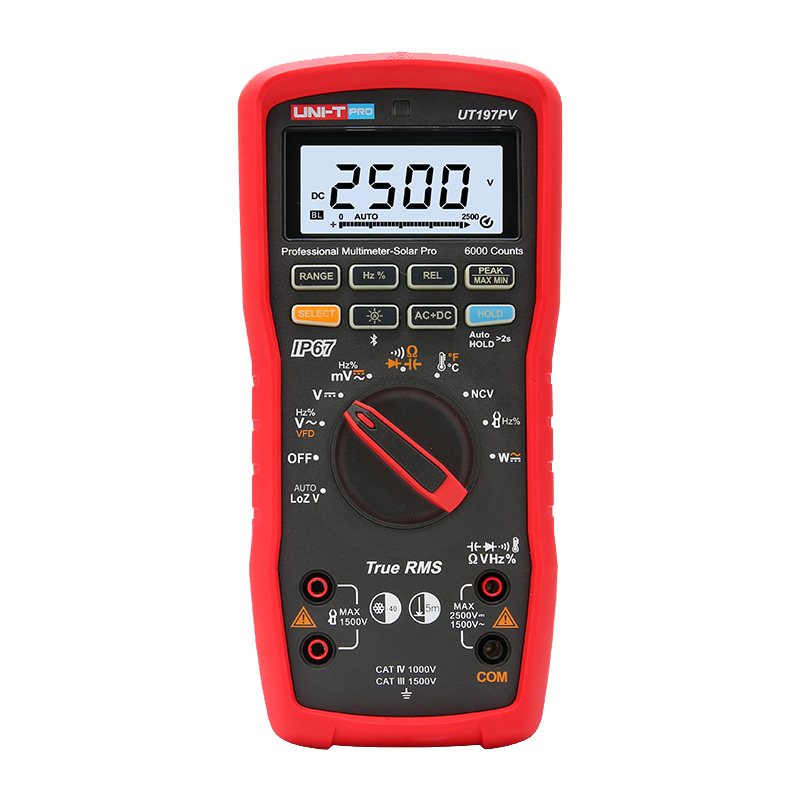

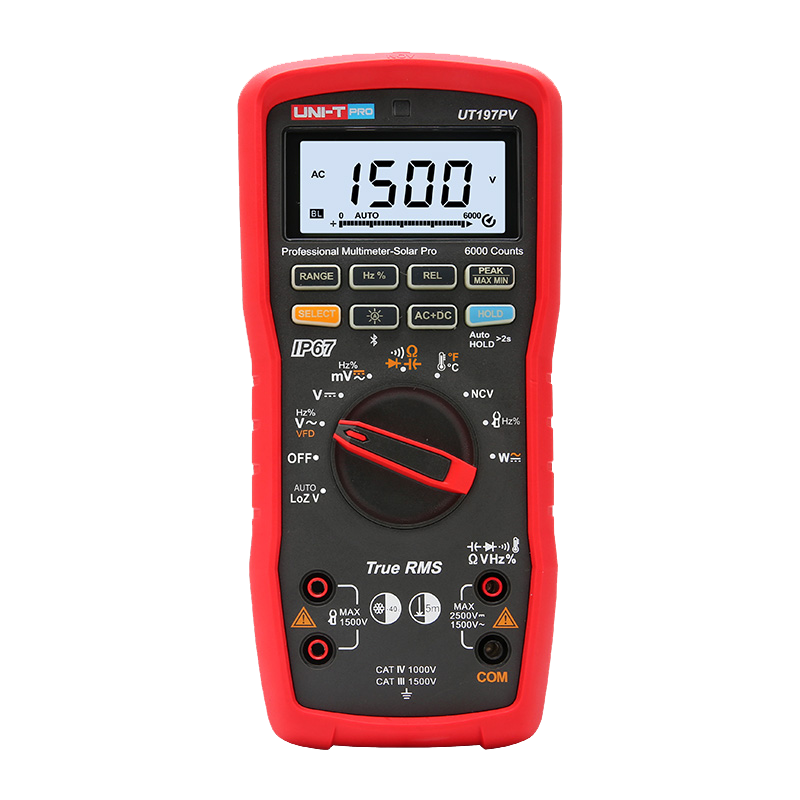

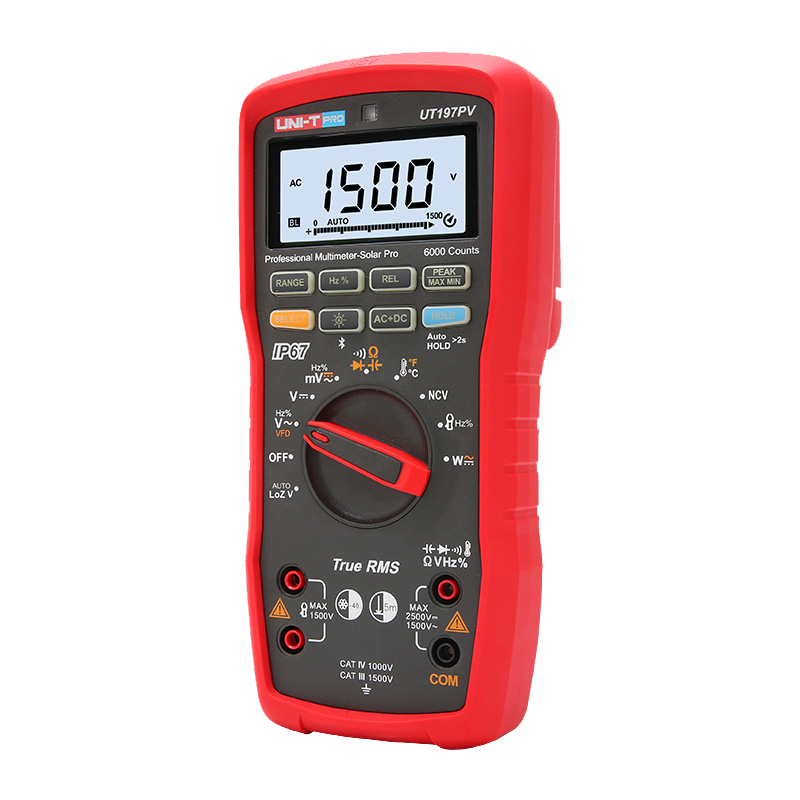

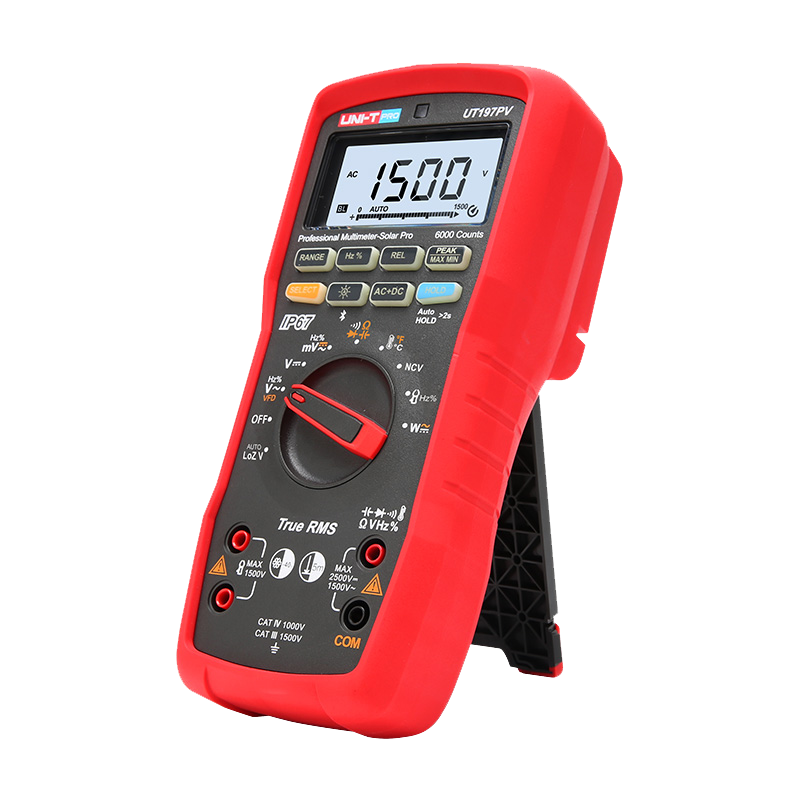

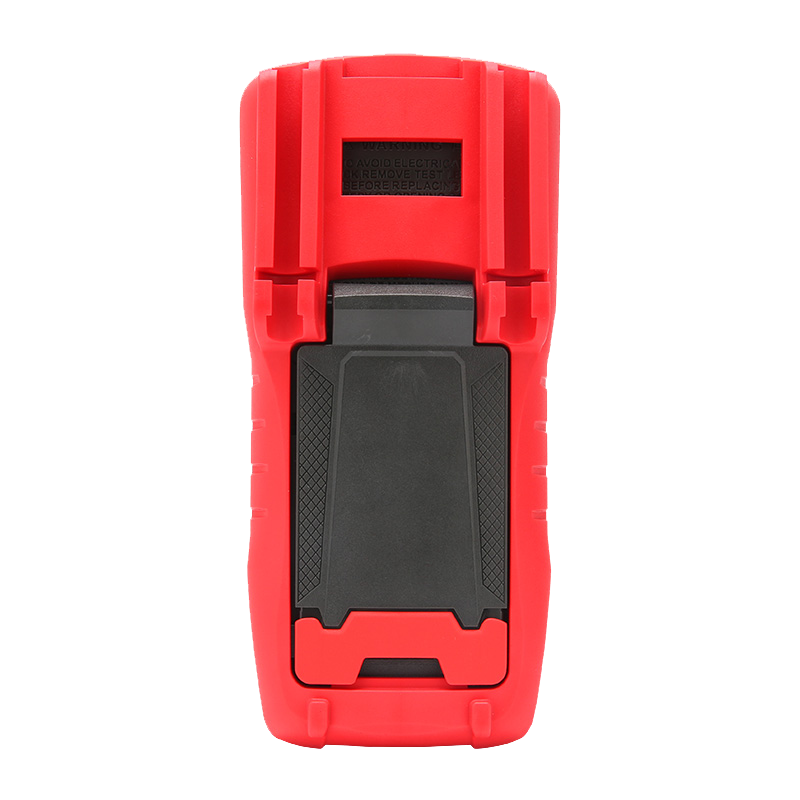

UNI-T UT197PV professional multimeter-solar pro
The UNI-T UT197PV Professional Multimeter-Solar Pro is a high-voltage digital multimeter designed for electrical maintenance, solar photovoltaic installations, industrial troubleshooting, and professional power-system testing. Combining True RMS measurement, a 6,000-count display, and a rugged enclosure, it provides versatile measurement capabilities for technicians working in demanding indoor and outdoor environments.
Features:
- multimeter True RMS measurement with 6,000 counts.
- AC/DC voltage: AC 1500V & DC 2500V.
- Power measurement: 1500KVA (AC) & 2500KVA (DC).
- VFD output measurement.
- IP67 & 5m Drop Protection.
- Overvoltage category: CAT IV 1000V & CAT III 1500V.
- Working environment: -40 °C ~ 55 °C.
- Bluetooth APP supported.
Specifications:
| Parameter | Range / Value | Accuracy / Details |
|---|---|---|
| DC Voltage (DCV) | 600.0mV | ±(0.3%+5) |
| DC Voltage (DCV) | 6.000V / 60.00V / 600.0V | ±(0.2%+5) |
| DC Voltage (DCV) | 2500V | ±(1.0%+5) |
| AC Voltage (ACV) | 600.00mV / 6.000V / 60.00V / 600.0V / 1500V, 45–1kHz | 45Hz to below 500Hz: ±(0.8%+3); 500Hz to below 1kHz: ±(1.8%+3) |
| VFD AC Voltage | 600.0V / 1500V, 45–200Hz | ±(2.0%+5) |
| Auto LoZ Voltage | 600.0V, 45–400Hz | ±(1.5%+5) |
| Auto LoZ Voltage | 1500V | ±(1.8%+5) |
| AC+DC Voltage | 600.00mV / 6.000V / 60.00V / 600.0V / 1500V | 45Hz to below 500Hz: ±(1.5%+5); 500Hz to below 1kHz: ±(2.5%+5) |
| Resistance | 600.0Ω | ±(0.8%+5) |
| Resistance | 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ | ±(0.5%+5) |
| Resistance | 60.00MΩ | ±(2.5%+5) |
| Capacitance | 60.00nF | ±3.0% |
| Capacitance | 600.0nF / 6.000µF / 60.00µF / 600.0µF | ±(3.0%+5) |
| Capacitance | 6.000mF / 60.00mF | ±(10.0%+5) |
| Continuity | 600.0Ω | ±(1.0%+5) |
| Diode Test | 3.2V | ±(1.0%+5) |
| Frequency | 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz | ±(0.02%+5) |
| Duty Cycle | 10Hz–10kHz, 10%–90% | ±(2.0%+30) |
| Temperature | -40°C to 1000°C | ±(1.0%+30) |
| Temperature | -40°F to 1832°F | ±(1.0%+60) |
| External Clamp DC Current | UT-CS07 optional; 100A (10mV/A) / 1000A (1mV/A) | ±(0.8%+5) |
| External Clamp AC Current | UT-CS07 optional; 100A (10mV/A) / 1000A (1mV/A), 45–400Hz | ±(1.0%+5) |
| AC Active Power, 100A Clamp | 60.00kW / 150.0kW | ±(3.0%+5) |
| AC Apparent Power, 100A Clamp | 60.00kVA / 150.0kVA | ±(2.0%+5) |
| AC Reactive Power, 100A Clamp | 60.00kVAr / 150.0kVAr | ±(5.0%+5) |
| Power Factor, 100A Clamp | -1 to 1 | Accuracy not specified in the source table |
| AC Active Power, 1000A Clamp | 600.0kW / 1500kW | ±(3.0%+5) |
| AC Apparent Power, 1000A Clamp | 600.0kVA / 1500kVA | ±(2.0%+5) |
| AC Reactive Power, 1000A Clamp | 600.0kVAr / 1500kVAr | ±(5.0%+5) |
| Power Factor, 1000A Clamp | -1 to 1 | Accuracy not specified in the source table |
| DC Power, 100A Clamp | 60.00kVA / 250.0kVA, as listed by manufacturer | ±(3.0%+5) |
| DC Power, 1000A Clamp | 60.00kVA / 2500kVA, as listed by manufacturer | ±(3.0%+5) |
| Display Count | 6000 | 6000-count display |
| Analog Bar Graph | 33 segments | Yes |
| True RMS | Supported | Yes |
| Non-Contact Voltage (NCV) | Supported | Yes |
| Auto Ranging | Supported | Yes |
| Relative Mode (REL) | Supported | Yes |
| Peak Measurement | Supported | Yes |
| Maximum / Minimum Recording | Supported | Yes |
| Data Hold | Supported | Yes |
| High-Voltage Alarm | Supported | Yes |
| High-Voltage Overload Alarm | Supported | Yes |
| Low-Battery Indicator | Supported | Yes |
| Automatic Power-Off | Supported | Yes |
| Multifunctional Protection | Supported | Yes |
| Bluetooth App | Supported | Yes |
| Backlight | Automatic | Yes |
| Drop Protection | 5m | Manufacturer-rated |
| Ingress Protection | IP67 | Manufacturer-rated |
| Operating Temperature | -40°C to 55°C | Manufacturer-rated |
| Overvoltage Category | CAT IV 1000V / CAT III 1500V | Manufacturer-rated |
| Product Dimensions | 220 × 104 × 67mm | — |
| Power Supply | 3 × 1.5V AA batteries | — |

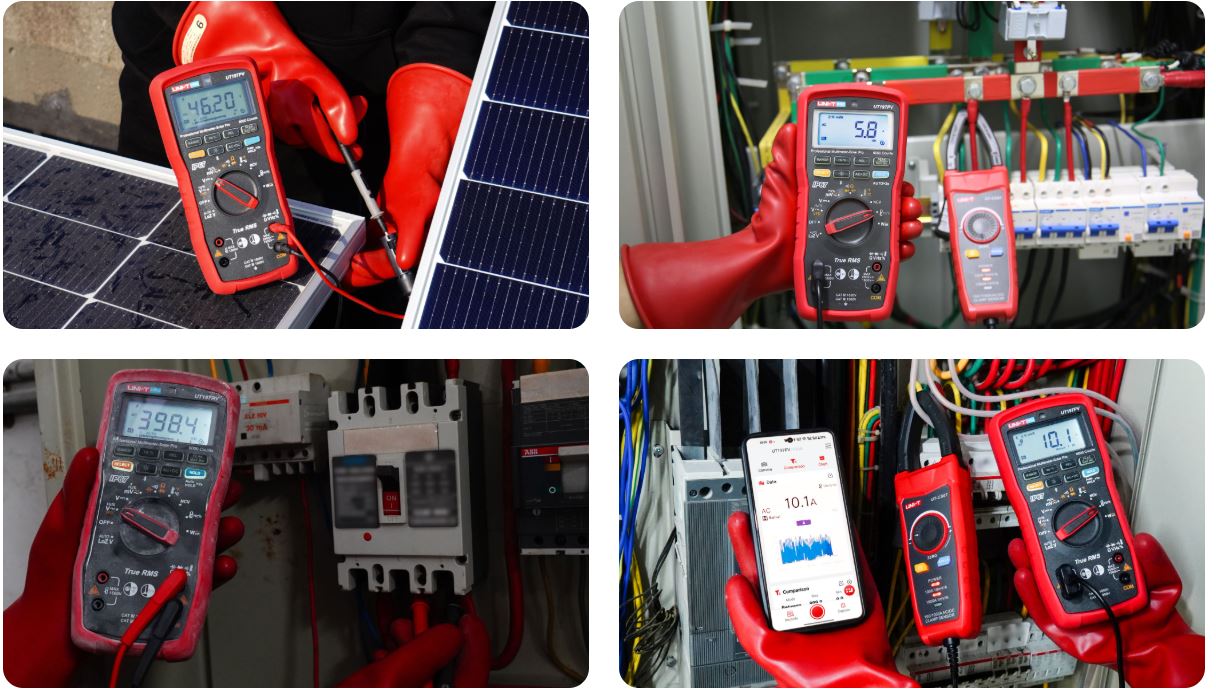

Applications:
- Solar photovoltaic panel and system voltage testing.
- High-voltage DC electrical measurements.
- AC electrical distribution and power engineering.
- Industrial equipment inspection and troubleshooting.
- HVAC system maintenance.
- Inverter and variable-frequency drive testing.
- Resistance, capacitance, and continuity checks.
- Temperature measurements in electrical and industrial applications.
- Electrical installation maintenance and fault diagnosis.
- Current and power analysis using a compatible external clamp.
Package Include:
- 1x UNI-T UT197PV professional multimeter-solar pro
- 1x User manual
- 3x 1.5V AA battery
- 1x Carrying bag
- 1x Test leads (UT-L95)
- 1x Threaded-bore alligator clip (with protective holster, UT-C14)
- 1x Temperature probe
- 2x Dust plug for input terminal
- 2x Lantern tip
