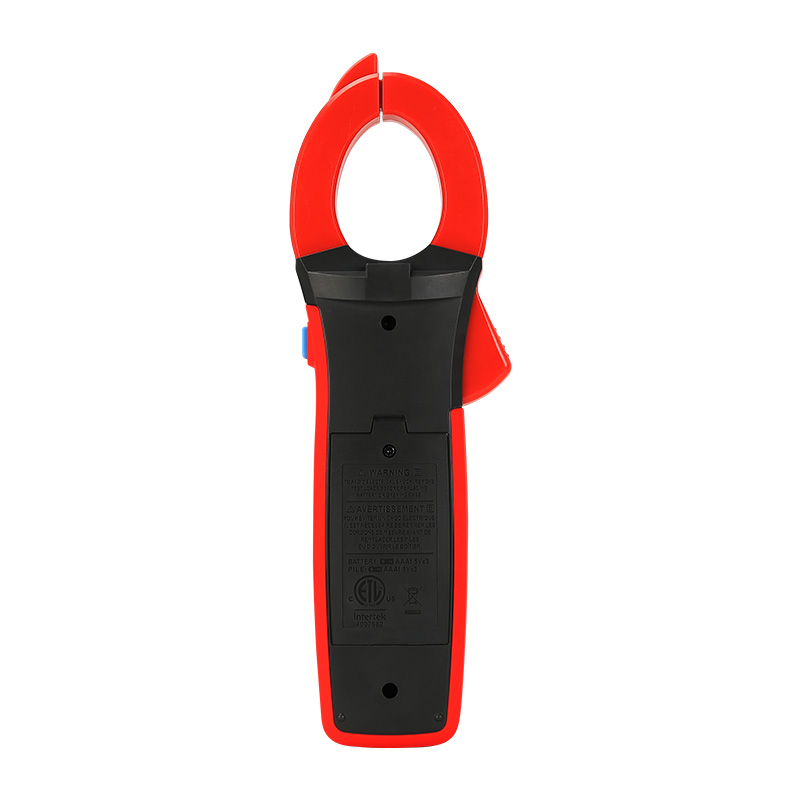

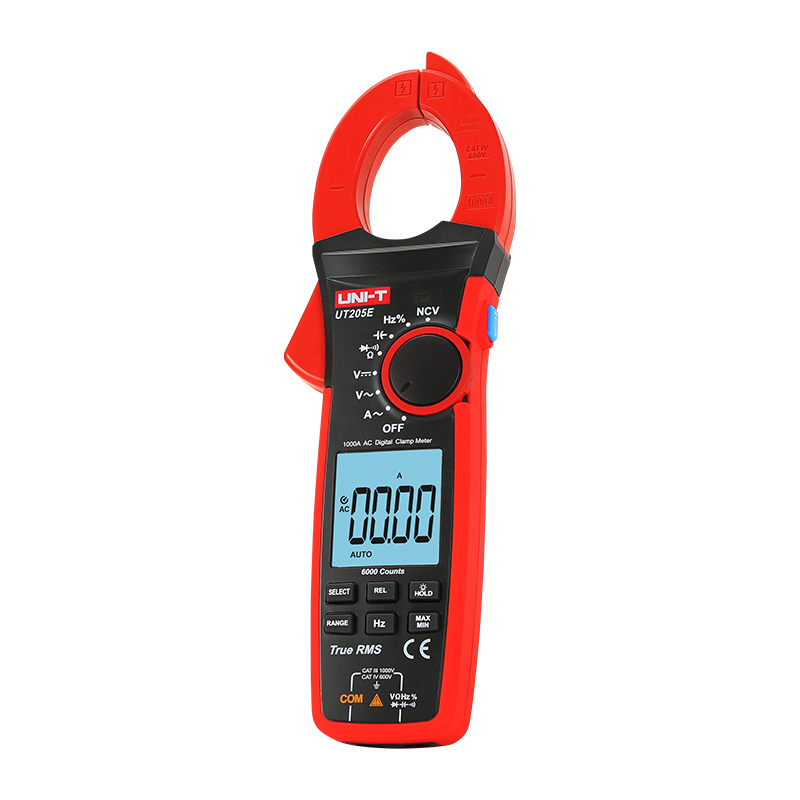

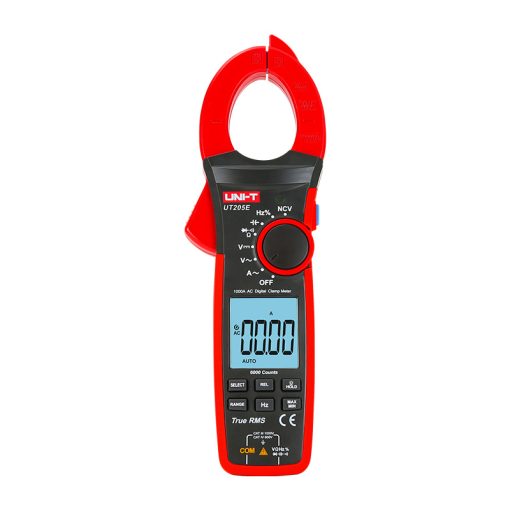

UNI-T UT205E Digital Clamp Meter
The UNI-T UT205E Digital Clamp Meter is a professional True RMS measuring instrument designed for electricians, maintenance engineers, technicians, and industrial users. Its clamp jaw allows fast and safe measurement of AC and DC current without disconnecting the circuit, while additional functions including voltage, resistance, capacitance, frequency, temperature, continuity, and diode testing make it a versatile tool for electrical troubleshooting.
Built with a rugged ergonomic design, the UT205E features automatic ranging, a large backlit LCD display, NCV (Non-Contact Voltage) detection, inrush current measurement, MAX/MIN recording, and data hold functions. True RMS technology provides accurate readings on both sinusoidal and distorted waveforms, making the meter suitable for industrial equipment, motor drives, power supplies, HVAC systems, and electrical installations.
Features:
- True RMS measurement.
- Measures AC and DC current using clamp jaw.

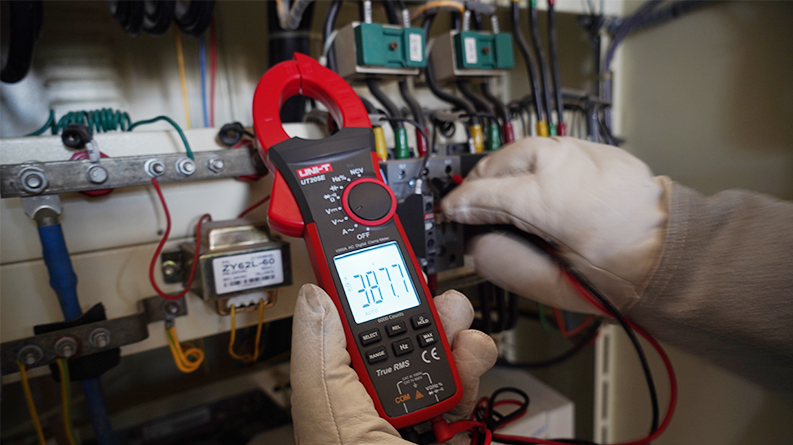

- AC and DC voltage measurement.

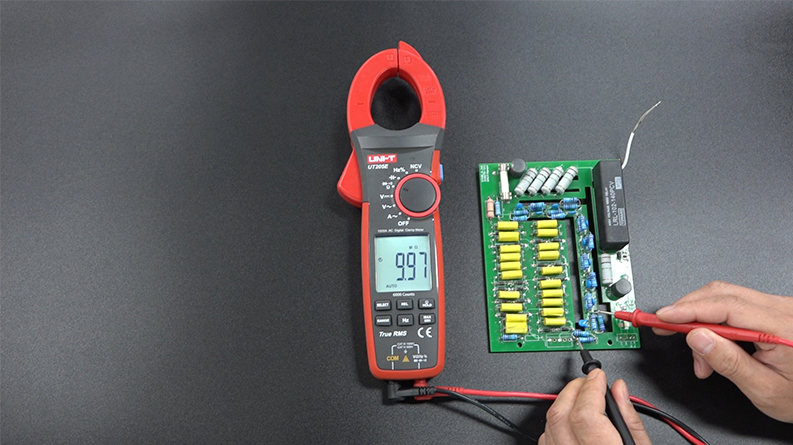

- Resistance measurement.

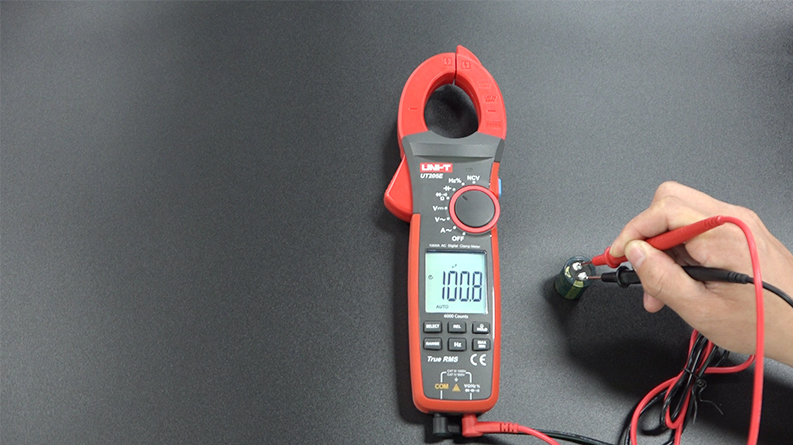

- Capacitance measurement.
- Frequency measurement.
- Temperature measurement.
- Non-Contact Voltage (NCV) detection.
- Inrush current measurement.
- Diode test.
- Continuity test with buzzer.
- Automatic and manual ranging.
- Large backlit LCD display.
- Data Hold function.
- MAX/MIN recording.
- Relative measurement mode.
- Auto power-off.
- Low battery indication.
- Jaw opening for non-contact current measurement.
- Rugged handheld construction.
- High safety protection.
Specifications:
| Specifications | Range | UT205E | UT206B | UT207B | UT208B |
| AC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ±(2%+5) | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ||
| AC current frequency response | 50Hz~60Hz | 50Hz~60Hz | 40Hz~400Hz | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) | ±(10%+10) | ±(10%+10) | |
| AC voltage (V) | 1000V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| LoZ ACV | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Temperature | -40℃~1000℃ | ±(1%+2) | ±(1%+2) | ||
| -40℉~1832℉ | ±(1%+4) | ±(1%+4) | |||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) |
| Analog bar | 31 | 31 | 31 | ||
| Flexible current probe (optional) | Extends up to 3000A | √ | √ | ||
| Zero mode | √ | √ | |||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Jaw opening | 42mm | 42mm | 42mm | 42mm | |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 43mm x 45mm | ||||
| Product net weight | UT205E/UT206B: 465g; UT207B/UT208B: 420g | ||||
| Product size | 272mm x 81mm x 43.5mm | ||||
| Standard accessories | Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual | ||||
| Standard individual packing | Gift box, carrying bag | ||||
| Standard quantity per carton | UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs | ||||
| Standard carton measurement | UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm | ||||
| Standard carton gross weight | UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg | ||||
Applications:
- Industrial electrical maintenance.
- Electrical installation testing.
- Motor and pump diagnostics.
- HVAC servicing.
- Power distribution systems.
- Renewable energy system maintenance.
- Electrical panel inspection.
- Automotive electrical troubleshooting.
- Laboratory measurements.
- Educational training.
- Field service operations.
Package Includes:
- 1x UNI-T UT205E Digital Clamp Meter.
- 1x User manual.
- 1x Test leads.
- 1x K-type thermocouple (UT206B/UT208B).
- 1x Cloth bag.
- 3x 1.5V AAA batteries.
