UNI-T UT210D Mini Clamp Current Meter

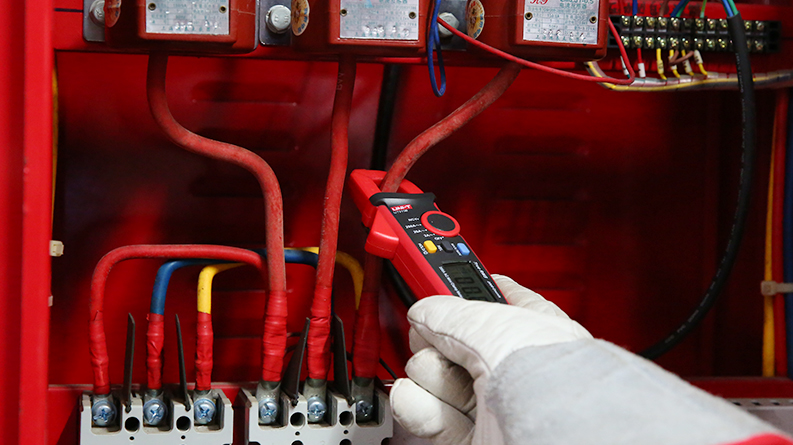

The UNI-T UT210D Mini Clamp Current Meter is a lightweight and portable True RMS clamp meter that allows accurate measurement of both AC and DC current without disconnecting the circuit. Its compact 17mm jaw opening makes it ideal for working inside crowded electrical panels, automotive wiring, solar systems, and other confined spaces where larger clamp meters are difficult to use.
In addition to current measurement, the UT210D functions as a full-featured digital multimeter with voltage, resistance, capacitance, frequency, temperature, continuity, and diode testing capabilities. It also includes NCV (Non-Contact Voltage) detection, auto-ranging, data hold, and a backlit display, making it a versatile tool for electricians, technicians, engineers, and electronics enthusiasts.
Features:
- True RMS measurement.
- Measures both AC and DC current.
- Compact mini clamp design.
- Auto-ranging operation.
- Non-Contact Voltage (NCV) detection.
- AC and DC voltage measurement.
- Resistance measurement.
- Capacitance measurement.
- Frequency measurement.
- Temperature measurement.
- Continuity buzzer.
- Diode testing.
- Data Hold function.
- Relative (ZERO) mode.
- Backlit LCD display.
- Auto power-off.
- Low battery indication.
- Lightweight and ergonomic design.
Specifications:
| Specifications | Range | UT210A | UT210B | UT210C | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+20) | ±(2%+10) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||||
| DC current (A) | 200A | ±(2%+3) | ||||
| 100A | ±(2%+3) | |||||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ||
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | ||
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ||
| Temperature | -40~1000℃ | ±(1%+3) | ±(1%+3) | |||
| -40~1832℉ | ±(1.5%+5) | ±(1.5%+5) | ||||
| Features | ||||||
| Display count | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | √ | √ | |
| Auto range | √ | √ | √ | |||
| Jaw opening | 16mm | 16mm | 17mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | √ | ||
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 39.3mm x 26.5mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT210A/B: 150g (batteries included); UT210C/D/E: 170g | |||||
| Product size | UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm | |||||
| Standard accessories | Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) | |||||
| Standard individual packing | Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm | |||||
| Standard carton gross weight | UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg | |||||
Applications:
- Electrical maintenance.
- Automotive electrical diagnostics.
- Solar power system testing.
- Battery and charging system testing.
- Industrial equipment troubleshooting.
- Home appliance repair.
- HVAC servicing.
- Laboratory measurements.
- Educational training.
- Field service operations.
- Electronics circuit testing.
Package Includes:
- 1 × UNI-T UT210D Mini Clamp Current Meter.
- 1 × Pair of Test Leads.
- 1 × Temperature Probe.
- 2 × AAA Batteries.
- 1 × Carrying Bag.
- 1 × User Manual.
