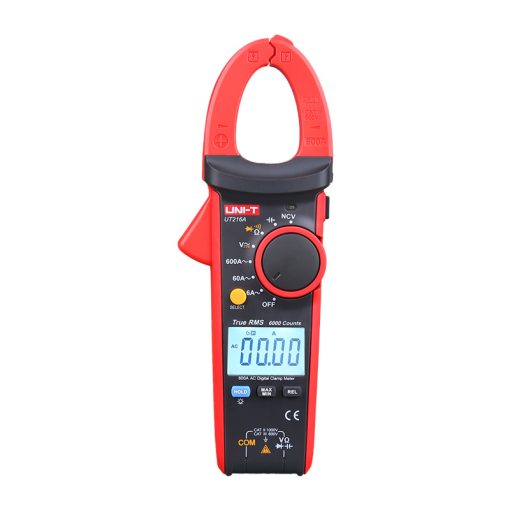

UNI-T UT216A Digital Clamp Meters
The UNI-T UT216A Digital Clamp Meter is a high-performance True RMS clamp meter designed for electricians, maintenance engineers, industrial technicians, and field service professionals. Engineered for reliable and accurate electrical measurements, it combines advanced measurement capabilities with a rugged double-injection housing for enhanced durability and a comfortable grip during extended use.
Features:
- True RMS Ensures accurate measurements on non-linear and distorted AC waveforms
- Auto Range Automatic scaling with a fast sampling rate of 3 times per second
- Measurement Modes Supports MAX, MIN, and Relative (REL) modes
- Flashlight Built-in work light for operating in dark or low-light environments
- NCV (Non-Contact Voltage) Integrated sensor for safe, non-contact AC voltage testing
Specifications:
| Parameter | Value |
|---|---|
| AC Current (A) | 600A, ±(2.5%+5) |
| AC Current Frequency Response | 50/60Hz |
| DC Current (A) | Not available on UT216A |
| AC Voltage (V) | 750V, ±(1.2%+5) |
| AC Voltage Frequency Response | 40~400Hz |
| DC Voltage (V) | 1000V, ±(0.8%+1) |
| Resistance (Ω) | 60MΩ, ±(1%+2) |
| Capacitance (F) | 60mF, ±(4%+5) |
| Frequency (Hz) | Not available on UT216A |
| Temperature (°C) | Not available on UT216A |
| Temperature (°F) | Not available on UT216A |
| Display Count | 6000 |
| Auto Range | Yes |
| Jaw Opening | 30mm |
| True RMS | Yes |
| Diode | Around 3.0V |
| V.F.C. | No |
| NCV | Yes |
| Data Hold | Yes |
| Relative Mode | Yes |
| MAX/MIN | Yes |
| LCD Backlight | Yes |
| Inrush Current | No |
| OLED Display | No |
| Analog Bar Graph | No |
| Flashlight | Yes |
| Auto Power Off | Yes |
| Continuity Buzzer | Yes |
| Low Battery Indication | ≤3.6V |
| Input Protection | Yes |
| Input Impedance for DCV | ≥10MΩ |
| Power | 1.5V Battery (R03) × 3 |
| Display | 38mm × 24mm |
| Product Color | Red and Grey |
| Product Net Weight | 280g |
| Product Size | 220mm × 75mm × 40mm |
| Standard Carton Measurement | 485mm × 345mm × 385mm |
| Standard Carton Gross Weight | 20.6kg |
Applications:
- Electrical installation and maintenance.
- Industrial equipment troubleshooting.
- Power distribution inspection.
- HVAC system servicing.
- Server room maintenance.
- IT infrastructure testing.
- Commercial electrical diagnostics.
- Educational laboratories.
- Field service operations.
- General electrical measurements.
Package Include:
- 1x UNI-T UT216A Digital Clamp Meter.
- 1x Test Lead Set.
- 1x Bag.
- 1x English User Manual.
