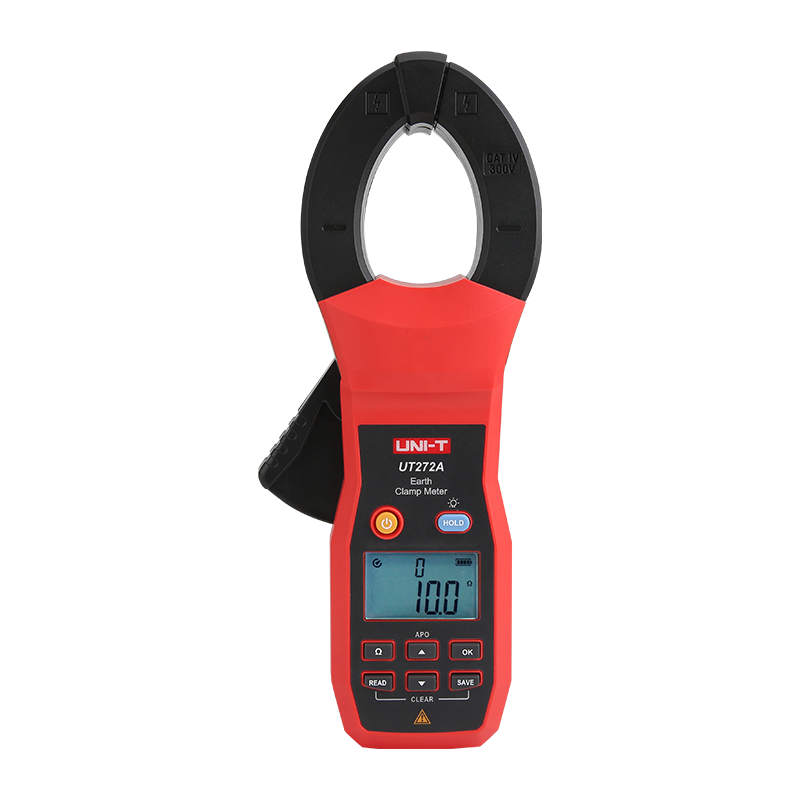

UNI-T UT272A Earth Clamp Meter
The UNI-T UT272A Earth Clamp Meter is a portable electrical testing instrument used to measure grounding resistance and loop resistance in electrical installations without disconnecting the grounding conductor.
12,250.00 EGP
In stockSKU 3496300161294
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
UNI-T UT272A Earth Clamp Meter
The UNI-T UT272A Earth Clamp Meter is designed for measuring earth resistance in grounding systems used in electrical installations, telecommunications facilities, and equipment rooms. Its clamp-based measurement method enables technicians to test grounding loops conveniently without the traditional auxiliary electrode setup required by many conventional earth resistance testers.
The UT272A features an automatic measurement range, a four-digit LCD, data storage, measurement recall, and automatic calibration at startup. Its clamp accommodates conductors or busbars up to 44 mm in diameter. The instrument also includes over-range indication and automatic power-off to help conserve battery life, making it suitable for electrical maintenance, grounding inspections, and troubleshooting.
Features:
- Resistance measurement:
i. UT272A：0.010~400Ω
ii. UT275A：0.010~1200Ω - AC Current measurement:
i. 1.00mA~30.0A (UT275A only) - Earth resistance accuracy: ± (1%＋0.01Ω)
- Max measurable diameter: φ 44mm (busbar or cable)
- Data storage: 500 sets
- Bluetooth data communication (UT275A only)
- 4-digit LCD
- Self-calibration when power on
- IEC 61010-1; IEC61010-2-032; IEC61326
Specifications:
| Functional | UT272A | UT275A | ||||
| Earth Resistance (Auto range) |
Range | Resolution | Accuracy | Range | Resolution | Accuracy |
| 0.01Ω-0.19Ω | 0.01Ω | ±(1.5%+0.05Ω) | 0.01Ω-0.199Ω | 0.001Ω | ±(1%+0.02Ω) | |
| 0.20Ω-1.95Ω | 0.05Ω | ±(1.5%+0.1Ω) | 0.20Ω-1.99Ω | 0.01Ω | ±(1%+0.05Ω) | |
| 2.0Ω-49.9Ω | 0.1Ω | ±(1.5%+1Ω) | 2.0Ω-49.9Ω | 0.1Ω | ±(1%+0.5Ω) | |
| 50.0Ω-99.5Ω | 0.5Ω | ±(2%+2Ω) | 50.0Ω-99.5Ω | 0.5Ω | ±(1.5%+1Ω) | |
| 100Ω-199Ω | 1Ω | ±(2.5%+5Ω) | 100Ω-199Ω | 1Ω | ±(2%+2Ω) | |
| 200Ω-400Ω | 5Ω | ±(5%+10Ω) | 200Ω-395Ω | 5Ω | ±(5%+5Ω) | |
| N/A | 400-590Ω | 10Ω | ±(10%+10Ω) | |||
| N/A | 600Ω-880Ω | 20Ω | ±(20%+20Ω) | |||
| N/A | 900Ω-1.20KΩ | 30Ω | ±(25%+30Ω) | |||
| AC Current (Auto range/ 50Hz/60Hz) |
N/A | 1.00mA -9.99mA | 0.01mA | ±(2.5%+1mA) | ||
| N/A | 10.0mA -99.9mA | 0.1mA | ±(2.5%+5.0mA) | |||
| N/A | 100mA -999mA | 1mA | ±(2.5%+10mA) | |||
| N/A | 1.00A-9.99A | 0.01A | ±(2.5%+0.2A) | |||
| N/A | 10.0A-30.0A | 0.1A | ±(2.5%+0.5A) | |||
| Functional | 1, Earth resistance test; 2, Loop resistance test |
1, Earth resistance test; 2, Loop resistance test; 3, AC test |
||||
| Max measurable conductor dia. |
Max Ф44mm | Max Ф44mm | ||||
| Display | 4-digit LCD | 4-digit LCD | ||||
| Sampling rate | 2 time/s | 2 time/s | ||||
| Data storage | 500 set | 500 set | ||||
| Over-range indication | YES | YES | ||||
| Data recall | YES | YES | ||||
| Bluetooth | N/A | YES | ||||
| APO | Around 10 minutes without operation | Around 10 minutes without operation | ||||
| Insulation Resistance | 50MΩ/1000V | 50MΩ/1000V | ||||
| Power consumption | Around 50mA(max:100mA) | Around 50mA(max:100mA) | ||||
| Working temp. | -10ºC ~50ºC relative humidity below 85%, no condensation. | |||||
| Storage temp. | -20ºC ~ 60ºC relative humidity below 85%, no condensation. | |||||
| IP Rating | IP40 | IP40 | ||||
| Safety regulation grade | IEC 61010-1: 2001 (CATIV 300V; Pollution degree: 2) IEC 61010-2-032: 2002 IEC 61326: 2000 (EMC standard) |
IEC 61010-1: 2001 (CATIV 300V; Pollution degree: 2) IEC 61010-2-032: 2002 IEC 61326: 2000 (EMC standard) |
||||
| Product size | 270mm×94mm×58mm | 270mm×94mm×58mm | ||||
| Accessories | 1, R6P batteries: 4pcs; 2, Manual: 1pcs; 3, Calibration loop: 1pcs (1Ω & 10Ω); 4, Tool box: 1pcs. | |||||
Applications:
- Electrical grounding system inspection.
- Earth resistance and loop resistance testin.
- Telecommunications grounding maintenance.
- Electrical equipment room inspections.
- Industrial electrical maintenance.
- Grounding system troubleshooting.
- Preventive maintenance of electrical installations.
Package Includes:
- 1x UNI-T UT272A Earth Clamp Meter.
