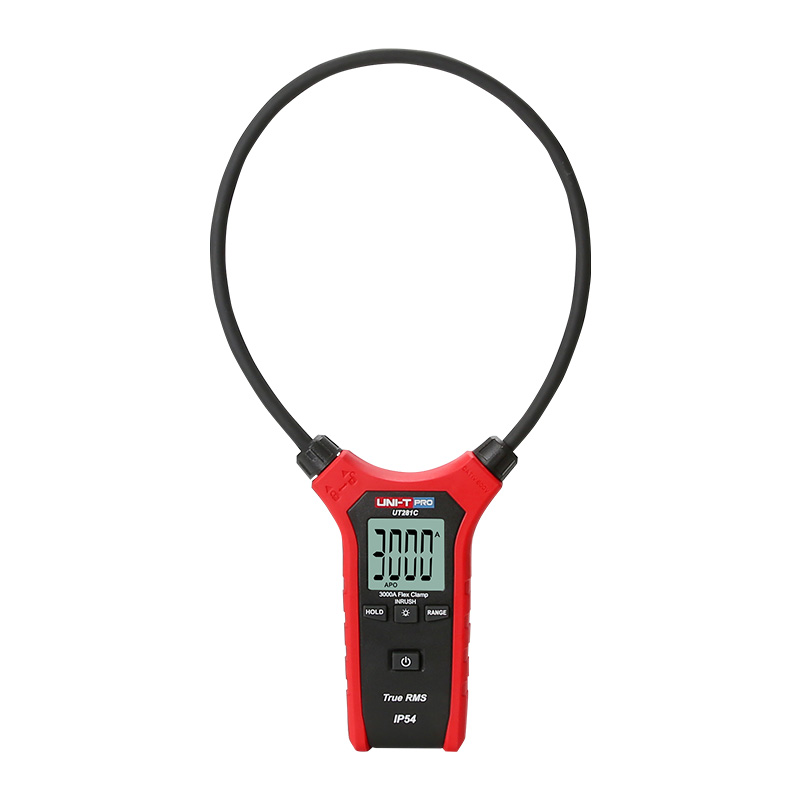

UNI-T UT281C Clamp Meter
The UNI-T UT281C Clamp Meter is a professional-grade True RMS flexible clamp meter designed for accurate AC current measurement in demanding industrial and commercial electrical environments. Utilizing an advanced Rogowski flexible coil, the UT281C allows electricians and maintenance engineers to measure current on large conductors, busbars, and cables located in confined or hard-to-reach areas where conventional rigid clamp meters cannot be used.
Features:
- True RMS AC current measurement up to 3000A.
- Flexible Rogowski coil for measuring large conductors.
- 18-inch (45.7cm) flexible sensing coil.
- Inrush current measurement function.
- Manual range selection.
- Large 3000-count LCD display.
- Data Hold function.
- LCD backlight for low-light operation.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model | UT281C |
| Product Type | Flexible True RMS Clamp Meter |
| Current Measurement | AC Only |
| AC Current Range | 30A/300A/3000A |
| Accuracy | ±(3%+5) |
| Measurement Technology | True RMS |
| Frequency Response | 45Hz~500Hz |
| Inrush Current | 0.5A~3000A |
| Range Selection | Manual |
| Flex Coil Length | 45.7cm (18″) |
| Maximum Conductor Diameter | 8cm |
| Display Count | 3000 |
| Display Size | 32×34mm |
| Display Refresh Rate | 3Times/s |
| Data Hold | Yes |
| Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Protection Rating | IP54 |
| Drop Protection | 2m |
| Power Supply | 3×1.5V AAA (R03) Batteries |
| Dimensions | 350×190×55mm |
| Color | Red & Grey |
Configuration:
Applications:
- Industrial electrical maintenance.
- Power distribution inspection.
- Electrical installation testing.
- High-current conductor measurement.
- Motor startup current analysis.
- Transformer current measurement.
- Electrical panel troubleshooting.
- Industrial machinery maintenance.
- Preventive maintenance inspections.
- Commercial electrical servicing.
Package Include:
- 1x UNI-T UT281C Clamp Meter.
- 3x AAA (R03) Batteries.
