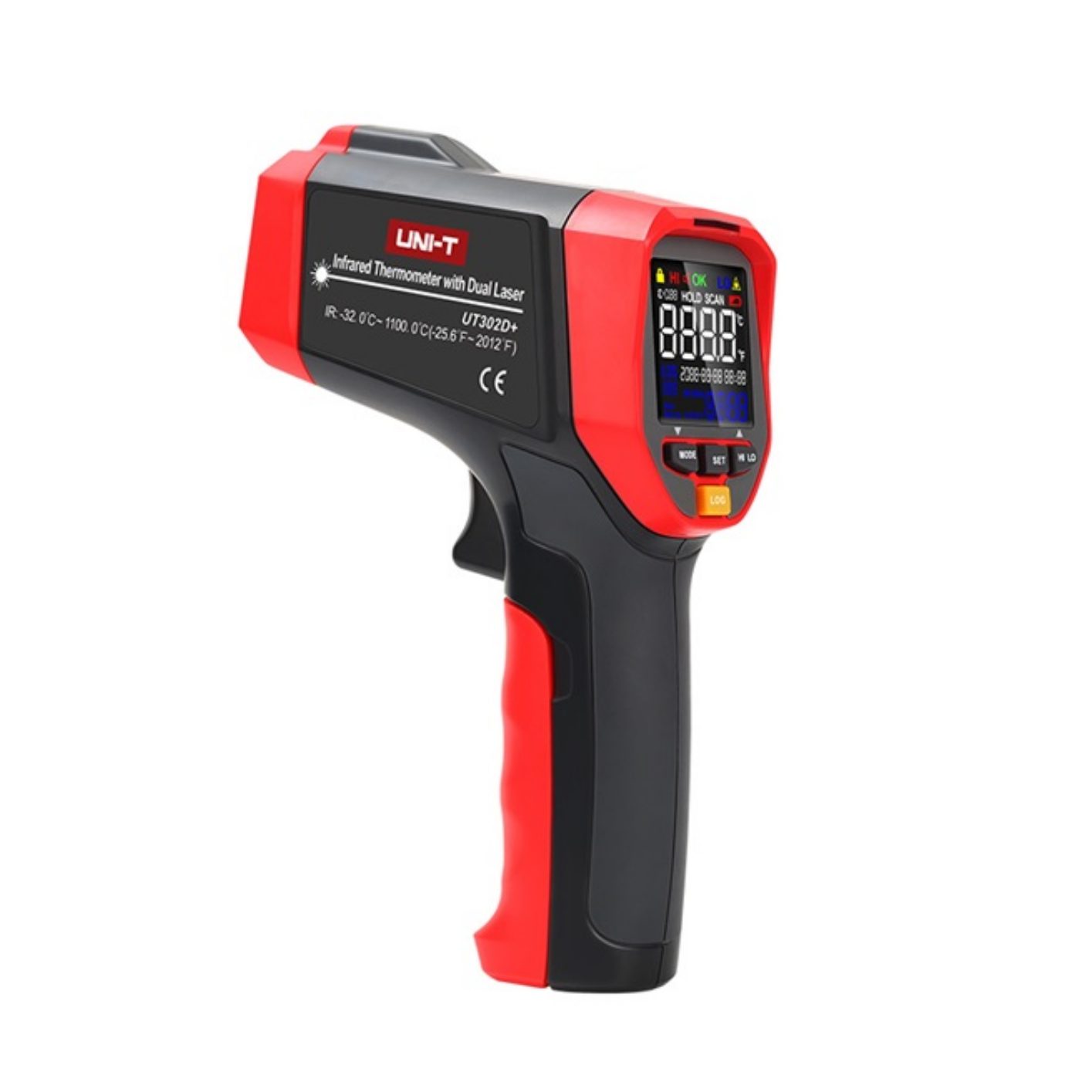

UNI-T UT302D+ Infrared Thermometer with Dual Laser
UT302+/UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement.
Features
- ±1.5℃ temperature measurement accuracy.
- User defined visual and audio alarm.
- High-contrast EBTN color display.
- MAX/MIN/AVG/DIFF/Hold modes.
- Dual lasers.
- Temperature recording up to 99 groups.
- Date/time display time scheduled measurement.
- Time scheduled measurement..
Specifications
| Parameter | Details |
| Temperature range | -32°C ~ 1100°C (-25.6°F ~ 2012°F) |
| Accuracy |
≥0°C: ±1.5°C or ±1.5%; <0°C: ±(1.5°C + 0.1°C/°C) ≥32°F: ±3.0°F or ±1.5%; <32°F: ±(3.0°F + 0.1°F/°F) |
| Repeatability | 0.7°C or 0.7% (1.5°F or 0.7%) |
| D:S ratio | 20:1 |
| Response time | 250ms |
| Emissivity | 0.1 ~ 1.0 (adjustable, stores 5 sets of preset values) |
| Spectral response | 8um ~ 14um |
| Laser power | < 1mW |
| Auto power off | Yes |
| Low battery indication | Yes |
| LCD display | Color EBTN |
| High/low LED alarm | Yes |
| High/low audible alarm | Yes |
| Data hold/Lock measurement | Yes |
| °C/°F selection | Yes |
| MAX/MIN/AVG/DIFF mode | Yes |
| Data storage with date and time | 99 |
| Scheduled measurement | Yes |
| Backlight | Yes |
| Operating temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 1m |
| Tripod mounting hole | Yes |
| Power | 9V battery |
| Display | 35mm x 35mm |
| Product color | Red and grey |
| Product net weight | 310g |
| Product size | 172mm x 113.5mm x 53mm |
Applications
- Electrical Maintenance and Troubleshooting.

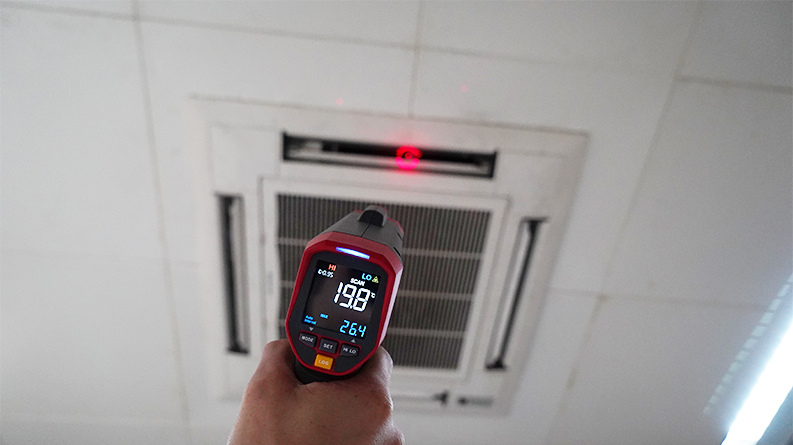

- HVAC System Inspection and Diagnostics.
- Mechanical Equipment Overheating Detection.

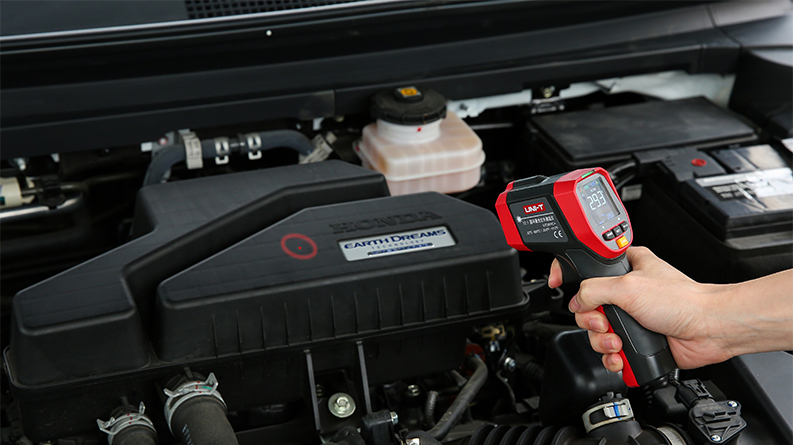

- Automotive Repair and Brake System Analysis.
- Building Inspection for Energy Loss and Moisture.
- Food Safety and Kitchen Equipment Monitoring.
- Industrial Process Control and Monitoring.
Package Contents
- 1 x UNI-T UT302D+ Infrared Thermometer with Dual Laser
- 1 x Battery 9V
- 1 x Carrying Bag
- 1 x Blister (packaging)
- 1 x English User Manual
- 1 x Gift Box
