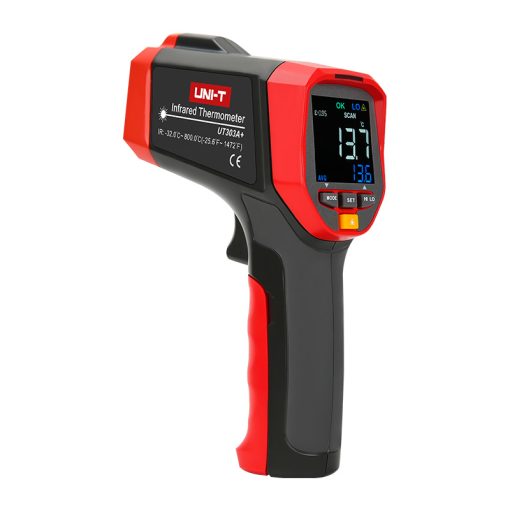

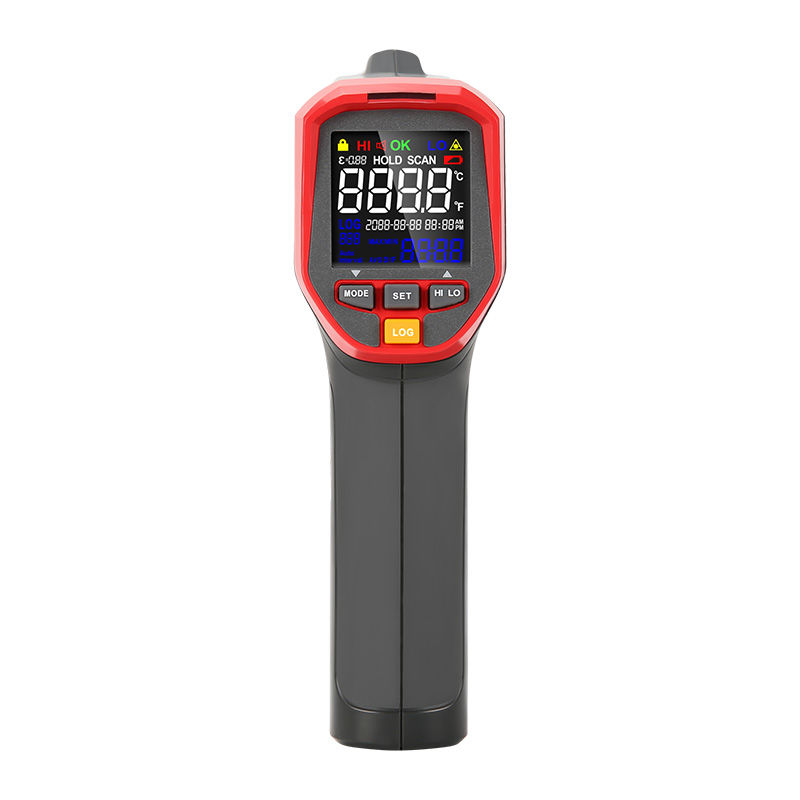

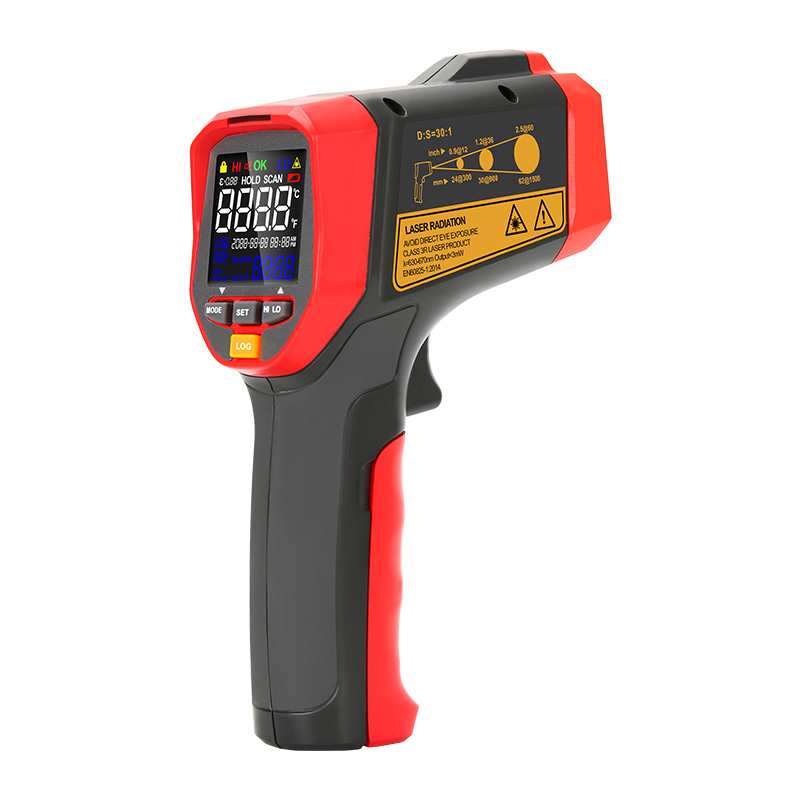

UNI-T UT303A+ Infrared Thermometer
The UNI-T UT303A+ Infrared Thermometer is a high-performance non-contact temperature measurement instrument that allows users to safely measure the surface temperature of hot, moving, or hard-to-reach objects without physical contact. Featuring a wide measurement range, fast response time, and 30:1 distance-to-spot ratio, it is ideal for maintenance engineers, electricians, HVAC technicians, automotive professionals, and industrial inspectors.
Equipped with a high-contrast color EBTN display, adjustable emissivity, laser targeting, audible and visual high/low temperature alarms, and MAX/MIN/AVG/DIFF measurement modes, the UT303A+ provides reliable and accurate readings across a variety of surface materials. Its ergonomic design, tripod mounting capability, and rugged construction make it suitable for both field service and workshop environments. This device is intended for measuring surface temperatures and is not a medical thermometer.
Features:
- ±1.5℃ temperature measurement accuracy.
- User defined visual and audio alarm.
- High contrast EBTN color display.
- MAX/MIN/AVG/DIFF/Hold modes.
- Dual lasers (UT302D+/UT303D+).
- Temperature recording up to 99 groups (UT302C+/UT303C+/UT302D+/UT303D+).
- Date/time display (UT302C+/UT302D+/UT303C+/UT303D+).
- Time scheduled measurement (UT302C+/UT303C+/UT302D+/UT303D+).
Specifications:
| Specifications | UT302A+ | UT302C+ | UT302D+ | UT303A+ | UT303C+ | UT303D+ |
| Temperature range | -32℃~700℃ | -32℃~1100℃ | -32℃~1100℃ | -32℃~800℃ | -32℃~1300℃ | -32℃~1300℃ |
| -25.6℉~1292℉ | -25.6℉~2012℉ | -25.6℉~2012℉ | -25.6℉~1472℉ | -25.6℉~2372℉ | -25.6℉~2372℉ | |
| Accuracy | ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃) | |||||
| ≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉) | ||||||
| Repeatability | 0.7℃ or 0.7% (1.5℉ or 0.7%) | |||||
| D:S ratio | 20:1 | 30:1 | ||||
| Response time | 250ms | |||||
| Emissivity | 0.1~1.0 (adjustable, stores 5 sets of preset values) | |||||
| Spectral response | 8um~14um | |||||
| Laser power | < 1mW | |||||
| Features | ||||||
| Auto power off | √ | |||||
| Low battery indication | √ | |||||
| LCD display | Color EBTN | |||||
| High/low LED alarm | √ | |||||
| High/low audible alarm | √ | |||||
| Data hold/Lock measurement | √ | |||||
| ℃/℉ selection | √ | |||||
| MAX/MIN/AVG/DIFF mode | √ | |||||
| Data storage with date and time | 99 | 99 | 99 | 99 | ||
| Scheduled measurement | √ | √ | √ | √ | ||
| Backlight | √ | |||||
| Operating temperature | 0℃~50℃ (32℉~122℉) | |||||
| Storage temperature | -20℃~60℃ (-4℉~140℉) | |||||
| Operating humidity | <90%RH (non-condensing) | |||||
| Drop test | 1m | |||||
| Tripod mounting hole | √ | |||||
| General Characteristics | ||||||
| Power | 9V battery | |||||
| Display | 35mm x 35mm | |||||
| Product color | Red and grey | |||||
| Product net weight | 310g | |||||
| Product size | 172mm x 113.5mm x 53mm | |||||
| Standard accessories | Battery, carrying bag | |||||
| Standard individual packing | Gift box, blister, English manual | |||||
| Standard quantity per carton | 10pcs | |||||
| Standard carton measurement | 425mm x 335mm x 365mm | |||||
| Standard carton gross weight | 6.65kg | |||||
Applications:
- Electrical panel inspection.
- HVAC maintenance.
- Motor and bearing temperature monitoring.
- Industrial equipment maintenance.
- Mechanical system diagnostics.

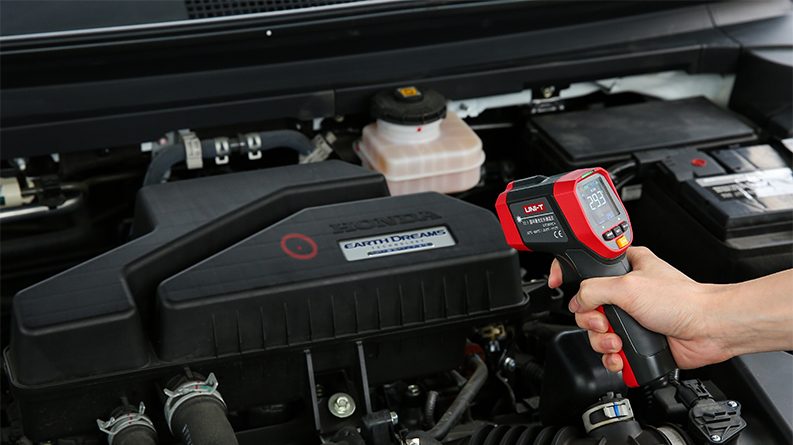

- Automotive troubleshooting.
- Food processing equipment inspection.
- Manufacturing quality control.
- Boiler and furnace inspection.
- Conveyor system monitoring.
- Laboratory surface temperature measurement.
- Preventive maintenance.
Package Includes:
- 1 × UNI-T UT303A+ Infrared Thermometer.
- 1 × Carrying Bag.
- 1 × User Manual.
