UNI-T UT334A Radiation Dose Tester
UNI-T UT334A Radiation Dose Tester is a compact radiation dose tester detecting X, β, γ rays, featuring alarms, long battery life for portable safety checks.
3,150.00 EGP
Buy NowUNI-T UT334A Radiation Dose Tester

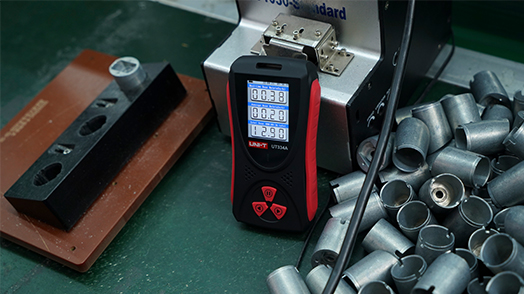

UNI-T UT334A Radiation Dose Tester is a compact, handheld radiation dose tester engineered for precise monitoring of ionizing radiation in diverse environments. Housed in a durable red‑and‑grey enclosure measuring just 120 × 65 × 25 mm and weighing a mere 127 g, it blends portability with robust measurement capabilities. At its core lies a high‑sensitivity Geiger Müller counter tube that swiftly detects and quantifies beta (β), gamma (γ) and X‑ray emissions, delivering real‑time dose rates and cumulative dose readings.
Users benefit from intuitive audible and visual alarms that trigger upon exceeding preset thresholds, alongside built‑in data storage for up to ten measurement groups, facilitating later review. A rechargeable 3.7 V/1 800 mAh Li‑ion battery ensures continuous operation for roughly 20 days between charges, while the modern Type‑C interface streamlines recharging.
Whether deployed in industrial non‑destructive testing, geological surveys, or personal dose supervision, the UT334A offers reliable, user‑friendly performance in a pocket‑sized package.
Features
- TFT 2.0” color screen.
- High sensitive GM counter tube.
- Combined Beta(β ), Gamma(γ), and X-ray radiation.
- Real-time, Average, and Cumulative dose display.
- Audible and visual alarms.
- Two Monitoring Mode.
- Data storage.
- Portable device.
Specifications
| Parameter | Details |
|---|---|
| Detected Rays | X, β and γ Rays |
| Sensor | GM Counter Tube |
| Range | 0.05 uSv ~ 50 mSv |
| Accuracy | -17% ~ +25% Based on 137Cs γ |
| Charging Interface | Type-C |
| Alarm Response Time | Td: < 10 s |
| Alarm Threshold Accuracy | -17% ~ +25% |
| Alarm Modes | Audio and Visual Alarms |
| Battery | 3.7 V Li-ion 1800 mAh |
| Battery Duration | About 20 Days (Continuous Measurement, Particle Sound Off) |
| Product Color | Red and Grey |
| Product Net Weight | 127g |
| Product Size | 120mm x 65mm x 25mm |
| Standard Accessories | USB Cable |
Applications
- Home decoration.
- Radiation processing enterprises.
- Health and epidemic prevention.
- Radiation therapy.
- Import and export inspection.
- Building materials testing.
- Petrochemical industries.
- Geological surveys.
- Scrap steel inspection.
- Industrial non‑destructive testing.
- Personal radiation dose supervision and protection.
Package Contents
- 1 x UNI-T UT334A Radiation Dose Tester
- 1 x Carrying bag
- 1 x Hand strap
- 1 x USB cable
- 1 x User manual
- 1 x Gift box
