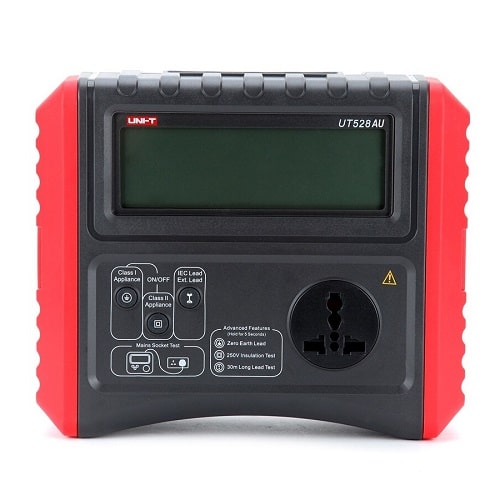

Uni-T UT528AU Portable Appliance Tester (PAT)
The UNI-T UT528AU Portable Appliance Tester (PAT) is a multifunction electrical safety tester designed for testing the electrical safety of appliances, extension leads, and IEC leads. Configured for Australian and New Zealand electrical standards, the UT528AU performs automatic test sequences after selecting the appropriate Class I, Class II, or cord-testing mode, then displays individual measurements and an overall PASS/FAIL result.
Features:
- Configured for Australian and New Zealand electrical standards.
- Performs automatic test sequences.
- Supports Class I appliance testing.
- Supports Class II appliance testing.
- Supports IEC lead and extension lead testing.
- Measures earth continuity resistance.
- Measures insulation resistance.
- Measures leakage current.
- Performs cord polarity testing.
- Built-in mains socket wiring tester.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model Number | UT528AU |
| Product Type | Portable Appliance Tester |
| Standards Configuration | AS/NZS |
| Testing Type | Automatic PAT Testing |
| Class I Testing | Earth Continuity, Insulation, Leakage |
| Class II Testing | Insulation, Leakage |
| Cord Testing | Earth Bond, Insulation, Polarity |
| Insulation Resistance Range | 0.20–19.99MΩ |
| Insulation Test Voltage | 250V/500V |
| Insulation Accuracy | ±(5%+2) |
| Insulation Test Current | >1mA at R=500kΩ |
| Insulation Short-Circuit Current | <3mA |
| Class I Resistance Range | 0.00–19.99Ω |
| Earth Continuity Test Current | >200mA |
| Earth Continuity Test Voltage | 5VDC Nominal |
| Earth Continuity Accuracy | ±(5%+2) |
| Earth Continuity PASS Limits | 0.1Ω/0.2Ω/0.3Ω |
| Leakage Current Range | 0.10–10.5mA |
| Leakage Accuracy | ±(5%+2) |
| Leakage Test Voltage | 50Vrms |
| Leakage Test Frequency | 50HzAC |
| Class II Leakage PASS Limit | 5mA |
| Cord Test | Correct Wiring, Open Circuit, Short Circuit, Reversed Wiring |
| Mains Input | 220VAC±10% |
| Power Supply | 6×1.5V C Batteries |
| Battery Type | R14 or LR14 |
| Display Size | 136x47mm |
| Display | LCD |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Product Color | Red and Grey |
| Dimensions | 210x178x90mm |
Applications:
- Portable appliance testing.
- Class I appliance safety testing.
- Class II appliance safety testing.
- IEC lead testing.
- Extension lead testing.
- Electrical equipment maintenance.
- Electrical safety inspection.
- Workshop appliance testing.
- Service and repair operations.
- Electrical contractor testing.
- IT equipment safety testing.
- Testing extension leads longer than 30m.
- Mains socket wiring verification.
Package Include:
- 1x UT528AU Main Unit
- 1x Operating Manual
- 1x Earth Bond Lead
- 1x Alligator Earth Bond Clip
- 1x Earth Nulling Block
- 1x Neck Strap
- 1x IEC Lead
