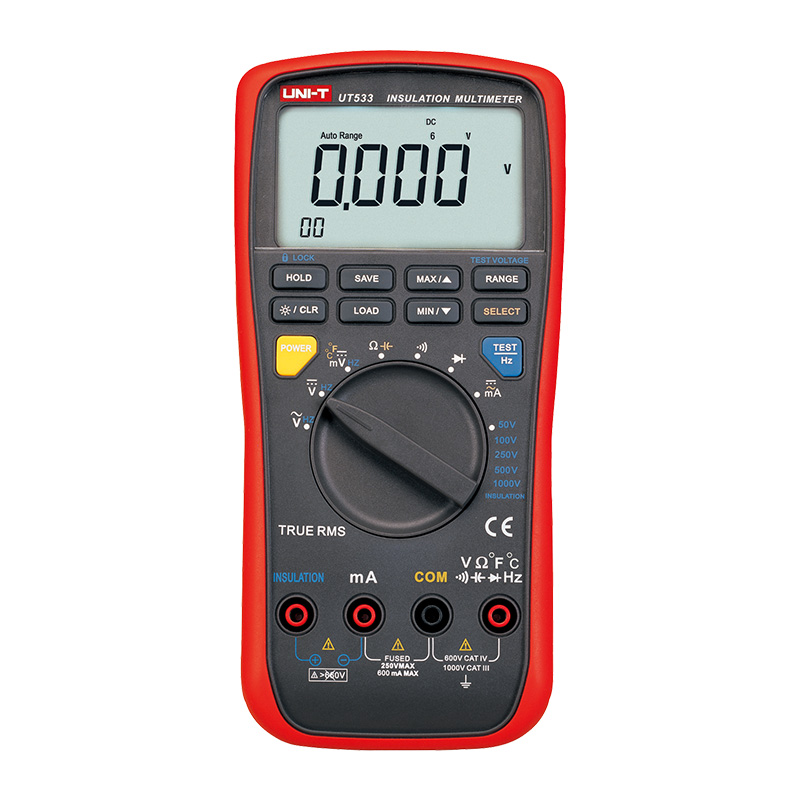

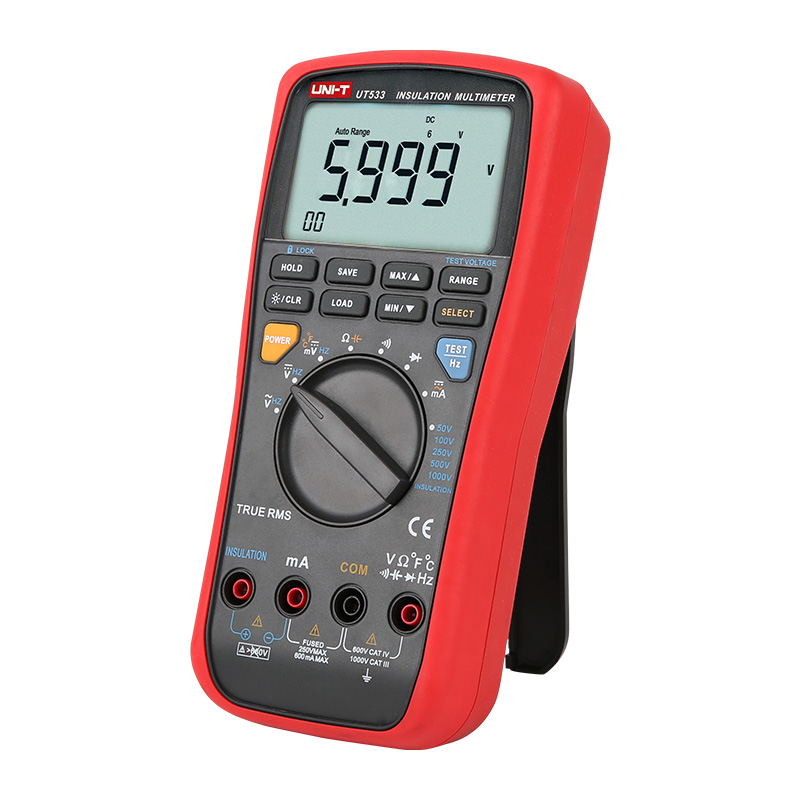

UNI-T UT533 Insulation Multimeter
UNI-T UT533 Insulation Multimeter combines a True RMS DMM with insulation testing up to 1000V/2GΩ, plus voltage, current, and temperature measurements.
8,900.00 EGP
Buy NowUNI-T UT533 Insulation Multimeter
The UNI-T UT533 Insulation Multimeter is a multifunction True RMS digital multimeter and insulation resistance tester designed for electrical testing, maintenance, troubleshooting, and laboratory applications. It combines conventional digital multimeter functions with high-voltage insulation resistance testing, allowing technicians to perform multiple electrical measurements using a single instrument.
Features:
- True RMS digital multimeter and insulation tester in one instrument.
- Insulation resistance measurement from 0.1MΩ to 2GΩ.
- Selectable insulation test output from 50V to 1000V.
- AC/DC voltage measurement up to 1000V.
- AC/DC current measurement from 60mA to 600mA.
- Resistance measurement from 600Ω to 40MΩ.
- Capacitance measurement from 10nF to 100uF.
- Frequency measurement from 60Hz to 1MHz.
- Temperature measurement from -40°C to 537°C
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model Number | UT533 |
| Product Type | Insulation Multimeter |
| Measurement Type | True RMS Digital Multimeter + Insulation Tester |
| Insulation Resistance Range | 0.1MΩ–2GΩ |
| Insulation Resistance Accuracy | ±(5%+5) |
| Insulation Test Voltage | 50–1000V |
| AC Voltage Range | 6V–1000V |
| AC Voltage Accuracy | ±(2%+3) |
| DC Voltage Range | 6mV–1000V |
| DC Voltage Accuracy | ±(0.3%+4) |
| AC Current Range | 60mA–600mA |
| AC Current Accuracy | ±(1.5%+2) |
| DC Current Range | 60mA–600mA |
| DC Current Accuracy | ±(1.0%+2) |
| Resistance Range | 600Ω–40MΩ |
| Resistance Accuracy | ±(1.5%+3) |
| Capacitance Range | 10nF–100uF |
| Capacitance Accuracy | ±(3%+5) |
| Frequency Range | 60Hz–1MHz |
| Frequency Accuracy | ±(0.1%+3) |
| Temperature Range | -40°C–537°C |
| Temperature Accuracy | ±(1%+10) |
| Display Count | 5999 |
| Display Size | 81x46mm |
| Diode Test | Yes |
| Continuity Test | Yes |
| Range Selection | Auto/Manual |
| Backlight | Yes |
| MAX/MIN | Yes |
| Data Hold | Yes |
| Low Battery Indication | Yes |
| Auto Power Off | Yes |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Insulation Design | Double Insulation |
| Power Supply | 6×1.5V LR6 |
| Dimensions | 96.7×202.8x46mm |
| Certifications | CE, RoHS |

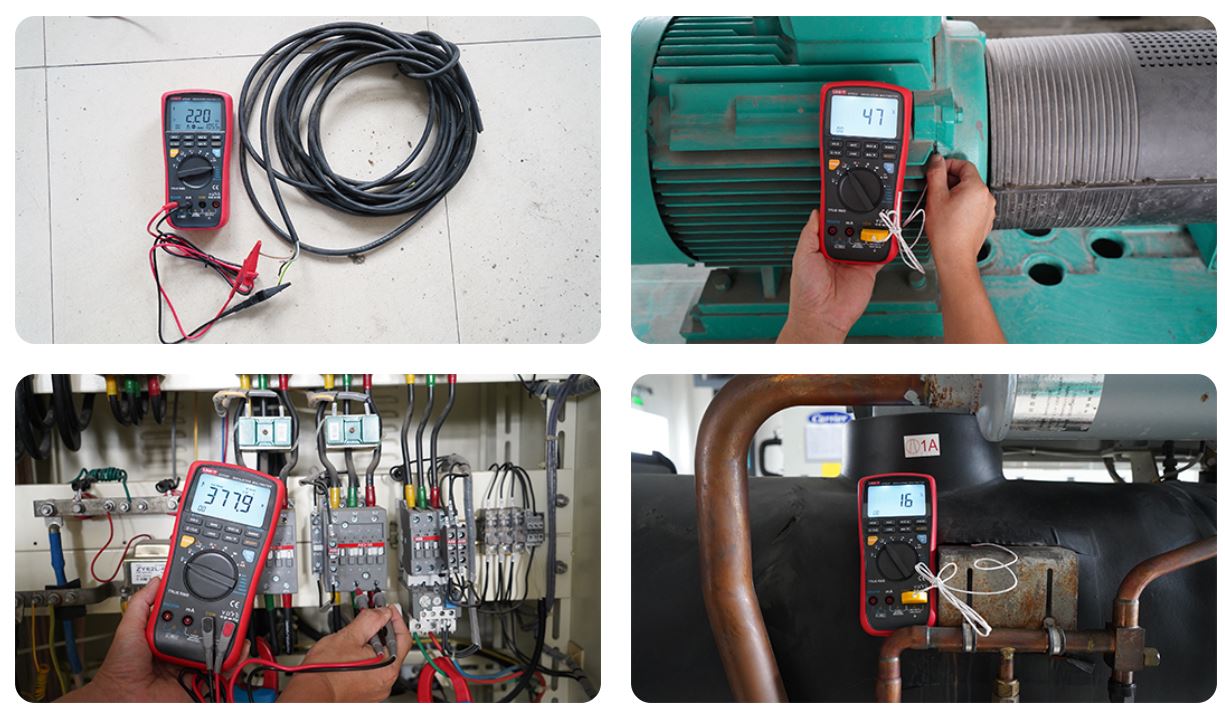

Applications:
- Electrical insulation resistance testing.
- Electrical installation inspection.
- Motor insulation testing.
- Transformer insulation testing.
- Cable and wiring insulation testing.
- Electrical equipment maintenance.
- Industrial electrical troubleshooting.
- Laboratory electrical measurements.
- Electronic equipment testing.
- Field electrical diagnostics.
- General AC/DC voltage and current measurement.
- Capacitance and frequency measurement.
- Temperature measurement.
Package Include:
- 1x Users Manual.
- 1x Test Lead.
- 1x Short Lead.
- 1x Alligator Clip.
- 1x K-type Thermocouple.
- 1x Batteries.
