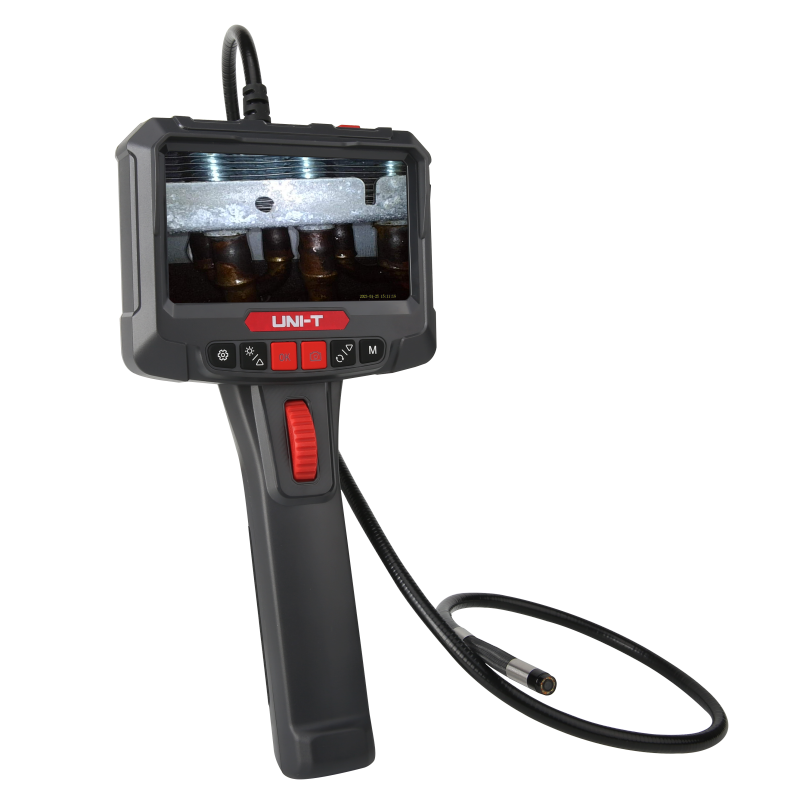

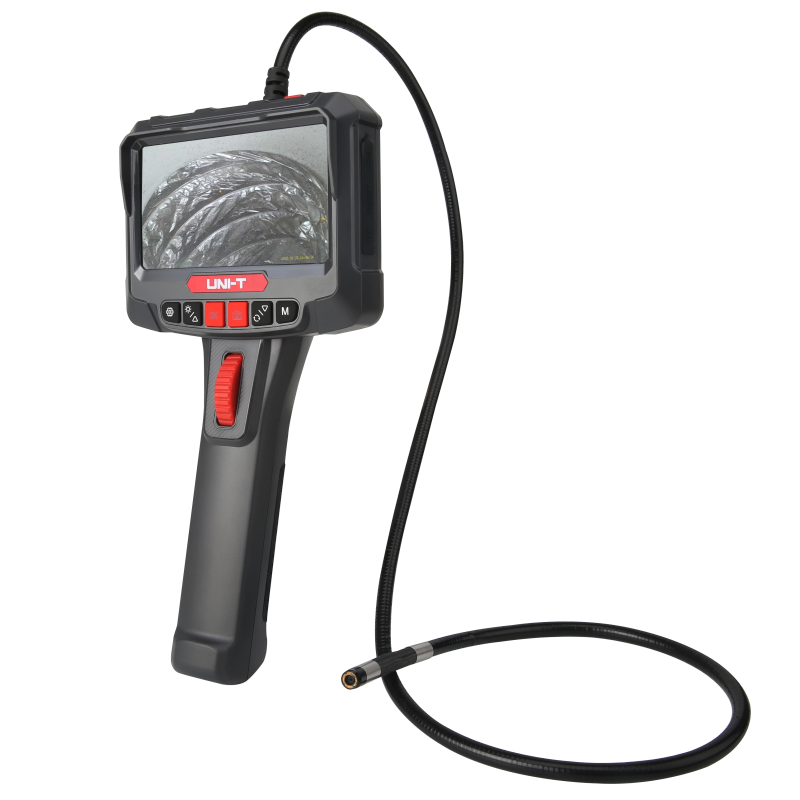

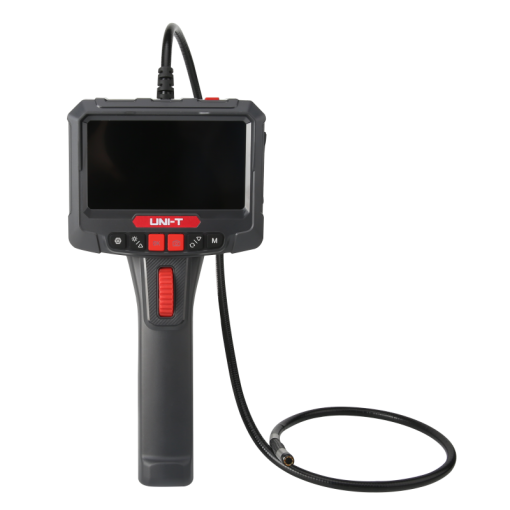

UNI-T UT663B-2m Rotatable Industrial Borescope
UNI-T UT663B-2m Rotatable Industrial Borescope is a professional inspection camera designed for viewing hard-to-reach areas in industrial, automotive, and maintenance applications. It features a 5-inch HD color display, 1920×1080 photo and video recording, an 8mm IP67 waterproof camera, and a 180° bidirectional rotating probe for flexible inspection. Equipped with 8 adjustable LED lights, a rechargeable 3.7V/3000mAh battery, 32GB TF storage, and Type-C charging, it provides reliable performance for pipeline, machinery, HVAC, and engine diagnostics.
Features
- 5-inch HD color display for clear inspection images.
- 1920×1080 photo and video recording.

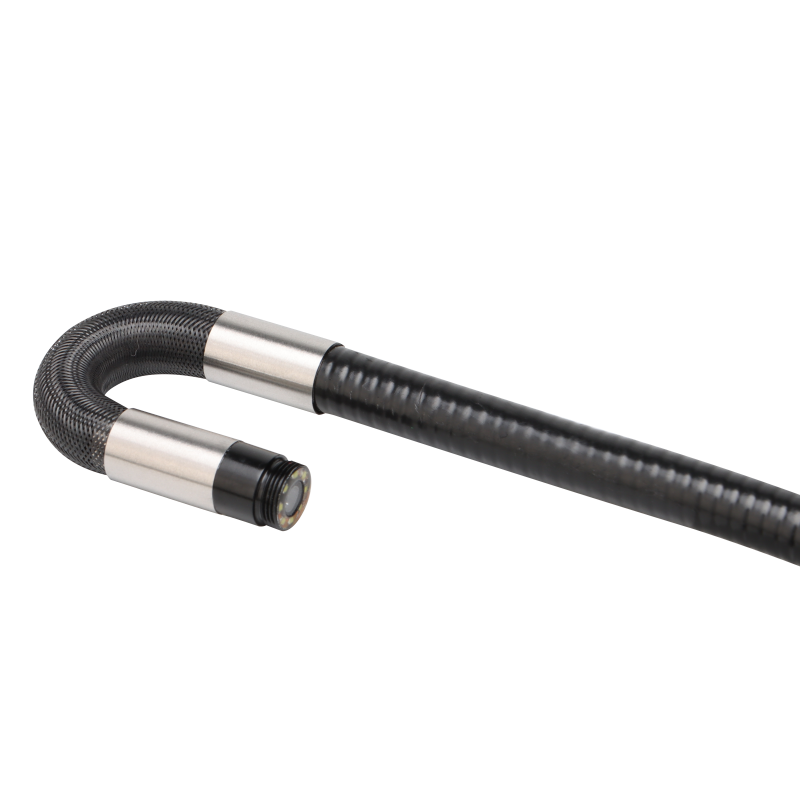

- 180° bidirectional rotating camera head for flexible viewing.
- 8mm CMOS camera for narrow space inspection.
- IP67 waterproof camera probe.
- Eight adjustable LED lights for dark environments.
- Supports photo capture and video recording.
- Built-in playback function.
- Image rotation function for easier viewing.
- Audio recording capability.
- High-temperature warning and protection.
- 32GB TF card included with support up to64GB.
- Rechargeable 3.7V/3000mAh lithium battery.
- Up to4 hours of continuous operation.
- Convenient Type-C charging interface.
- Supports multiple system languages.
Specifications
|
Parameter |
Details |
|---|---|
|
Brand |
UNI-T |
|
Model |
UT663B-2m |
|
Product Type |
Industrial Borescope |
|
Display Size |
5inch HD Color Screen |
|
Image Resolution |
1920×1080 JPG |
|
Video Resolution |
1920×1080 AVI |
|
Camera Sensor |
CMOS |
|
Lens Diameter |
8mm |
|
Field Of View |
70° |
|
Viewing Angle |
178° |
|
Depth Of Field |
20mm~100mm |
|
Camera Rotation |
180° Bidirectional |
|
Probe Length |
2m |
|
LED Lights |
8 Adjustable LEDs |
|
LED Brightness |
4 Levels |
|
Camera Protection |
IP67 |
|
Storage |
32GB TF Card Standard, Up To64GB |
|
Battery Type |
Rechargeable Lithium Ion |
|
Battery Capacity |
3.7V/3000mAh |
|
Battery Life |
Up To4 Hours |
|
Charging Port |
Type-C |
|
Photo Capture |
Supported |
|
Video Recording |
Supported |
|
Playback |
Supported |
|
Image Rotation |
Supported |
|
Audio Recording |
Supported |
|
High Temperature Protection |
Supported |
|
Lens Operating Temperature |
0°C~80°C |
|
Operating Temperature |
0°C~45°C |
|
Operating Humidity |
<90%RH Non Condensing |
|
System Languages |
English, Simplified Chinese, Traditional Chinese, Japanese, German, Spanish, French, Italian, Korean |
Applications
Package Contents
- 1 x UNI-T UT663B-2m Industrial Borescope Unit
- 1 x Type-C Cable Charging Cable
- 1 x User Manual
- 1 x Gift Box
- 1 x Cloth Bag
- 1 x 32GB TF Memory Card
