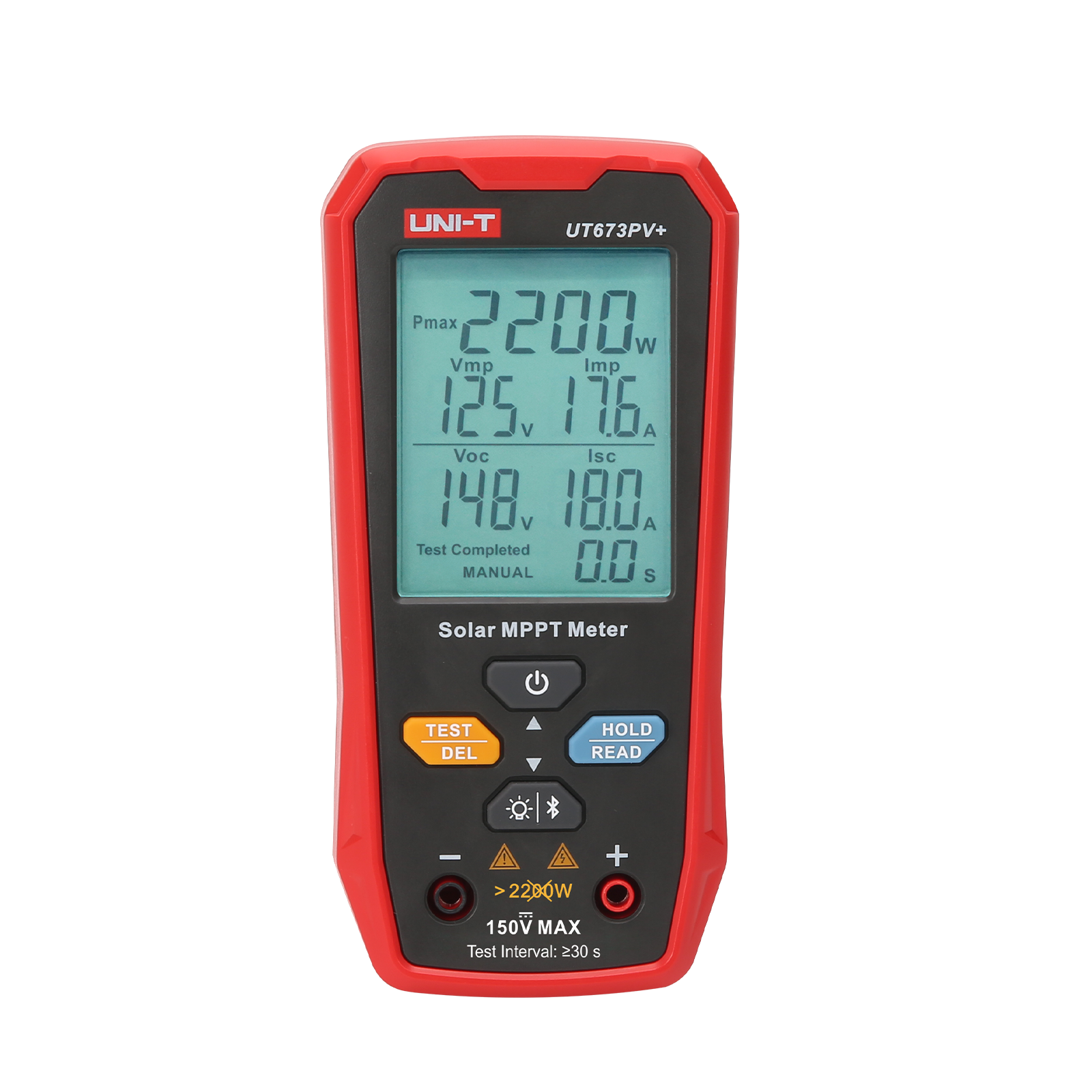

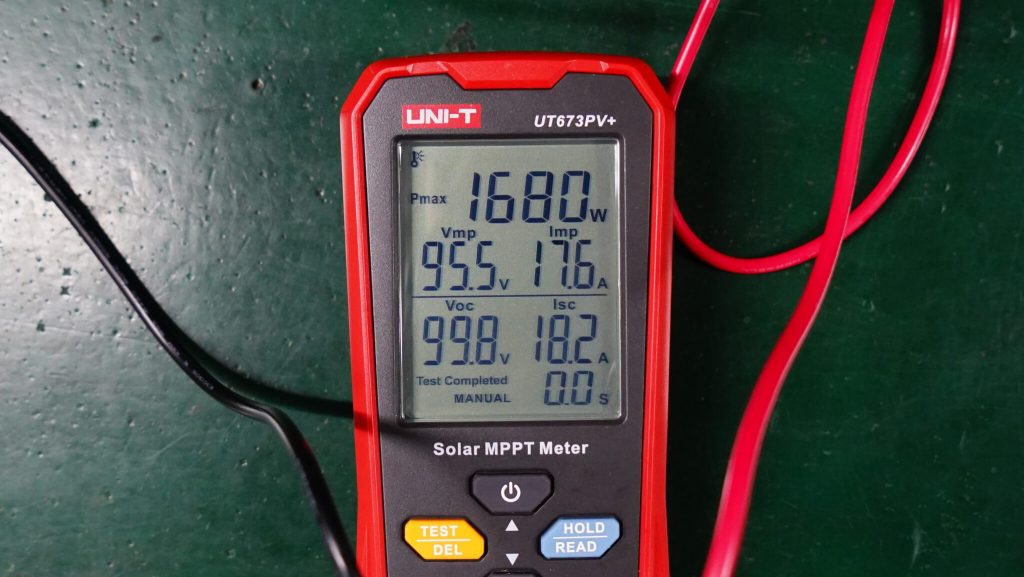

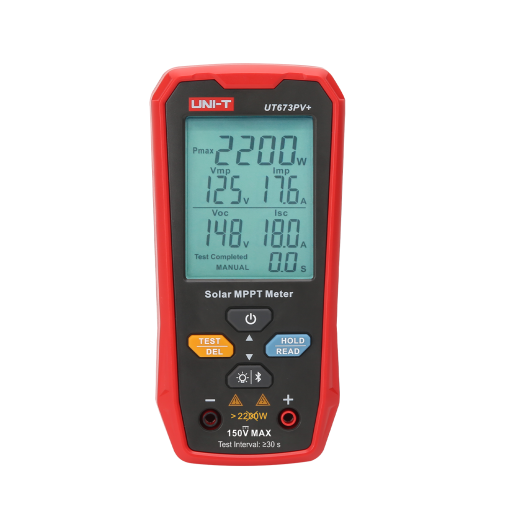

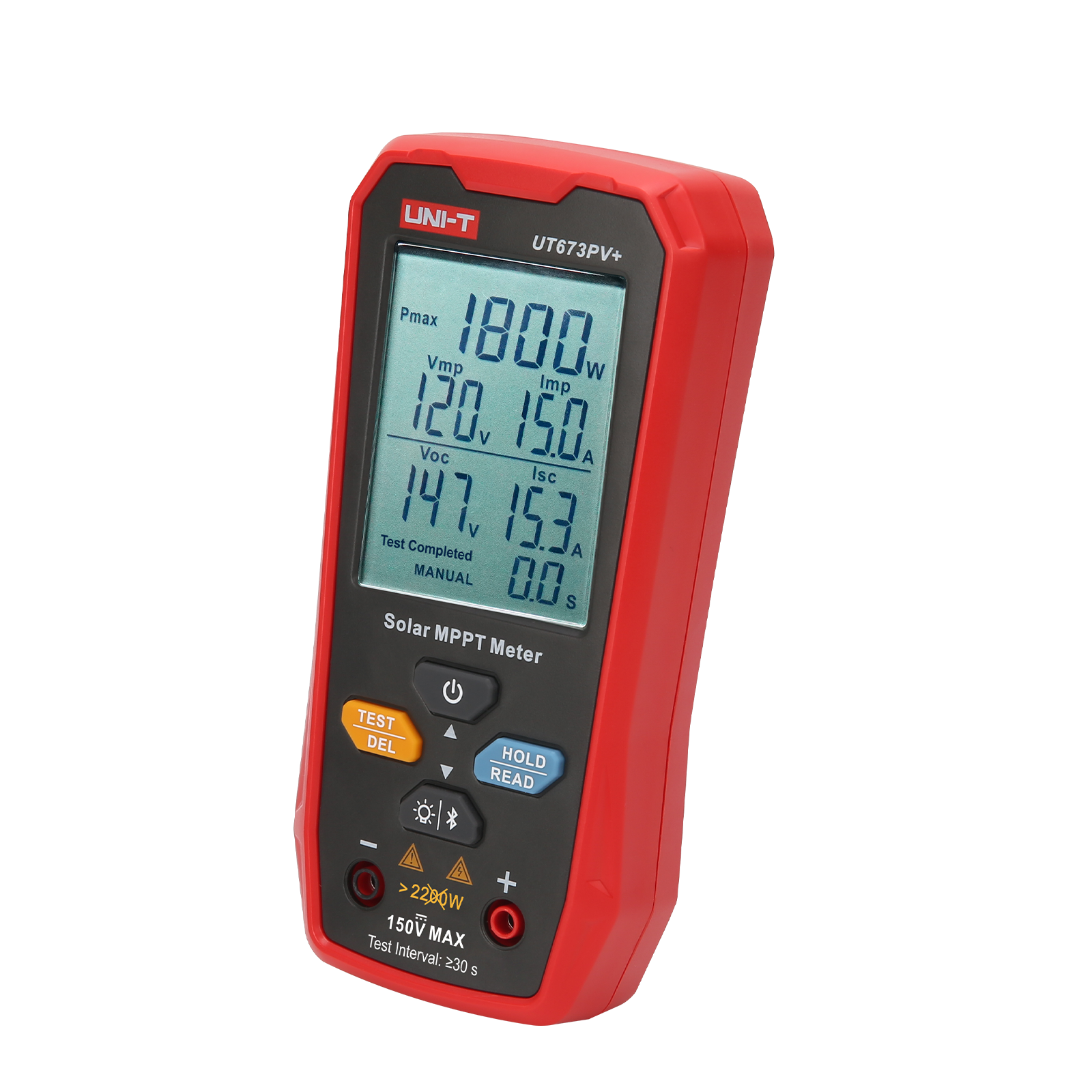

UNI-T UT673PV+ Solar MPPT Meter
The UNI-T UT673PV+ Solar MPPT Meter is designed for testing and evaluating photovoltaic solar panels in installation, maintenance, and troubleshooting applications. It measures maximum power (Pmax), peak power voltage (Vmp), peak power current (Imp), open-circuit voltage (Voc), and short-circuit current (Isc). Its large LCD displays measurement results clearly, while its manual MPPT testing function helps users assess solar panel output characteristics and identify potential performance issues.
This model includes Bluetooth connectivity for compatible mobile app use, data storage, data hold, and protective functions against reverse polarity, overvoltage, overcurrent, excessive temperature, and overpower conditions. It is suitable for solar panel installers, photovoltaic system maintenance technicians, solar equipment suppliers, and renewable energy professionals who need a portable instrument for field testing.
Features:
- Maximum power test (Pmax) 5～2200W.
- Peak power voltage (Vmp) 10～150V.
- Peak power current (Imp) 0～20A.
- Open circuit voltage (Voc) 10～150V.
- Short circuit current (Isc) 0～20A.
- Large screen and multiple result display.
Specification:
| Parameter | Specification |
|---|---|
| Brand | UNI-T |
| Model | UT673PV+ |
| Product Type | Solar MPPT Meter |
| Maximum Power (Pmax) | 5–2200W |
| Peak Power Voltage (Vmp) | 10–150V |
| Peak Power Current (Imp) | 0–20A |
| Open-Circuit Voltage (Voc) | 10–150V |
| Short-Circuit Current (Isc) | 0–20A |
| Pmax Accuracy | ±(1.0% + 10 digits) |
| Voltage Accuracy | ±(1.5% + 5 digits) |
| Current Accuracy | ±(1.5% + 5 digits) |
| Display Type | Large LCD |
| Display Size | 52 × 66mm |
| Bluetooth | Yes |
| Data Hold | Yes |
| Data Storage | Yes |
| MPPT Test Mode | Manual |
| Reverse Polarity Protection | Yes |
| Overvoltage Protection | Yes |
| Overcurrent Protection | Yes |
| Overtemperature Protection | Yes |
| Overpower Protection | Yes |
| Safety Category Rating | CAT 0, 150V |
| Power Supply | 3 × AAA 1.5V batteries |
| Product Color | Red and black |
| Product Dimensions | 169 × 81 × 46mm |
| Certifications | CE, cETLus, RoHS |
Applications:

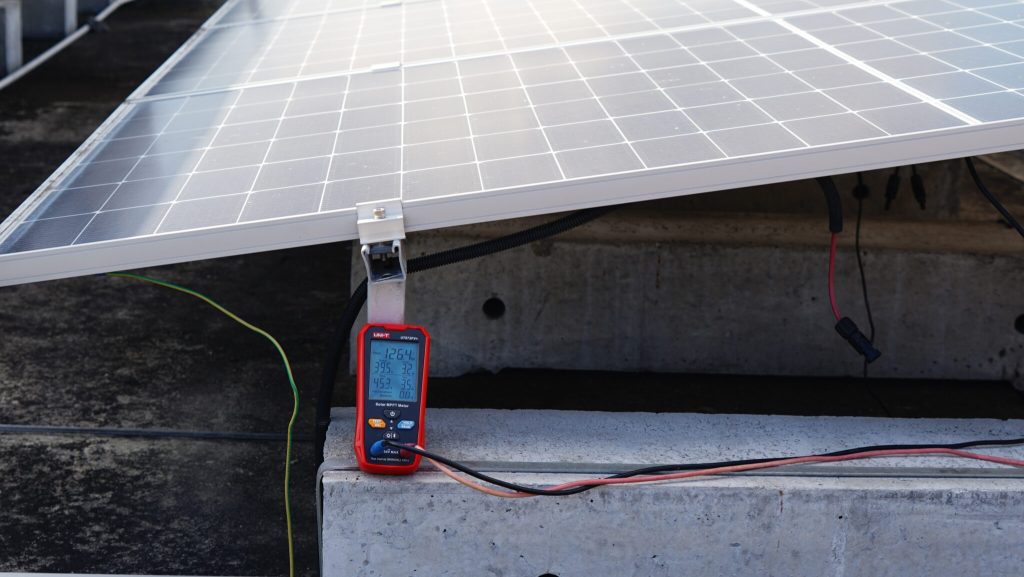

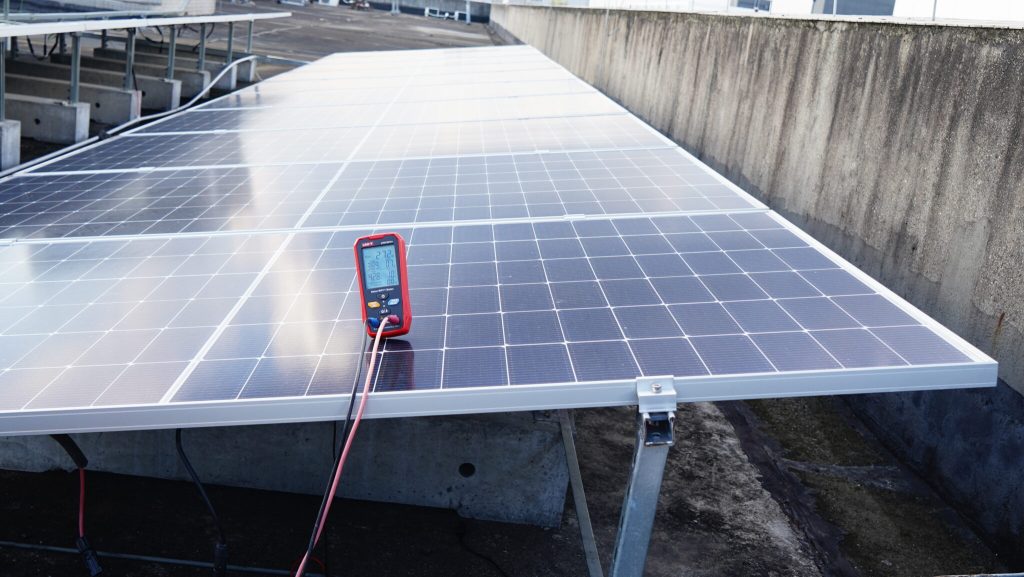

- Solar panel installation and commissioning
- Photovoltaic panel performance testing
- Solar system troubleshooting
- Solar panel maintenance and inspection
- Renewable energy system servicing
- Solar panel quality checks
- Voc and Isc testing
- Maximum power output evaluation
Package Includes:
- 1x User manual.
- 1x MC4 cable (UT-L101).
- 1x Warranty certificate.
- 1x Dedicated photovoltaic tools.
- 2x 1.5V AA battery.
