UNI-T UT695D-10 Optical Multimeter

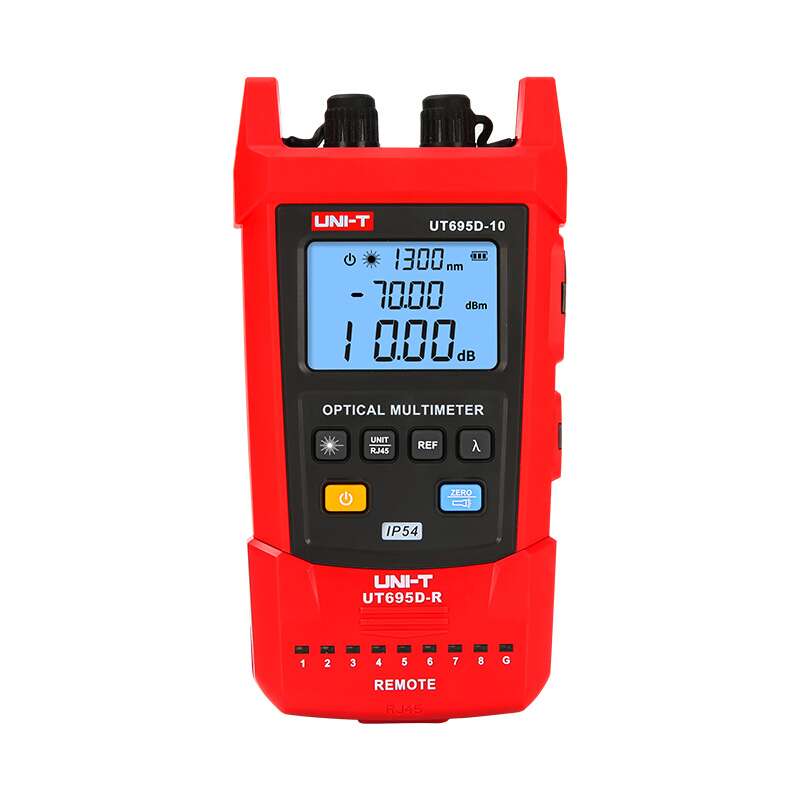

The UT695D-10 positions itself as a versatile, compact optical multimeter built for field use in fiber optic networks. Its design is sleek but functional, with grip-friendly sides and a robust build suited for handling in outdoor or onsite environments. The front is dominated by the display and control buttons, while optical and electrical interfaces are sensibly placed for rapid connection.
In operation, the UT695D-10 combines multiple optical testing functions into one handheld device. It measures absolute optical power, computes relative signal loss, and provides a built-in visual fault locator (VFL). The device guides the user through different modes intuitively, switching from power measurement to cable test or to fault location. The display is backlit, letting users read measurements even under less-than-ideal lighting, and its built-in flashlight aids in darker installations. The multifunction nature means technicians carry fewer instruments, letting them tackle multiple optical tasks with a single tool.
On real jobs such as installing optical cables, verifying splice losses, or diagnosing fiber breaks the UT695D-10 becomes a practical companion. Its integrated LAN cable test, VFL, and optical power measurement streamline workflows. The rugged design (with IP54 protection) ensures it survives dust and moisture in the field. Over time, its convenience, combined functionality, and reliability make it a preferred tool in optical fiber communication deployments, maintenance, or upgrades.
Features:
- Visual Fault Locator function (10 mW).
- LAN cable sequence test mode.
- Simultaneous display of linear (mW) and logarithmic (dBm) power.
- IP54 dust and water resistance.
- Auto power off.
- Wavelength memory (remembers last used wavelength).
- User self-calibration capability.
- Backlight & flashlight for low light use.
- Low battery indication.
Specifications:
| Specifications | UT695D-10 | |
| Optical power meter | Wavelength range | 800nm~1700nm |
| Calibrated wavelength | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm | |
| Measurement range | -70~3dBm | |
| Uncertainty | ±5% | |
| Display resolution | Linear: 0.1%, logarithmic: 0.01dBm | |
| Connector | FC/SC/ST | |
| Detector type | InGaAs | |
| Visual fault locator | Wavelength | 650nm±10nm |
| Power | 10mW (measurable optical fiber length: approximately 8~10km) | |
| Mode | Continuous/Pulse | |
| Connector | FC/SC/ST | |
| Flashlight | √ | |

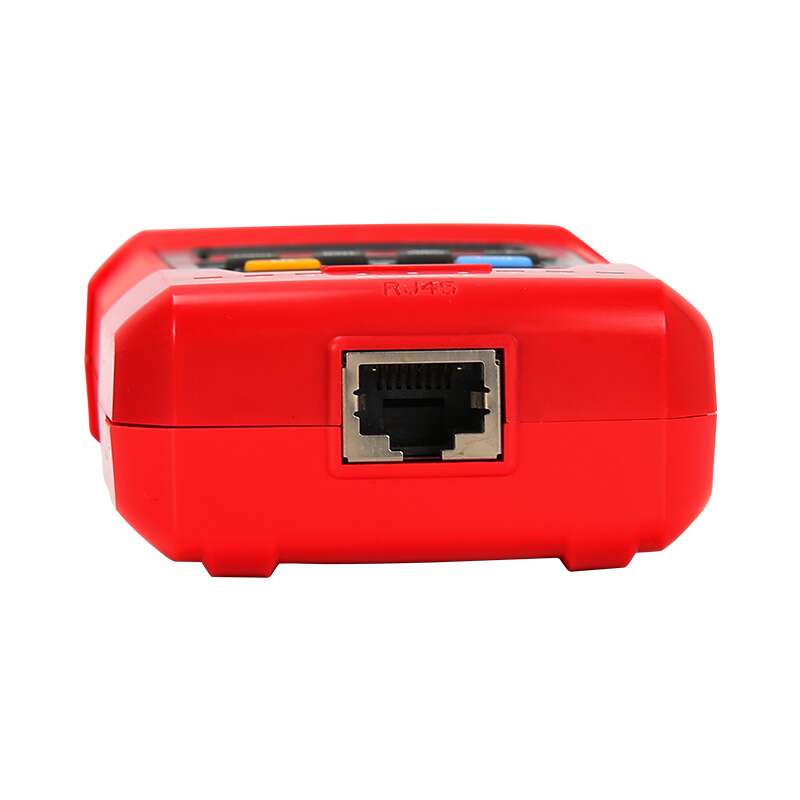

| LAN cable sequence test | Line sequence measurement (LED1~8, LED_G) | |
| General Characteristics | ||
| Power | 1050mAh rechargeable battery | |
| Display | 42mm x 33mm | |
| Product color | Red and grey | |
| Product net weight | 168g | |
| Product size | 132mm x 68mm x 31mm | |
Applications:
- Optical fiber power measurement.
- Fiber line loss / insertion loss testing.
- Fault location in fiber networks.
- LAN / cable sequence verification in fiber installations.
- Optical network construction and maintenance.
Package Contents:
- 1x UT695D-10 optical multimeter unit
- 1x USB charging cable
- 1x English user manual
