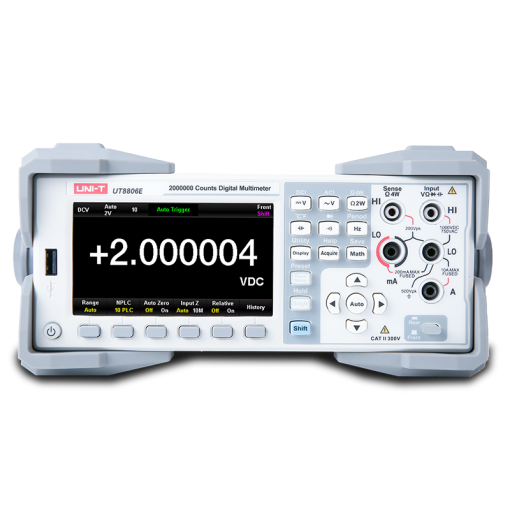

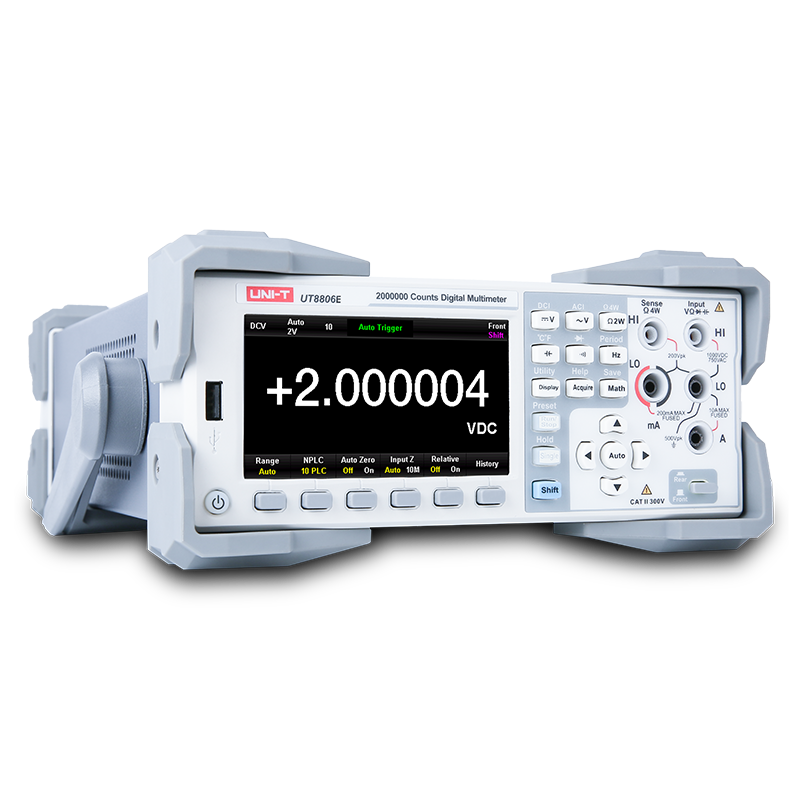

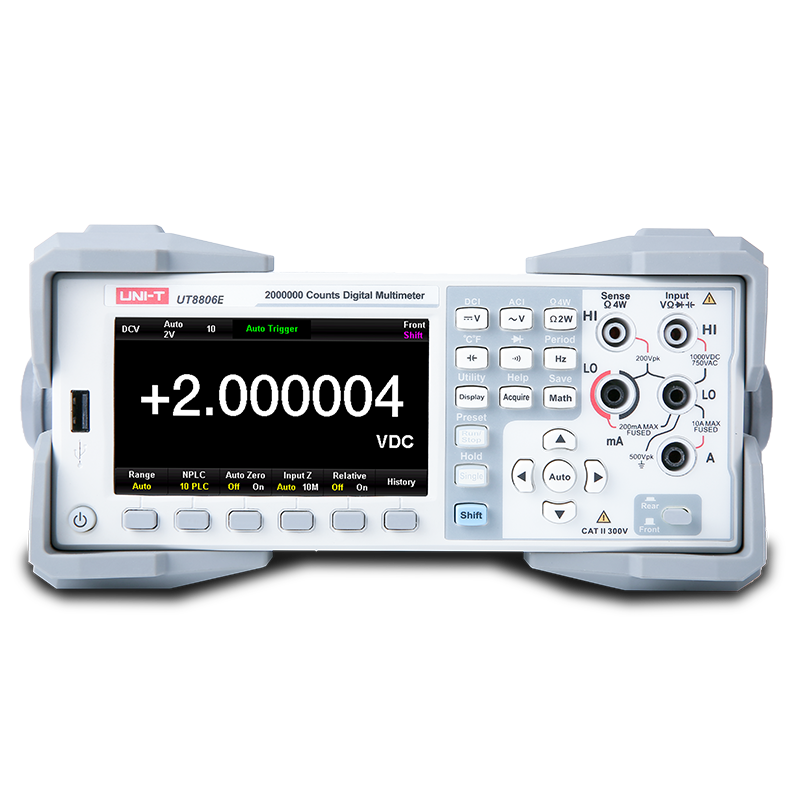

UNI-T UT8806E 6½-digit desktop digital multimeter
The UNI-T UT8806E 6½-digit bench digital multimeter delivers high-precision True RMS measurements, 2,000,000 counts, 10,000 readings/s, and automated test connectivity.
45,000.00 EGP
In stockSKU 3496300163663
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
UNI-T UT8806E 6½-digit desktop digital multimeter
The UNI-T UT8806E 6½-digit desktop digital multimeter is a high-precision measurement instrument designed for research laboratories, electronics development, production testing, quality control, and automated test systems. Combining a 2,000,000-count display with advanced measurement functions, fast sampling, and multiple communication interfaces, it provides a versatile platform for accurate electrical characterization and repeatable measurements.
Features:
- 6½-digit digital multimeter measurement resolution with a maximum display of 2,000,000 counts.
- Fast measurement rate of up to 10,000 readings per second.
- DC voltage measurement from 200mV to 1000V.
- True RMS AC voltage measurement from 200mV to 750V.
- DC current measurement from 2μA to 10A.
- True RMS AC current measurement from 200μA to 10A.
- 2-wire and 4-wire resistance measurement up to 1GΩ.
- Capacitance measurement up to 100mF.
- Frequency measurement from 3Hz to 1MHz and period measurement from 1μs to 0.333s.
- Continuity and diode testing with adjustable continuity thresholds.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model | UT8806E |
| Product Type | 6½-digit desktop digital multimeter |
| Display Resolution | 6½ digits |
| Maximum Display Count | 2,000,000 counts |
| Display Type | 4.3-inch TFT-LCD |
| Display Resolution | 480×272 pixels |
| Maximum Measurement Rate | 10,000 readings/s |
| DC Voltage Ranges | 200mV, 2V, 20V, 200V, 1000V |
| DC Voltage Accuracy, 24h | ±(0.0015% of reading + 0.0004% of range) on the 2V range under specified calibration conditions |
| DC Voltage Accuracy, 1 Year | ±(0.0035% of reading + 0.0006% of range) on the 2V range under specified calibration conditions |
| DC Voltage Input Resistance | 10MΩ or greater than 10GΩ on the 200mV, 2V, and 20V ranges; 10MΩ on the 200V and 1000V ranges |
| AC Voltage Ranges | 200mV, 2V, 20V, 200V, 750V |
| AC Voltage Measurement | True RMS |
| AC Voltage Frequency Response | 3Hz–300kHz, depending on filter setting and measurement conditions |
| DC Current Ranges | 2μA, 20μA, 200μA, 2mA, 20mA, 200mA, 2A, 10A |
| AC Current Ranges | 200μA, 2mA, 20mA, 200mA, 2A, 10A |
| AC Current Measurement | True RMS |
| Resistance Ranges | 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 100MΩ, 1GΩ |
| Resistance Measurement Modes | 2-wire and 4-wire |
| Capacitance Ranges | 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, 2mF, 20mF, 100mF |
| Continuity Test | Up to 2kΩ, adjustable threshold |
| Diode Test Range | 0–4V |
| Frequency Measurement | 3Hz–1MHz |
| Period Measurement | 1μs–0.333s |
| Temperature Measurement | Thermocouples and resistance temperature sensors |
| Supported Thermocouples | B, E, J, K, N, R, S, T |
| Supported Resistance Temperature Sensors | Pt100 and compatible resistance sensors, including 5kΩ thermistors |
| Temperature Probe Accuracy | Depends on the selected probe; specifications include probe accuracy of ±0.5°C for E, J, K, N, R, and T thermocouples |
| Mathematical Functions | Maximum, minimum, average, standard deviation, relative, dB, dBm, Pass/Fail, and hold |
| Display Modes | Numeric, bar graph, trend graph, and histogram |
| Dual Display | Supported |
| Historical Reading Storage | Up to 10,000 readings in volatile memory |
| Internal Storage | 32Gb NAND Flash |
| External Storage | USB flash drive |

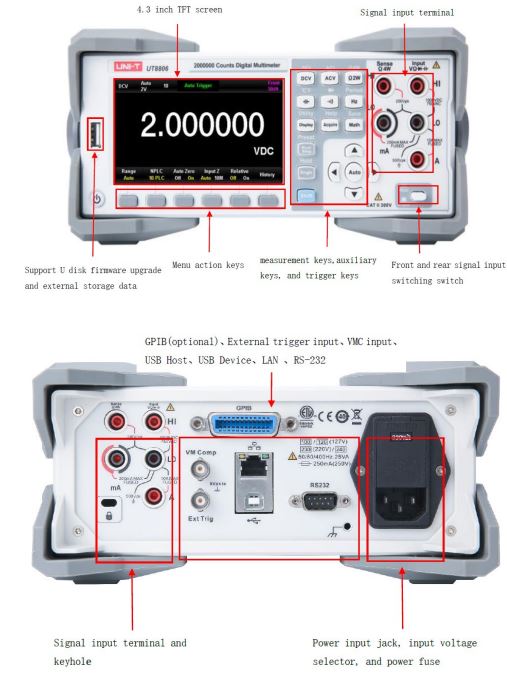

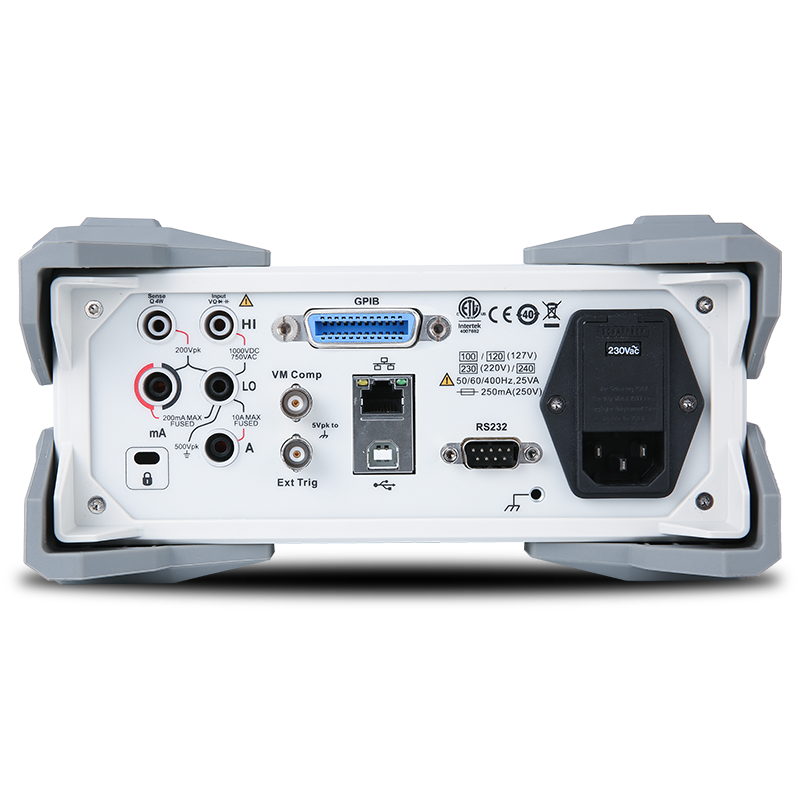

| USB Interfaces | USB Host and USB Device |
| LAN Interface | 10/100Mbit LAN |
| Serial Interface | RS-232C |
| GPIB Interface | Optional |
| Remote Control | SCPI, USBTMC, and VXI-11 |
| External Trigger Input | TTL-compatible |
| VMC Output | TTL-compatible sampling signal output |
| Power Supply | AC input with selectable voltage ranges |
| Supported AC Input Ranges | 90–110VAC, 110–132VAC, 200–240VAC, or 216–264VAC, depending on selected range |
| Input Frequency | 45–440Hz for the 90–110VAC and 110–132VAC ranges; 45–66Hz for the 200–240VAC and 216–264VAC ranges |
| Maximum Power Consumption | 25W |
| Warm-Up Time | 30 minutes specified by the datasheet; accuracy specifications require 60 minutes under their stated conditions |
| Dimensions | 225×113.2×378.24mm (W×H×D) |
| Operating Environment | 0°C–55°C, subject to the manufacturer’s humidity limits |
| Storage Temperature | -20°C to 70°C |
| Altitude | Up to 2000m |
Configuration:
Applications:
- Production-line electrical testing and quality control.
- Automated test equipment and computer-controlled measurement systems.
- DC power supply characterization and voltage stability testing.
- AC signal analysis and True RMS current and voltage measurements.
- Resistance measurements for components, cables, and circuit assemblies.
- Capacitance testing of electronic components.
- Frequency and period measurement in electronic circuits.
- Temperature monitoring using compatible thermocouples and resistance sensors.
- Statistical measurement analysis and Pass/Fail limit testing.
- Educational laboratory experiments and engineering training.

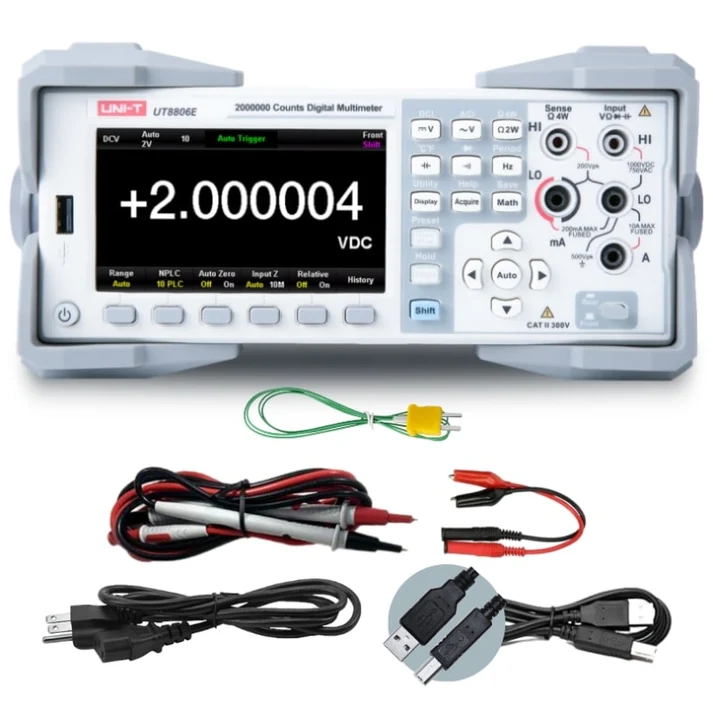

Package Include:
- 1x UNI-T UT8806E Desktop Digital Multimeter.
- 1x Three-Core Power Cable.
- 1x Pair of Test Probes.
- 1x USB Connection Cable.
- 1x RS-232 Connection Cable.
- 1x PC Control Software Package.
