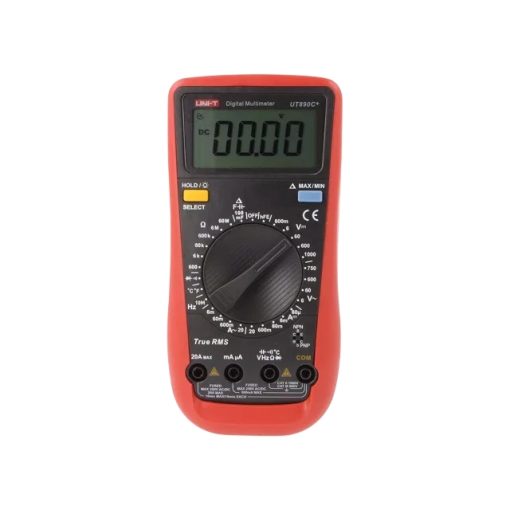

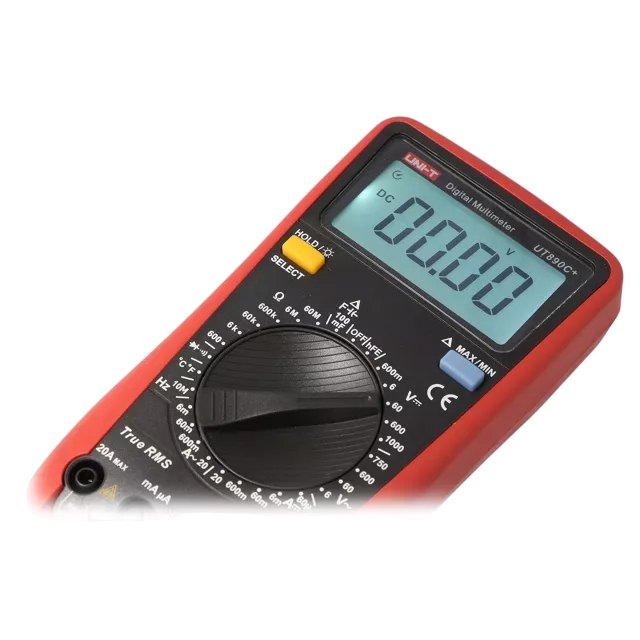

UNI-T UT890C+ Digital Multi-meter
The UNI-T UT890C+ Digital Multimeter is a professional handheld measuring instrument designed for electrical troubleshooting, electronics maintenance, industrial servicing, laboratory testing, and educational applications. Engineered for reliable and accurate measurements, the UT890C+ combines comprehensive electrical testing capabilities with a compact ergonomic design suitable for both professional technicians and advanced hobbyists.
Features:
- 6000-count digital LCD display.
- True RMS measurement capability.
- AC/DC voltage and current measurement.
- Resistance, capacitance, and frequency measurement.
- Temperature measurement support.
- Non-Contact Voltage (NCV) detection.
- Continuity and diode testing functions.
- Data hold and relative measurement modes.
Specifications:
| Parameter | Range | Accuracy |
|---|---|---|
| Display Count | 6000 | – |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| AC Voltage | 6V/60V/600V/750V | ±(0.8%+3) |
| AC Voltage Frequency Response | 10Hz–10kHz | ±(0.1%+5) |
| DC Current | 60μA/600μA/6mA/60mA/600mA/20A | ±(0.8%+8) |
| AC Current | 60μA/600μA/6mA/60mA/600mA/20A | ±(1%+12) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance | 6nF–100mF | ±(3%+10) |
| Frequency | 9.999Hz–9.999MHz | ±(1.0%+5) |
| Temperature | –40°C to 1000°C / –40°F to 1832°F | ±(1.5%+5) |
| Duty Cycle | 0.1%–99.9% | – |
| Diode Test | ≈3V/1mA | – |
| Continuity Buzzer | ✓ (acousto‑optic) | – |
| hFE Transistor Test | ✓ (NPN/PNP) | – |
| NCV | ✓ (acousto‑optic) | – |
| Fuse‑blowing Alarm | ✓ (mA terminal only) | – |
| Over‑current Alarm | ✓ (≥20A) | – |
| High‑voltage False Detection | 1000Vrms | – |
| Data Hold | ✓ | – |
| REL / Max‑Min | ✓ | – |
| AC/DC Current Mode Memory | ✓ | – |
| True RMS | ✓ | – |
| Range Selection | Manual | – |
| Backlight | ✓ (30s auto‑off) | – |
| Auto Power Off | ✓ (15 minutes) | – |
| Low Battery Indication | ✓ (≤2.5V) | – |

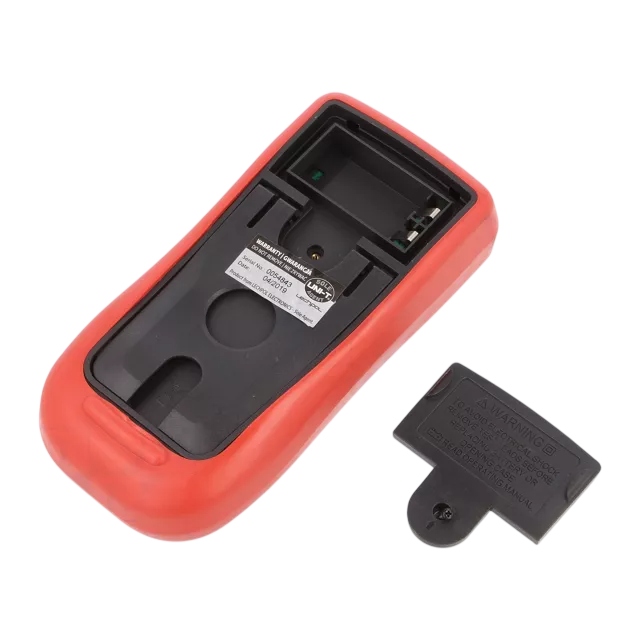

| Power Supply | 1.5V AAA (R03) × 2 | – |
| Fuse (20A Terminal) | 16A H 250V fast‑acting (Ø6mm×32mm) | – |
| Fuse (mA/μA Terminal) | 600mA H 250V fast‑acting (Ø6mm×32mm) | – |
| Maximum Voltage (Input‑to‑Ground) | 1000Vrms | – |
| Input Impedance (DCV) | 10MΩ | – |
| Safety Rating | CAT II 1000V / CAT III 600V | – |
| Operating Temperature | 0°C to 40°C | – |
| Storage Temperature | –10°C to 50°C | – |
| Dimensions | 183mm × 88mm × 56mm | – |
| Product Color | Red and Grey | – |
| Weight | Approx.346g |
Applications:
- Electrical troubleshooting and maintenance.
- Electronic circuit diagnostics.
- Industrial equipment servicing.
- HVAC system testing.
- Automotive electrical testing.
- Educational laboratory experiments.
- Power supply analysis.
- Field and bench measurements.
Package Include:
- 1x UNI-T UT890C+ Digital Multimeter.
- 1x Test Lead Set.

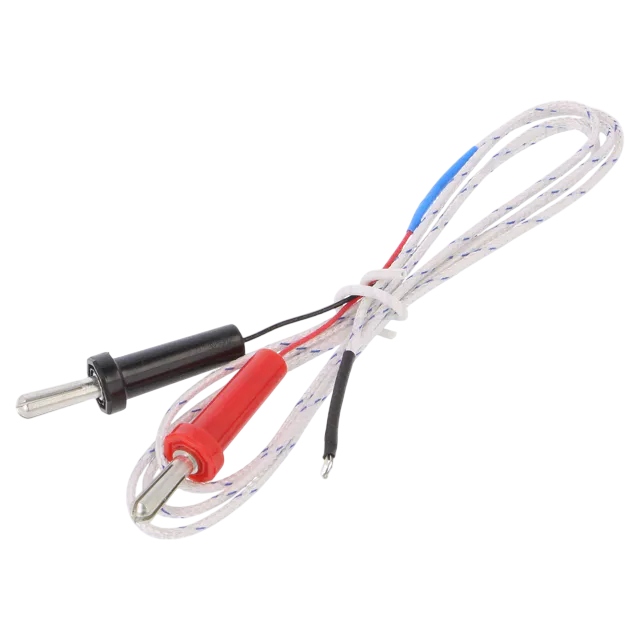

- 1x Temperature Probe.
- 2x AA Batteries.
- 1x English User Manual.
