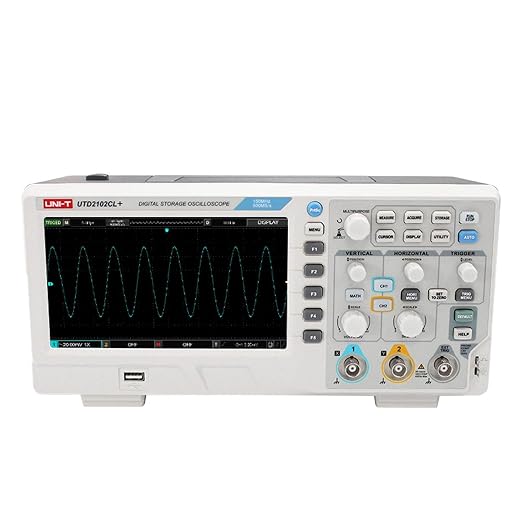

UNI-T UTD2102CL+ Digital Oscilloscope
The UNI-T UTD2102CL+ is a two-channel digital storage oscilloscope designed for accurate observation and analysis of electronic waveforms. With its 100MHz bandwidth and high-speed real-time sampling capability, it is suitable for examining analog and digital signals in electronic circuits, power supplies, communication equipment, embedded systems, and other electronic applications. Its large color display provides a clear view of measured waveforms and signal details.
The oscilloscope includes automatic waveform measurements, cursor measurement functions, mathematical waveform operations, FFT analysis, multiple trigger modes, waveform storage, and USB connectivity. The dual-channel design allows users to observe and compare two signals simultaneously, making the UTD2102CL+ a practical bench instrument for electronics engineers, technicians, students, laboratories, production testing, and maintenance work.
Features:
- Two-channel digital storage oscilloscope.
- Clear color TFT display.
- Automatic waveform parameter measurement.
- Cursor measurement capability.
- Multiple waveform trigger modes.
- Waveform mathematical operations.
- FFT waveform analysis.
- Frequency counter function.
- Waveform zoom function.
- Waveform and setup storage capability.
- USB Host and USB Device connectivity.
- Pass/Fail testing support.
- AC, DC, and GND input coupling.
- Suitable for laboratory, educational, repair, and engineering use.
Specification:
| Specification | Value |
|---|---|
| Model Number | UTD2102CL+ |
| Bandwidth | 100MHz |
| Channels | 2 Analog Channels |
| Real-Time Sample Rate | 500MSa/s |
| Rise Time | ≤3.5ns |
| Memory Depth | 64kpts |
| Waveform Capture Rate | 5,000 wfms/s |
| Time-Base Scale | 2ns/div–50s/div |
| Input Impedance | 1MΩ ±2%, 18pF ±3pF |
| Waveform Generator | No |
| Display | 7-Inch LCD |
| Touchscreen | No |
| Warranty | 3 Years |
| Shipping Dimensions (W × H × L) | 306 × 138 × 124 mm |
| Shipping Weight | 3 kg |
| Documents | English Download Guide, Multi-Language Safety Manual, Calibration Report (COC) |
| Included Accessories | Power Cord, USB 2.0 Printing Cable, 2 × UT-P04 Passive Probes (1×/10× Switchable, 100MHz) |
Applications:
- Electronic circuit testing.
- PCB troubleshooting and repair.
- Power supply waveform analysis.
- Arduino and microcontroller development.
- Embedded system debugging.
- Signal frequency measurement.
- PWM signal analysis.
- Communication circuit testing.
- Educational and laboratory experiments.
- Industrial electronics maintenance.
- Production testing and quality control.
Package Includes:
- 1 × UNI-T UTD2102CL+ Digital Oscilloscope.
- 2 × UT-P04 Passive Oscilloscope Probes.
- 1 × Power Cord.
- 1 × USB Interface Cable.
- 1 × User Manual.
