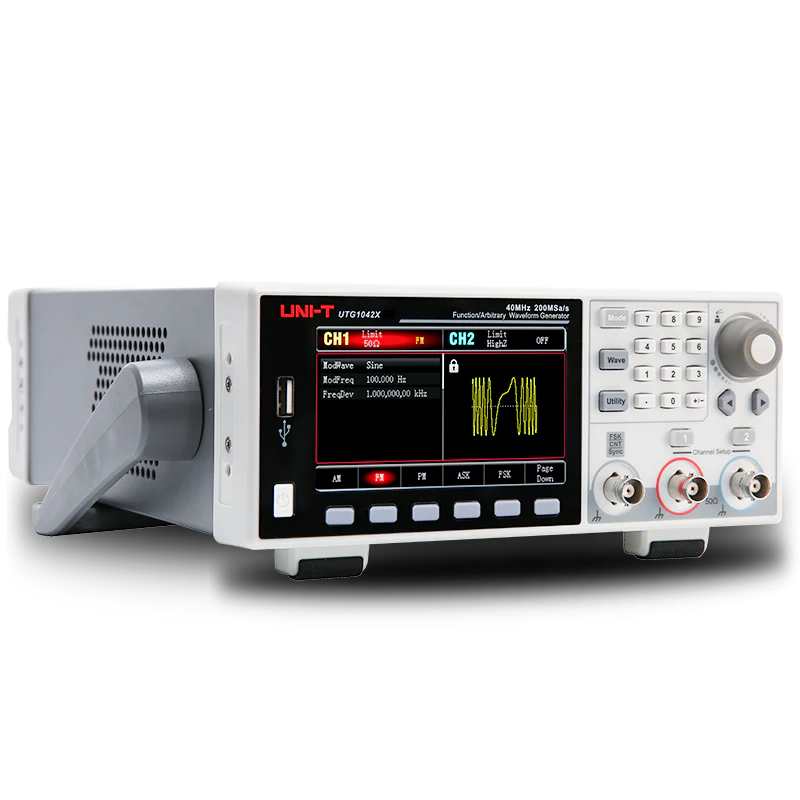

UNI-T UTG1042X Waveform Generator
The UNI-T UTG1042X Waveform Generator is a high-performance dual-channel arbitrary waveform generator designed for education, laboratory development, industrial testing, and electronics research applications. Engineered to deliver accurate, stable, and low-distortion output signals, this instrument combines advanced waveform generation capabilities with an intuitive user interface and compact desktop design.
The UTG1042X provides a maximum sine wave output frequency of 40MHz with a 200MSa/s sampling rate and 16-bit vertical resolution, enabling precise signal reproduction with significantly reduced quantization noise compared to typical 14-bit waveform generators. Its Direct Digital Synthesis (DDS) architecture ensures stable frequency generation with resolution down to 1μHz, making it suitable for precision signal simulation, embedded development, and communication testing applications.
This waveform generator supports dual independent output channels with multiple standard waveforms including sine, square, ramp, pulse, noise, DC, and arbitrary waveforms. Additionally, the device includes 200 built-in arbitrary waveforms and supports user-defined waveform generation for customized testing scenarios. The built-in modulation functions include AM, FM, PM, ASK, FSK, PSK, and PWM, providing extensive flexibility for analog and digital communication experiments.

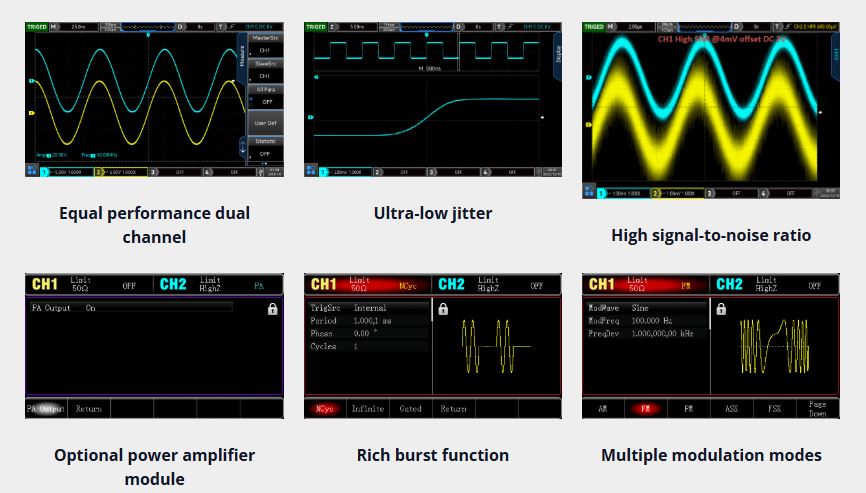

Features:
- Dual-channel arbitrary waveform generator.
- Maximum sine wave output frequency up to 40MHz.
- 200MSa/s sampling rate for accurate waveform generation.
- 16-bit vertical resolution for high signal fidelity.
- 200 built-in arbitrary waveforms.
- Supports AM, FM, PM, ASK, FSK, PSK, and PWM modulation.
- Built-in frequency counter up to 200MHz.
- Sweep and burst output modes supported.
- DDS technology with frequency resolution down to 1μHz.
- 4.3-inch TFT LCD display with intuitive interface.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | UTG1042X |
| Channels | 2 Channels |
| Sampling Rate | 200MSa/s |
| Vertical Resolution | 16Bit |
| Waveform Types | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Built-in Arbitrary Waveforms | 200 |
| Arbitrary Waveform Length | 4kpts |
| Sine Wave Frequency Range | 1μHz~40MHz |
| Square Wave Frequency Range | 1μHz~20MHz |
| Pulse Wave Frequency Range | 1μHz~20MHz |
| Ramp Wave Frequency Range | 1μHz~1MHz |
| Noise Bandwidth | 40MHz(-3dB) |
| Frequency Resolution | 1μHz |
| Maximum Output Amplitude (50Ω) | 10Vpp |
| Maximum Output Amplitude (High-Z) | 20Vpp |
| Output Impedance | 50Ω |
| Rise/Fall Time | <16ns |
| Minimum Pulse Width | 22ns |
| Frequency Counter Range | 100mHz~200MHz |
| Display Size | 4.3-Inch TFT LCD |
| Display Resolution | 480×272 |
| Interfaces | USB Host, USB Device |
| Power Supply | 100VAC~240VAC,50Hz/60Hz |
| Power Consumption | <20W |
| Operating Temperature | +10°C~+40°C |
| Storage Temperature | -20°C~+60°C |
| Dimensions | 215mm×103mm×316mm |
| Net Weight | 2.2kg |

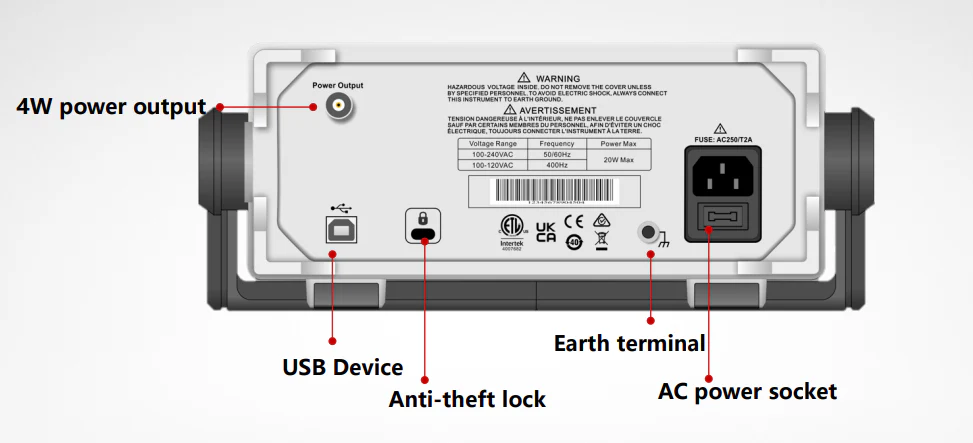

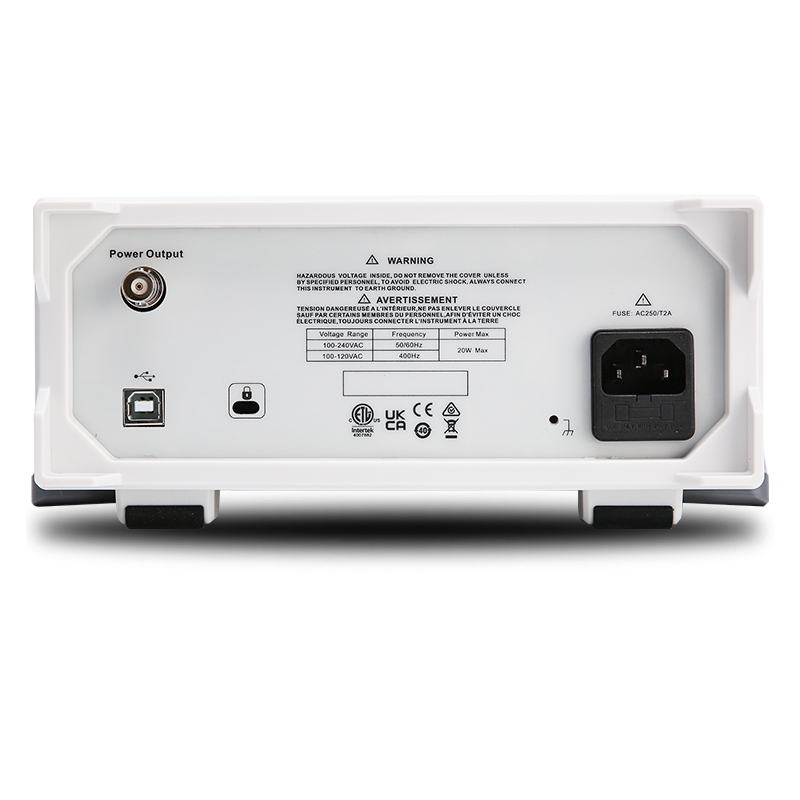

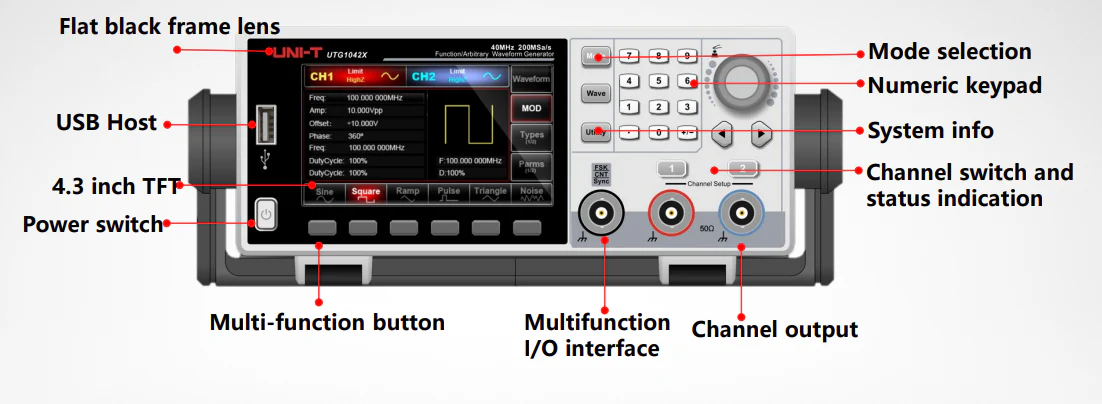

Configuration:
Applications:
- Analog and digital circuit testing.
- Embedded system development.
- Communication and modulation experiments.
- Educational laboratory training.
- Sensor simulation and signal emulation.
- Production line functional testing.
- Filter and amplifier characterization.
- Research and development laboratories.

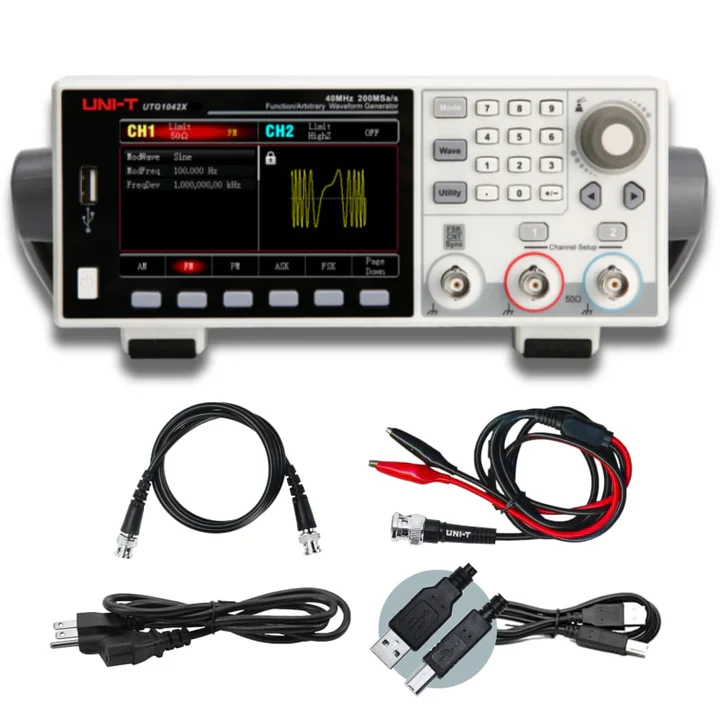

Package Include:
- 1x UNI-T UTG1042X Waveform Generator.
- 1x Power Cord.
- 1x USB Cable.
- 1x BNC-BNC Cable.
- 1x BNC to Alligator Clip Cable.
- 1x User Manual.
