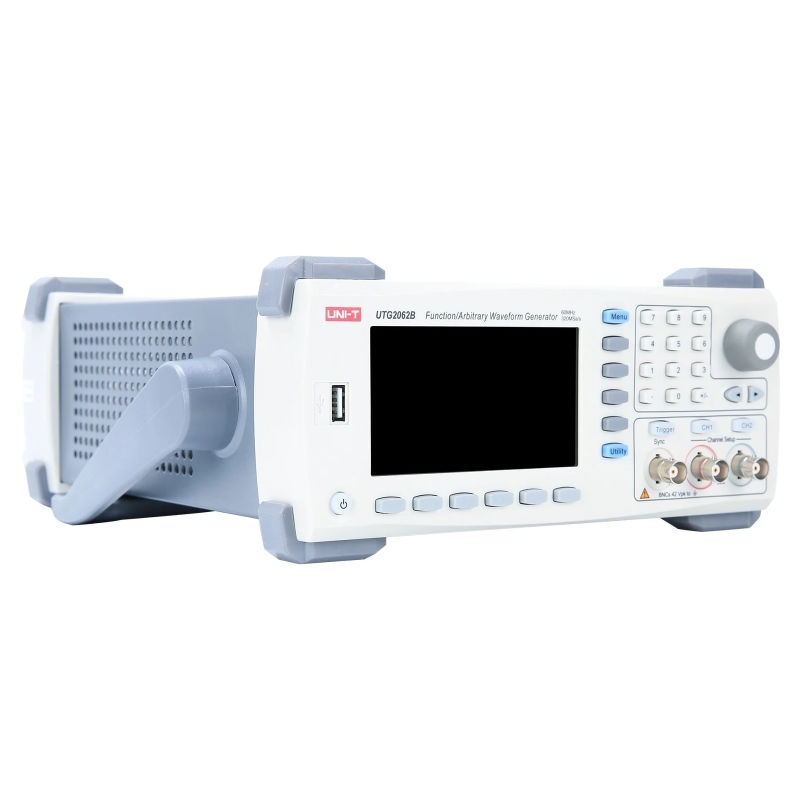

UNI-T UTG2062B Waveform Generator
The UNI‑T UTG2062B is a dual‑channel DDS waveform generator engineered for precise signal synthesis up to 60 MHz. Each independent channel delivers sine, square, ramp, pulse, noise, DC, arbitrary, harmonic, and programmable expression waveforms with 1 µHz frequency resolution. Its 16‑bit vertical resolution and 1.28 GSa/s sampling rate (320 MSa/s interpolation) ensure low distortion (< 0.2% THD on DC–20 kHz) and sub‑13 ns rise/fall times on square and pulse outputs.
The instrument’s 4.3″ TFT color display, multi‑function knob, and soft‑key interface streamline setup, while USB Host (≤ 32 GB), USB Device, LAN, and 10 MHz I/O ports support data transfer and synchronization. Advanced built‑in modes include burst, sweep (linear/log), and 13 standard modulation schemes (AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM). Nonvolatile memory holds 160 arbitrary waveforms (8 pts–16 M pts), with external USB drives accommodating additional files.
Encased in a compact 305 × 230 × 93 mm chassis with forced‑air cooling, it operates on 100–240 VAC and meets CAT II safety. The UTG2062B is ideal for educational labs, R&D, automated test systems, and production environments requiring versatile, high‑fidelity waveform generation.
Features:
- Dual‑channel independent outputs.
- 1.28 GSa/s sampling rate, 16‑bit vertical resolution.
- Sine to 60 MHz; square/pulse to 25 MHz; ramp to 3 MHz; 1 µHz resolution.
- 160 nonvolatile arbitrary waveforms (8 pts–16 M pts).
- 18‑function expression generator (max 160 chars).
- Burst (1–1,000,000 cycles), sweep (1 ms–500 s, linear/log).
- Modulation: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM.
- USB Host (≤ 32 GB), USB Device, LAN, 10 MHz In/Out.
- 4.3″ TFT display with knob/soft‑key control.
- Compact 305×230×93 mm, forced‑air cooling, CAT II safety, 100–240 VAC.
Specifications:
| Parameter | UTG2062B |
|---|---|
| Max Frequency (Sine): | 60 MHz |
| Sampling Rate: | 1.28 GSa/s (320 MSa/s interpolation) |
| Vertical Resolution: | 16 bits |
| Waveform Types: | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary, Harmonic, Expression |
| Frequency Ranges: | Sine: 1 µHz–60 MHzSquare/Pulse: 1 µHz–25 MHzRamp: 1 µHz–3 MHzArbitrary: 1 µHz–15 MHz |
| Rise/Fall Time (Square/Pulse): | < 13 ns (typ.) |
| THD (DC–20 kHz, 1 Vpp): | < 0.2% |
| Burst/Sweep Modes: | Burst: 1–1,000,000 cycles, infinite, gatedSweep: Linear/Log, 1 ms–500 s ± 0.1% |
| Modulation: | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM |
| Display: | 4.3″ TFT, 480×272 |
| Interfaces: | USB Host (≤ 32 GB), USB Device, LAN, 10 MHz In/Out |
| Power: | 100–240 VAC, 45–440 Hz, < 50 W; Fuse 2 A T |
| Dimensions & Weight: | 305×230×93 mm; Net 3.10 kg; Gross 4.10 kg |
Applications:
- Education and Training.
- Electronic Circuit Testing.
- Communication Systems R&D.
- Signal Simulation.
- Audio Equipment Testing.
- Embedded System Development.
- Industrial Product Testing.
- Scientific Research.
- Medical Device Testing.
- Sensor and Actuator Evaluation.
Package Contents:
- 1x Power cord
- 1x USB data cable
- 1x BNC‑to‑BNC cable (1 m)
- 1x BNC‑to‑alligator‑clip cable (1 m)
- 1x User CD
- 1x User manual
- 1x Product warranty card
