UNI-T UTi120M Smartphone Thermal Camera Module for Android
UNI-T UTi120M Android thermal camera module with USB-C, 120×90 IR resolution, super resolution, photo/video capture, alarms, and app analysis tools.
6,550.00 EGP
Buy NowUNI-T UTi120M Smartphone Thermal Camera Module for Android
The UNI-T UTi120M Smartphone Thermal Camera Module for Android is a compact thermal imaging accessory designed to connect directly to Android smartphones through a USB Type-C interface. It turns a compatible mobile phone into a portable thermal imager, making it useful for fast inspection, temperature checking, and thermal problem detection in different working environments.
This module provides infrared thermal imaging with a 120 × 90 IR resolution and supports super-resolution imaging up to 240 × 180 for clearer thermal details. It allows users to view heat distribution, capture photos, record videos, and analyze temperature changes through the mobile app. The device supports multiple color palettes, including Iron Red, Rainbow, Gray Scale, Red Hot, Black White, Lava, and High-Contrast Rainbow.
The UTi120M is suitable for electrical inspection, HVAC checking, PCB inspection, maintenance work, and general troubleshooting. It includes functions such as center point temperature, high/low temperature tracking, adjustable emissivity, alarm settings, image blending, and analysis tools for points, lines, and rectangles. Its small size and smartphone-based operation make it easy to carry and practical for field use.
Features:
- Compact smartphone thermal camera module for Android devices.
- USB Type-C connection for direct mobile phone use.
- 120 × 90 infrared resolution.
- 240 × 180 super-resolution mode.
- Thermal photo capturing function.
- Thermal video recording function.
- Real-time temperature measurement.
- Center point temperature measurement.
- High and low temperature tracking.
- Adjustable emissivity for better measurement accuracy.
- Multiple image color palettes.
- Image blending between visible light and infrared image.
- PIP picture-in-picture display function.
- Temperature alarm function.
- Analysis tools for point, line, and rectangle measurement.
- Supports Celsius and Fahrenheit temperature units.
- Suitable for electrical, HVAC, PCB, and maintenance inspection.
Specifications:
| Specification | Value |
|---|---|
| Brand: | UNI-T |
| Model: | UTi120M |
| Product Type: | Smartphone Thermal Camera Module |
| Compatible System: | Android Smartphone |
| Interface: | USB Type-C |
| IR Resolution: | 120 × 90 |
| Super Resolution: | 240 × 180 |
| Output Frame Rate: | <25Hz |
| Response Wave Band: | 8–14μm |
| Pixel Size: | 17μm |
| NETD: | 60mK |
| Field of View (FOV): | 50°(H) × 38°(V) |
| Focusing Mode: | Focus-free |
| Measurement Point: | Central point, high temperature, low temperature |
| Measurement Range: | -20°C to 400°C |
| Accuracy: | ±2°C or ±2% whichever is greater, at 25°C ambient temperature |
| Temperature Unit: | Celsius (°C), Fahrenheit (°F) |
| Measurement Resolution: | 0.1°C |
| Emissivity: | 0.01–1.0 adjustable |
| Palette: | Iron Red, Rainbow, Gray Scale, Red Hot, Black White, Lava, High-Contrast Rainbow |
| Analysis Objects: | Point, line, rectangle, circle |
| Photo / Video Function: | Supported |
| PIP Function: | Supported |
| High / Low Temperature Tracking: | Supported |
| High / Low Temperature Alarm: | Supported |
| Photo Editing: | Supported |
| Image Data Interface: | USB 2.0, Type-C |
| Operating Temperature: | 0°C to 45°C |
| Storage Temperature: | -20°C to 60°C |
| Relative Humidity: | 10% to 80%, non-condensing |
| Operating Altitude: | 2000m |
| Certification: | CE, RoHS, FCC |
| Image / Video Format: | JPG, Video: MP4 |
| Dimensions: | 58mm × 18.5mm × 15mm |
| Product Weight: | 20g |
| Accessories: | User manual, Type-C male to female extension cable, Micro USB to Type-C interface adapter |
Applications:

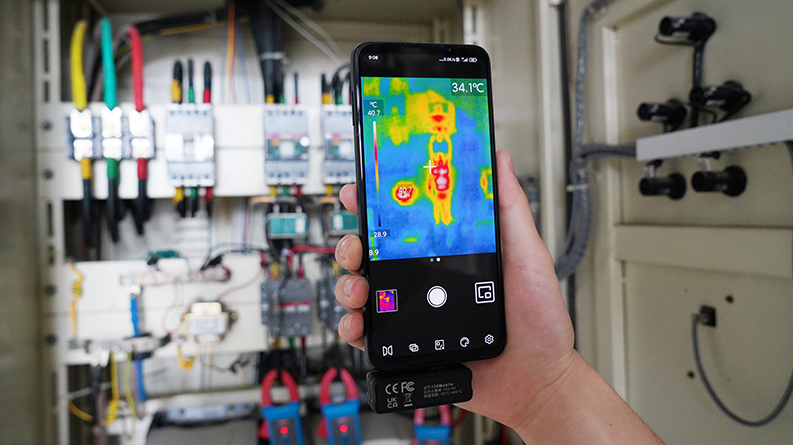

- Electrical Inspection.

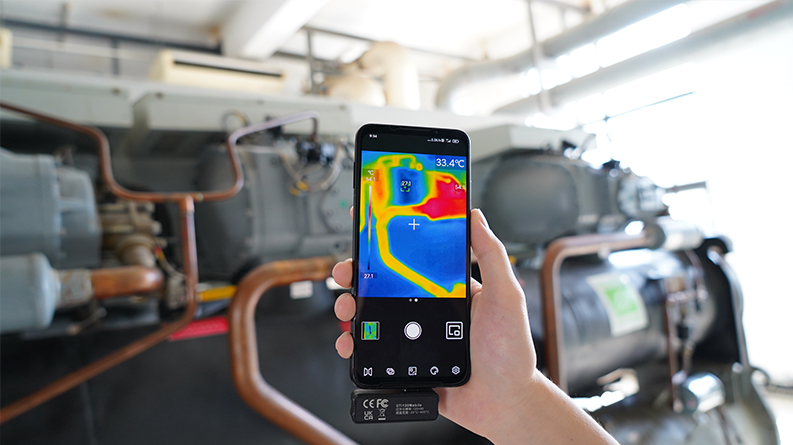

- HVAC Inspection.

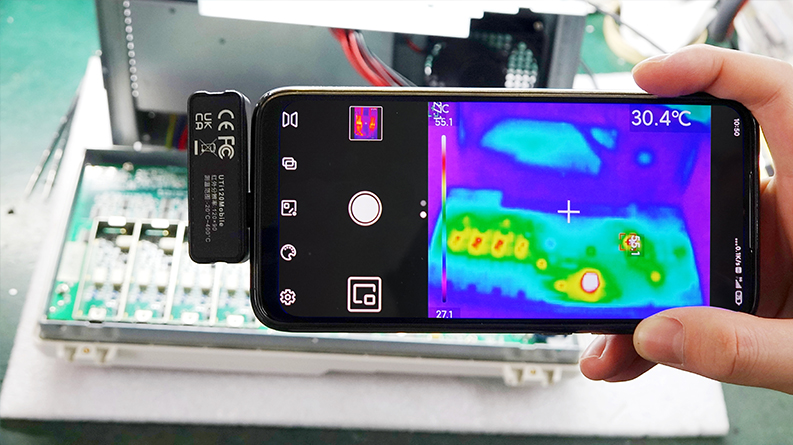

- PCB Inspection.
- Building Inspection.
- Equipment Maintenance.
- Heat Leakage Detection.
- Automotive Troubleshooting.
- Home Repair Inspection.
- Industrial Temperature Checking.
- Power Distribution Inspection.
Package Contents:
- 1x UNI-T UTi120M Smartphone Thermal Camera Module.
- 1x User Manual.
- 1x Type-C Male to Female Extension Cable.
- 1x Micro USB to Type-C Interface Adapter.
