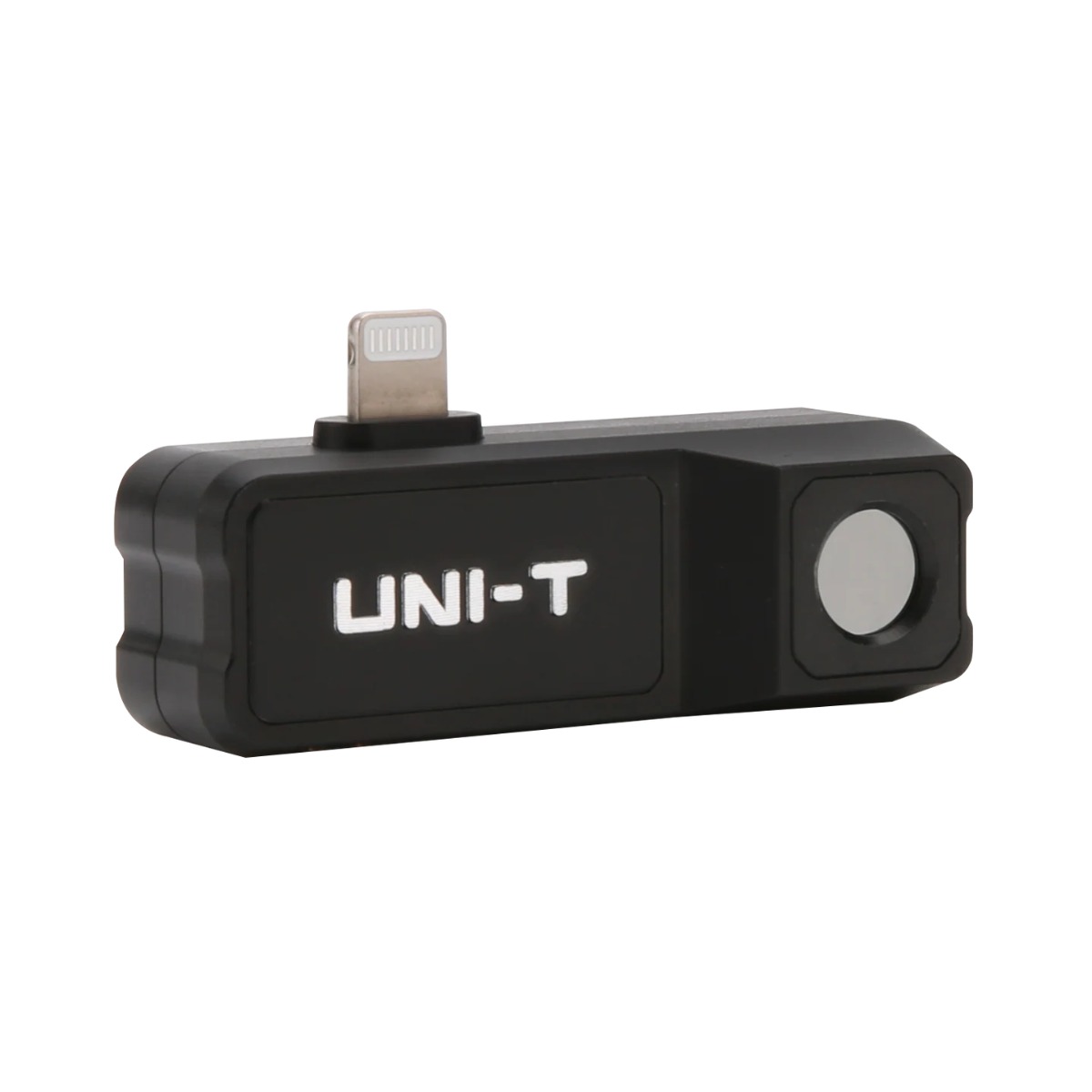

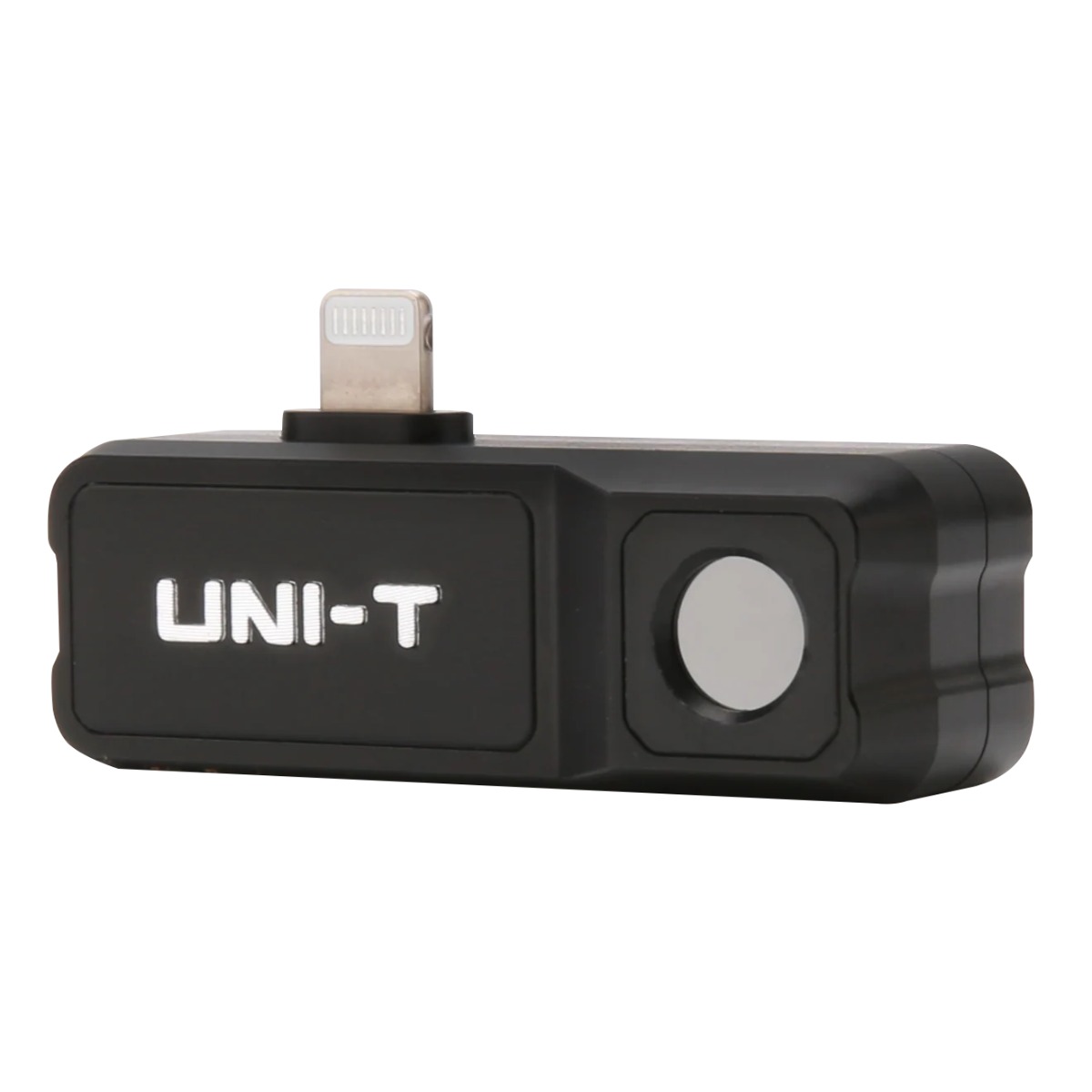

UNI-T UTi120MS Smartphone Thermal Camera Module for IPhone
The UNI-T UTi120MS is a compact smartphone thermal camera module designed for compatible iPhone devices with a Lightning connector. It converts an iPhone into a portable thermal imaging tool, allowing users to visualize infrared heat patterns and measure temperatures quickly. With its compact and lightweight design, the UTi120MS is suitable for technicians, engineers, maintenance professionals, electricians, and electronics repair applications.

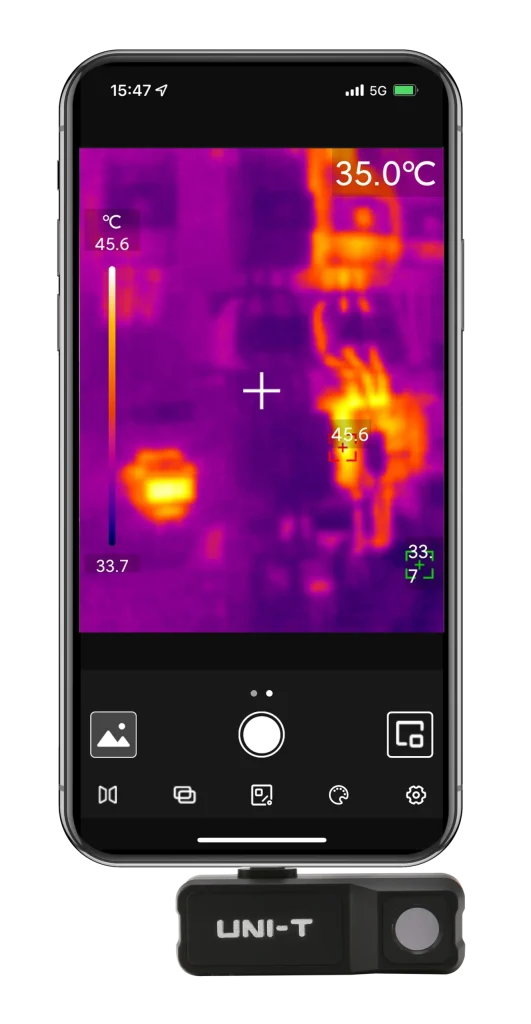

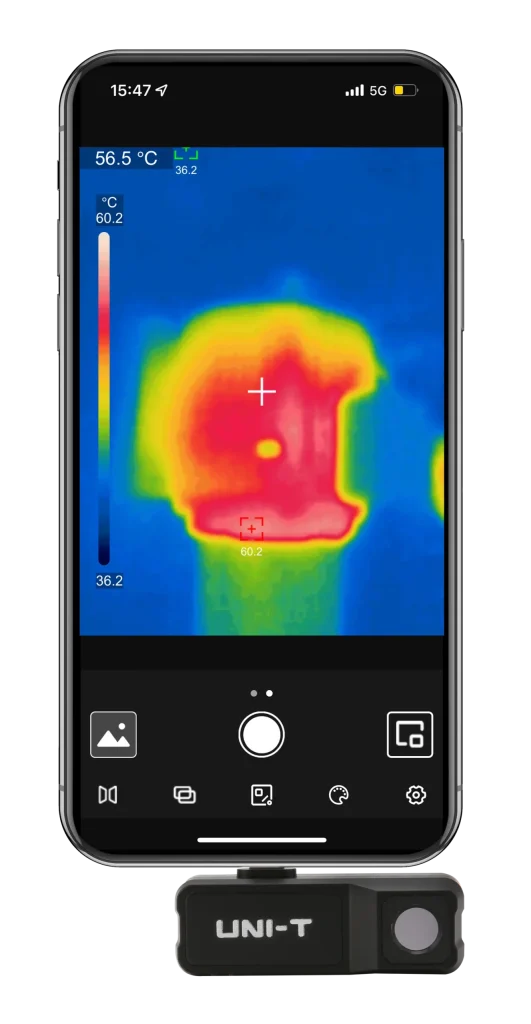

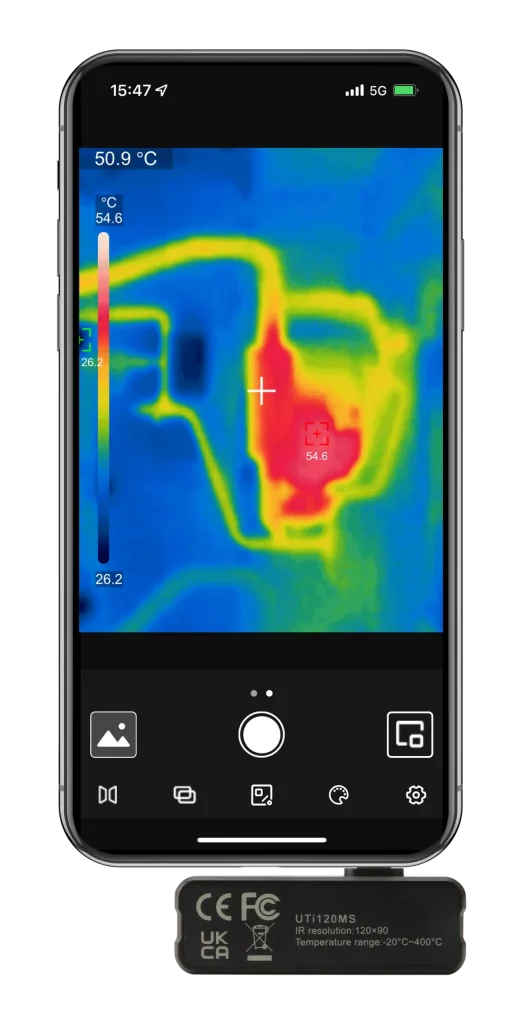

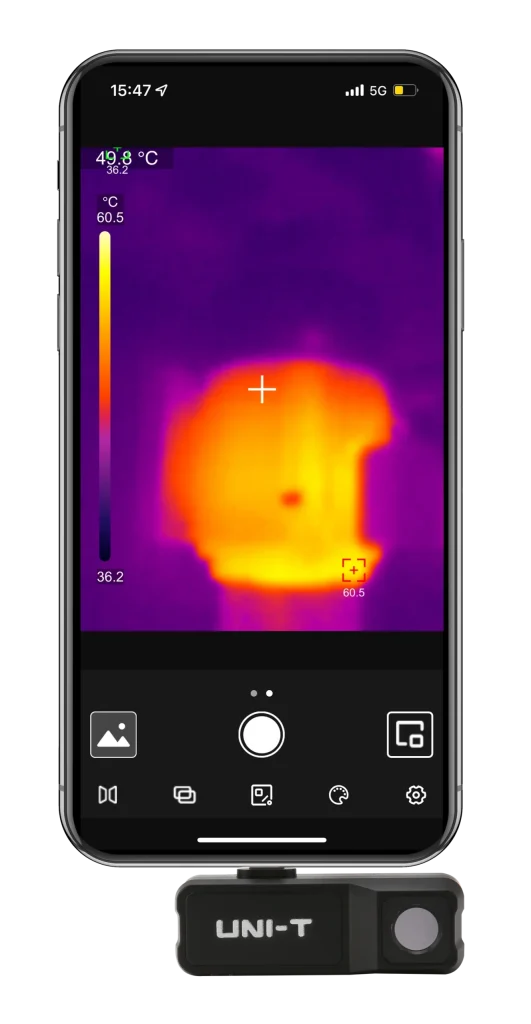

The module supports thermal image capture, video recording, multiple color palettes, temperature alarms, and on-screen measurement analysis. It can be used to identify overheating electrical components, inspect PCBs, monitor motors and machinery, detect insulation problems, and locate temperature abnormalities in HVAC and refrigeration systems. Thermal, fusion, and picture-in-picture viewing modes provide additional flexibility for thermal inspection and analysis.
Features:
- Compact smartphone thermal camera module.
- Designed for compatible iPhone devices with Lightning port.
- Plug-and-play operation with the compatible mobile application.
- Thermal image capture capability.
- Thermal video recording capability.
- Multiple thermal color palettes.
- Thermal, Fusion, and Picture-in-Picture viewing modes.
- Adjustable emissivity for different surface materials.
- High and low temperature alarm function.
- High and low temperature spot tracking.
- On-screen measurement and analysis tools.
- Point, line, rectangle, and circle analysis.
- Focus-free optical design.
- Compact and lightweight construction.
- Suitable for portable field inspection.
- Image editing support through the application.
- Designed for electrical, industrial, HVAC, and electronics inspection.
Specifications:
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK @25℃ |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20℃ ~ 400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Lava, Ironbow, Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes | Thermal, Fusion, PIP |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Lightning |
| Drop proof | 1m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE, UKCA, FCC, RoHS, MFi |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
Applications:
- Electrical panel inspection.
- PCB and electronic component inspection.
- Detecting overheating components.
- Power supply troubleshooting.
- Motor and machinery inspection.
- HVAC system maintenance.
- Refrigeration system inspection.
- Heat loss detection.
- Building insulation inspection.
- Pipeline inspection.
- Manufacturing equipment maintenance.
- Preventive maintenance.
- Home electrical inspection.
- Automotive thermal diagnostics.
Package Includes:
- 1 × UNI-T UTi120MS Smartphone Thermal Camera Module.
- 1 × User Manual.
- 1 × Operation Guide Card.
- 1 × Gift Box.
