UNI-T UTi165A+Heavy Duty Thermal Camera
UNI-T UTi165A+ Heavy Duty Thermal Camera is a sturdy and comfortable-to-hold thermal camera. Furthermore, it’s easy to use and performs well. Moreover, it can detect temperatures from -10°C to 400°C and automatically track the temperature of the target. Consequently, this affordable professional tool is used in many different ways to find and fix problems.
Features
- Durable and user-friendly
- 8” TFT display screen (320 x 240 Pixels)
- IR resolution: 160 x 120
- Digital camera resolution：640 x 480
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP65
- 2m drop proof
Specifications
| Technical Data | |
| IR resolution (Pixels) | 160 x 120 |
| Display | 2.8” TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤50mk |
| Spatial resolution(IFOV) | 6.1mrad |
| Frame rate | ≤9Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Temperature measurement range | -10℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes | Thermal, Visual image, Fusion |
| On screen analyzer | 3 Points |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon, LED flashlight |
| PC software analysis | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 7 hours |
| USB | Type-C |
| IP rating | IP65 |
| Drop proof | 2m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE, FCC, RoHS |
| Product net weight | 490g |

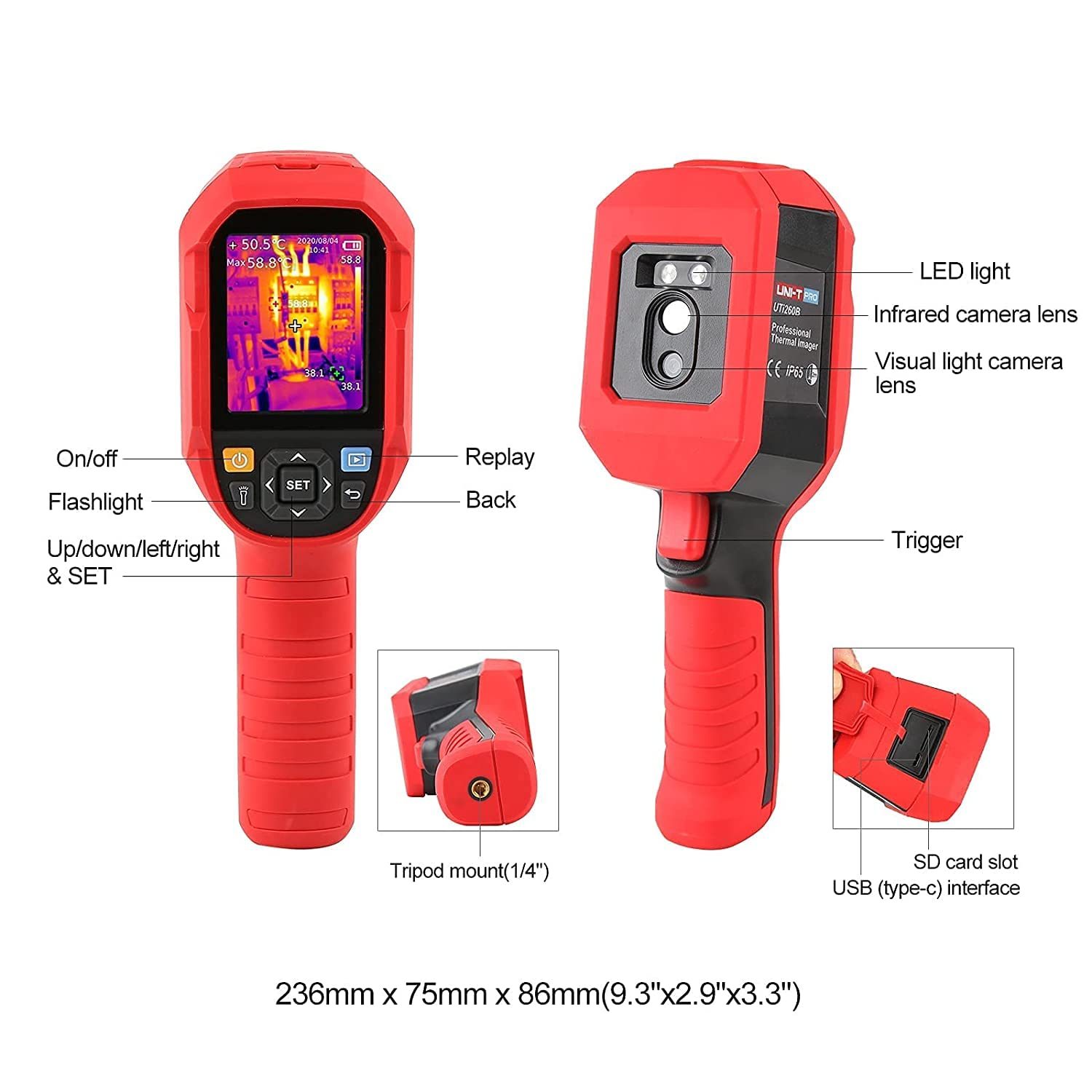

| Product size | 236mm x 75.5mm x 86mm |

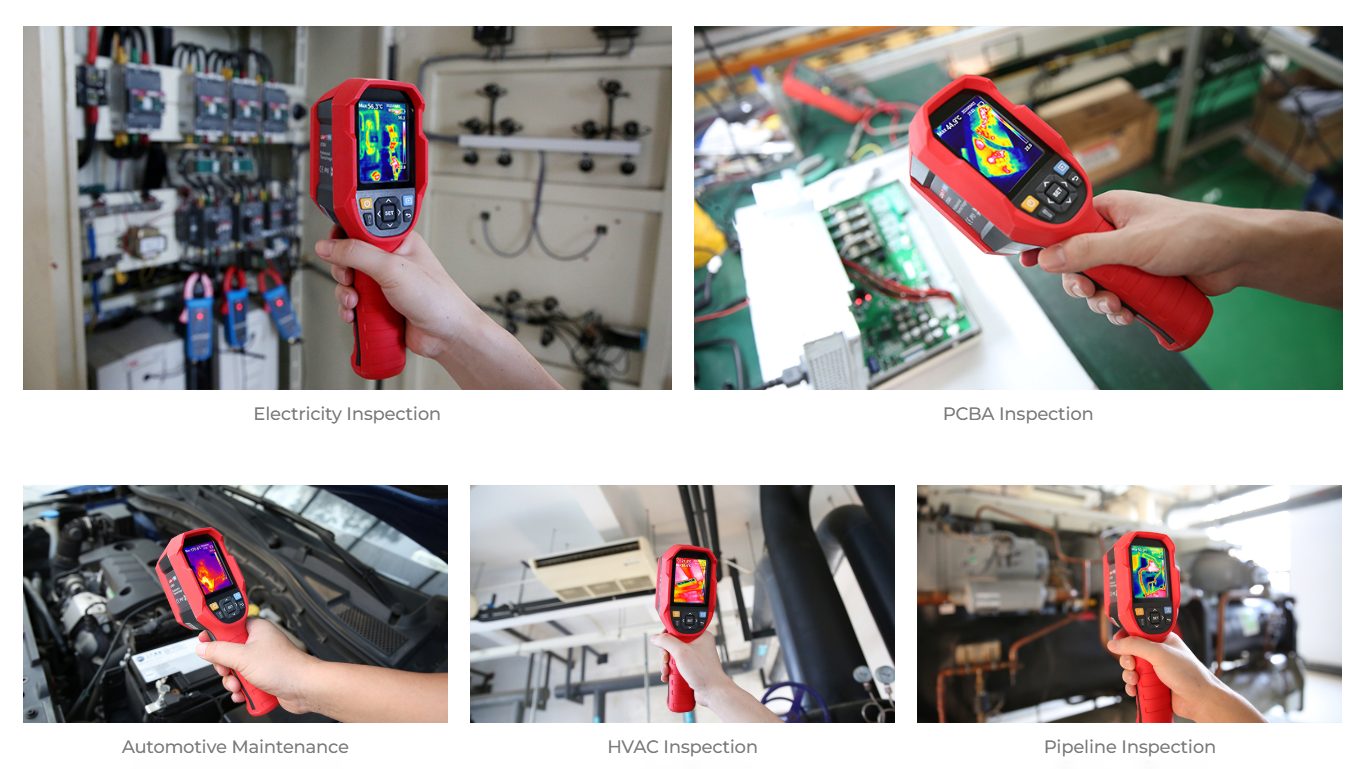

Applications
- PCBA inspection.
- motor inspection.
- automotive maintenance.
- solar panel inspection.
- power distribution cabinet inspection.
- electricity facilities inspection.
- mechanical equipment inspection.
- heating equipment inspection.
- building & HVAC inspection.
Package Contents
- 1 x UNI-T UTi165A+ Heavy Duty Thermal Camera
- 1 x USB Type-C charging cable
- 1 x 32 GB Micro SD card
- 1 x User Manual
