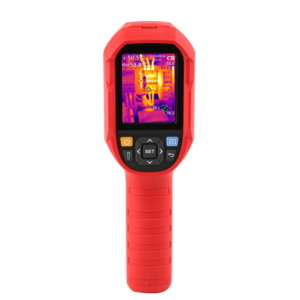

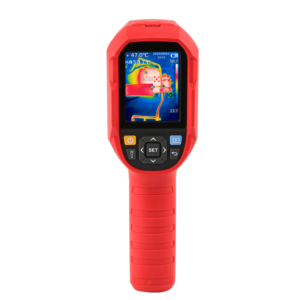

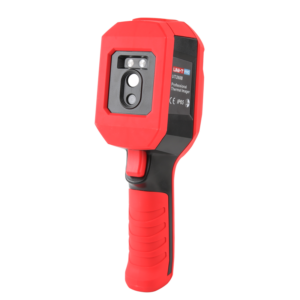

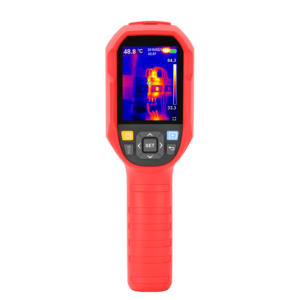

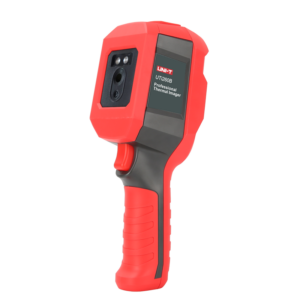

UNI-T UTi260B Heavy Duty Thermal Camera
UTi260B is a featured product of UNI-T heavy-duty series thermal cameras. It is cost-effective and with a wide temperature range: -20℃~550℃. It has a higher IR resolution: 256×192 pixels than other models and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture-in-picture. It is also user-friendly and rugged enough to pass IP65 and 2m drop test.
Features:
- Durable and user-friendly.
- 2.8” TFT display screen (320×240 Pixels).
- IR resolution: 256×192.
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉.
- Auto alarm for high/low temperature.
- Auto tracking for hot spot/cold spot.
- On screen analyzer: 3 Points.
- Image capture.
- Image modes: Thermal, Visual image, Fusion, PIP.
- Digital camera resolution: 640×480.
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC).
- LED flashlight.
- PC software analysis and real-time image projection).
- Rechargeable Li-ion battery.

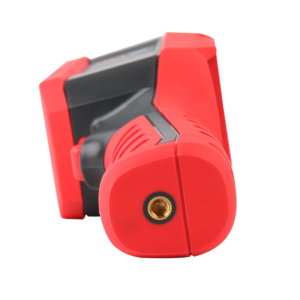

- 1/4”Tripod Mounting Hole.
- IP65.
- 2m drop proof.
Specifications:
| Technical Data | |
| IR resolution (Pixels): | 256×192 |
| Display: | 2.8” TFT LCD (320×240) |
| Field of view(FOV): | 56°×42° |
| Thermal sensitivity(NETD): | ≤60mK |
| Spatial resolution(IFOV): | 3.8mrad |
| Frame rate: | ≤25Hz |
| Spectral range: | 8~14µm |
| Focus: | Focus Free |
| Temperature measurement range: | -20℃~550℃ |
| Accuracy: | ±2℃ or ±2% whichever is greater |
| Emissivity: | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes: | 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes: | Thermal, Visual image, Fusion, PIP |
| On-screen analyzer: | 3 Points |
| Digital camera resolution: | 640×480 |
| Hi/Lo temperature alarm: | Icon, LED flashlight |
| PC software analysis: | √ |
| General Characteristics | |
| Battery: | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time: | ≥ 6 hours |
| USB: | Type-C |
| IP rating: | IP65 |
| Drop-proof: | 2m |
| Storage: | Up to 32GB Micro SD card |
| Image/Video storage format: | BMP |
| Certificates: | CE,FCC, RoHS |
| Product net weight: | 490g |
| Product size: | 236mm×75.5mm×86mm |
Applications:
- Electrical Equipment Inspection.
- Industrial Maintenance Monitoring.
- Mechanical Fault Detection.

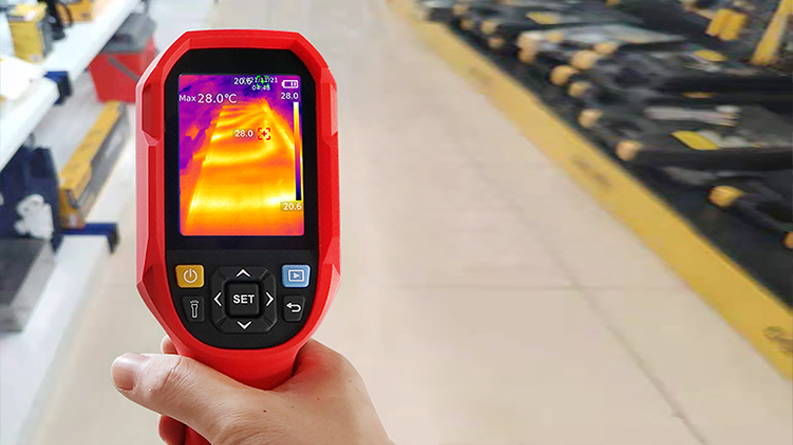

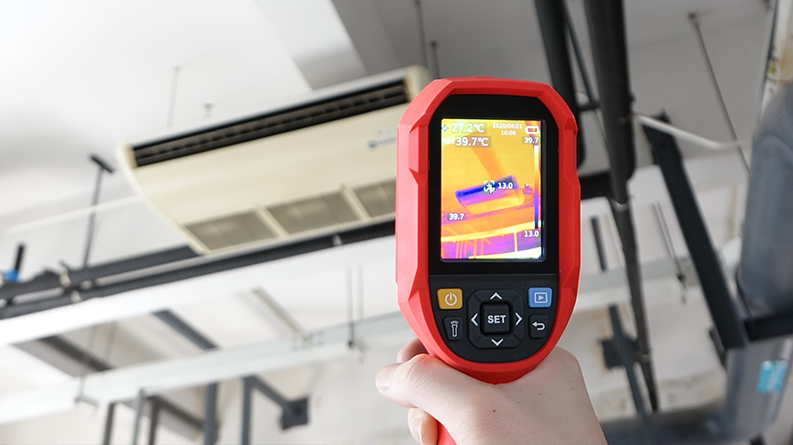

- HVAC System Inspection.
- Building Heat Loss Analysis.

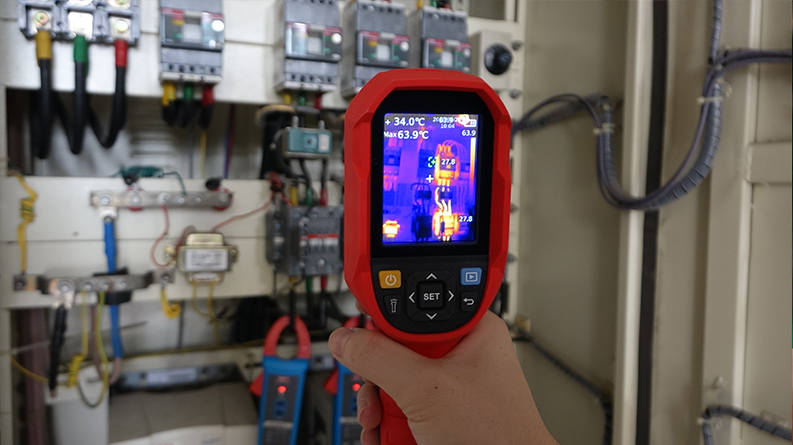

- Power Distribution Inspection.

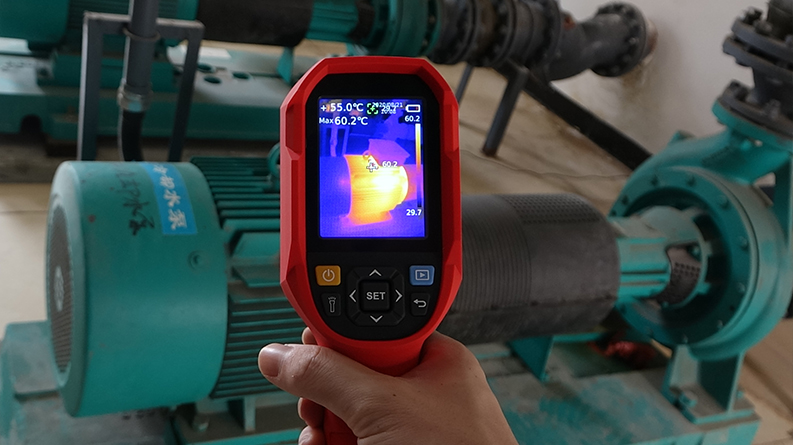

- Motor and Bearing Temperature Monitoring.

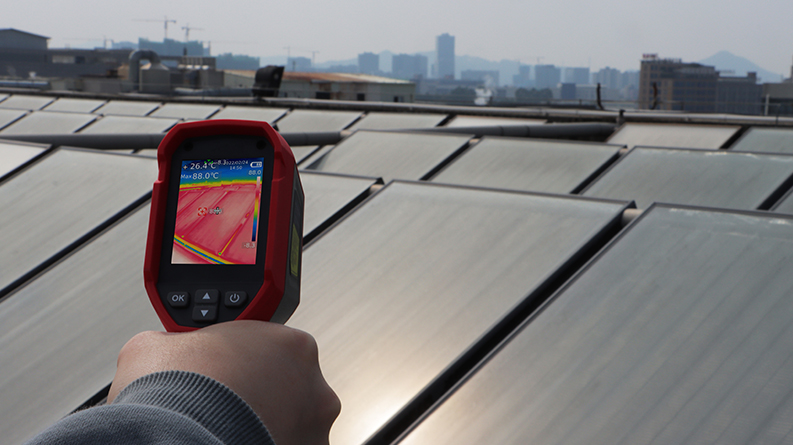

- Solar Panel Inspection.

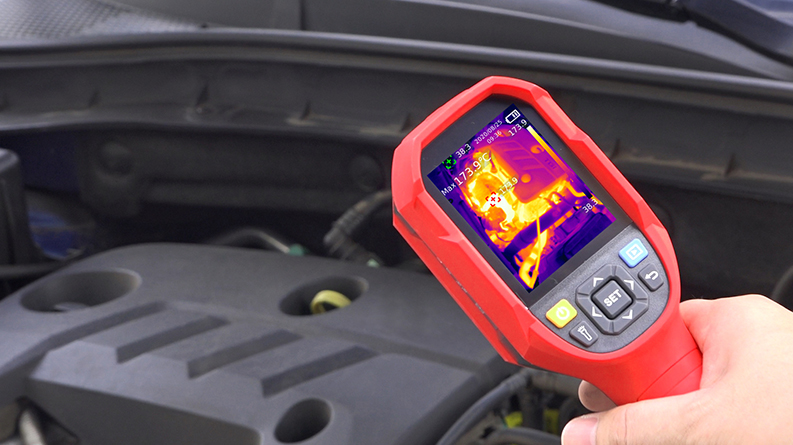

- Automotive Diagnostics.

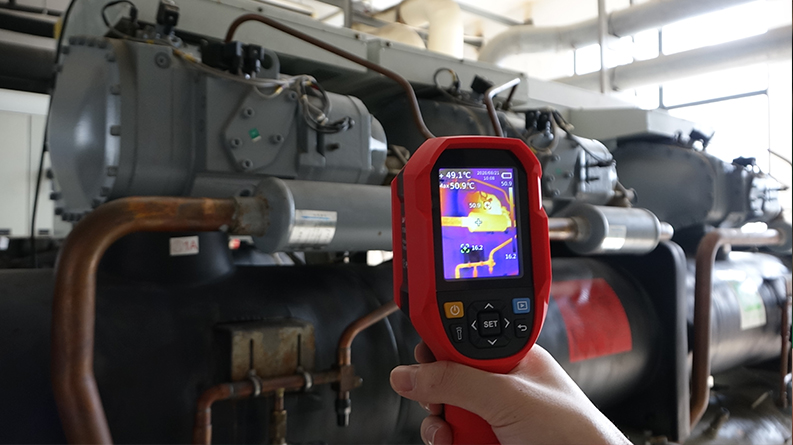

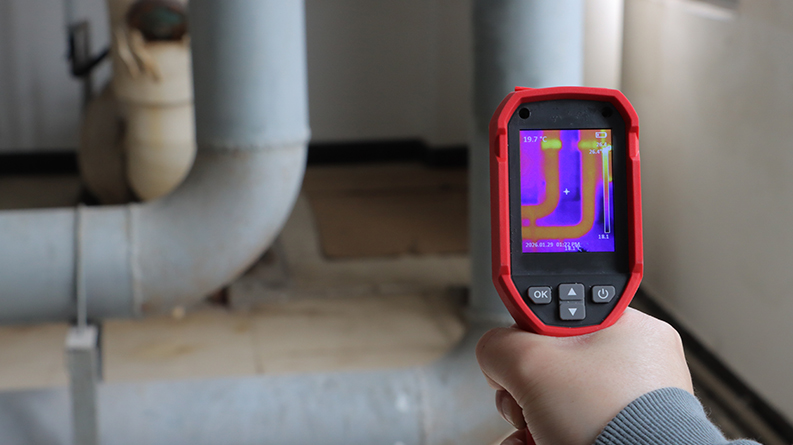

- Pipeline and Leak Detection.
- Fire Safety Inspection.
- Manufacturing Process Monitoring.

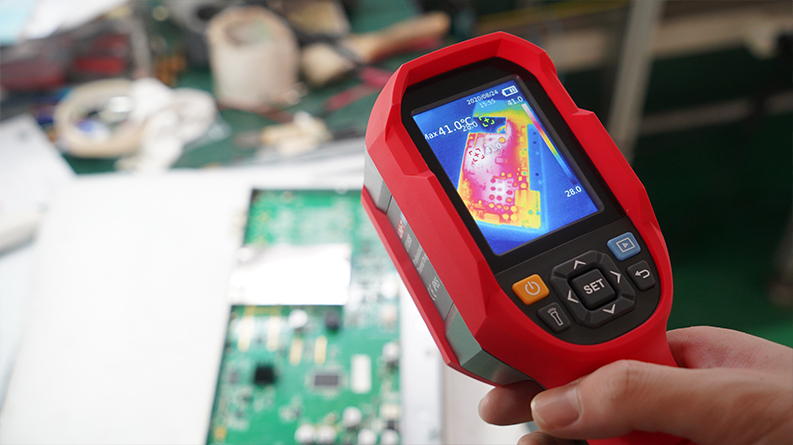

- PCB and Electronic Circuit Testing.
- Warehouse and Facility Inspection.
- Predictive Maintenance Applications.
- Thermal Energy Auditing.
- Refrigeration System Inspection.
- Industrial Equipment Troubleshooting.
- Research and Laboratory Analysis.
- Outdoor Thermal Surveillance.
Package Contents:
- 1x UNI-T UTi260B Heavy Duty Thermal Camera
- 1x User Manual
