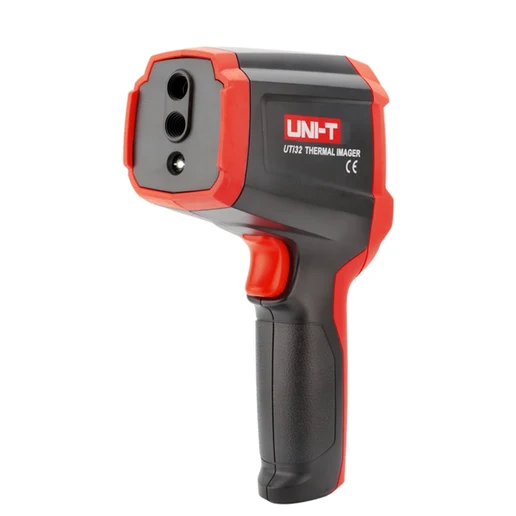

UNI-T UTi32 High Temperature Thermal Camera
The UNI-T UTi32 is a handheld high-temperature thermal imaging camera designed for measuring and visualizing temperatures from -20°C to 1000°C. It combines an infrared thermal sensor with a visible-light camera, allowing users to identify heat patterns and temperature differences that may not be visible to the naked eye. Its 32 × 32 infrared resolution, 30° × 30° field of view, and focus-free operation make it practical for quick inspections and troubleshooting.
The UTi32 supports thermal, visible-light, and fusion image modes, along with center-point measurement and automatic high/low temperature tracking. It also provides high/low temperature alarms, adjustable emissivity, image capture, LED illumination, Micro SD storage, and PC software analysis. Its high measurement range makes it particularly suitable for applications such as electrical equipment inspection, machinery maintenance, heating equipment, iron forging, glassware, porcelain production, petrochemical systems, and metallurgy.
Features:
- High-temperature thermal imaging capability.
- Handheld and portable design.
- Focus-free operation.
- Thermal, visible-light, and fusion viewing modes.
- Automatic high and low temperature tracking.
- Center-point temperature measurement.
- High/low temperature alarm indication.
- Adjustable emissivity.
- Image capture and storage.
- Built-in LED flashlight.
- Three selectable thermal color palettes.
- Micro SD card storage.
- PC software analysis support.
- Adjustable automatic power-off.
- Rechargeable battery operation.
Specifications:
| Technical Data | |
| IR resolution (Pixels) | 32×32 |
| Display | 2.4″ IPS (480×320) |
| Field of view (FOV) | 30°×30° |
| Thermal sensitivity (NETD) | 0.15℃ |
| Frame rate | ≤9Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Temperature measurement range | -20℃ ~ 1000℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 3 (Ironbow, Rainbow, Black hot) |
| Image modes | Thermal, Visual image, Fusion |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon |
| Software analysis | PC |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 2600mAh) |
| Battery operation time | ≥7 hours |
| USB | Type-C |
| Storage | 16G Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE, UKCA, FCC, RoHS |
| Product net weight | 301g |
| Product size | 205mmx124mmx65mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, English manual, Documents Download Operation Guide |
| Standard individual packing | Gift box |
Applications:
- Electrical equipment inspection.
- PCB and electronic equipment inspection.
- Detection of overheating components.
- Power distribution equipment maintenance.
- Motor and machinery inspection.
- HVAC and heating system inspection.
- Building and insulation inspection.
- Industrial equipment maintenance.
- Iron forging.
- Glassware production.
- Porcelain production.
- Petrochemical equipment inspection.
- Metallurgy applications.
- Preventive maintenance.
- Troubleshooting thermal abnormalities.
Package Includes:
- 1 × UNI-T UTi32 High Temperature Thermal Camera.
- 1 × Micro SD Card.
- 1 × USB Cable.
- 1 × User Manual.
- 1 × Documentation / Operation Guide.
