UNI-T UTi712S Cost-effective Thermal Camera
UNI-T UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include: temperature compensation (allows more accurate readings under different temperature environment), laser pointer, longer battery operation time (more than 8 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.
Features:
- 2.4” TFT Screen (320×240 Pixels).
- IR resolution: 120×90.
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉.
- Auto alarm for high/low temperature.
- Auto tracking for hot spot/cold spot.
- Image capture.
- Color palettes: 6(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava).
- Buzzer alarm.
- Laser pointer.
- LED flashlight.
- PC software analysis.
- Rechargeable Li-ion battery.
- 1/4”tripod mounting hole.
- IP54.
- 2m drop proof.
Specification:
| Technical Data | |
| IR resolution (Pixels): | 120×90 |
| Display: | 2.4” TFT LCD (320×240) |
| Field of view(FOV): | 50°×38° |
| Thermal sensitivity(NETD): | ≤60mK |
| Spatial resolution(IFOV): | 7.3mrad |
| Frame rate: | ≤25Hz |
| Spectral range: | 8~14µm |
| Focus: | Focus Free |
| Temperature measurement range: | -20℃~400℃ |
| Accuracy: | ±2℃ or ±2% whichever is greater |
| Emissivity: | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes: | 6 (White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava) |
| Image modes: | Thermal |
| Hi/Lo temperature alarm: | Icon,LED flashlight, Buzzer |
| PC software analysis: | √ |
| Laser pointer: | √ |
| LED light: | √ |
| General Characteristics | |
| Battery: | Fixed Li-ion battery (3.7V 2600mAh) |
| Battery operation time: | ≥8 hours |
| USB: | Type-C |
| IP rating: | IP54 |
| Drop proof: | 2m |
| Storage: | 16GB Micro SD card |
| Image/Video storage format: | BMP |
| Certificates: | CE,UKCA,FCC,RoHS |
| Product net weight: | 310g |
| Product size: | 197mm×72mm×60mm |
Applications:

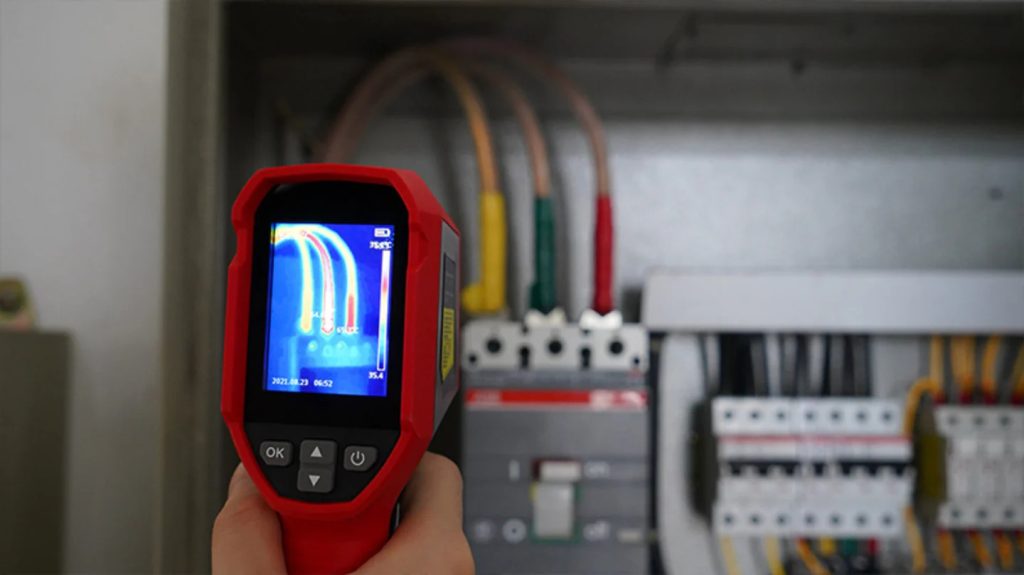

- Electrical Inspection.
- HVAC Inspection.
- Building Inspection.

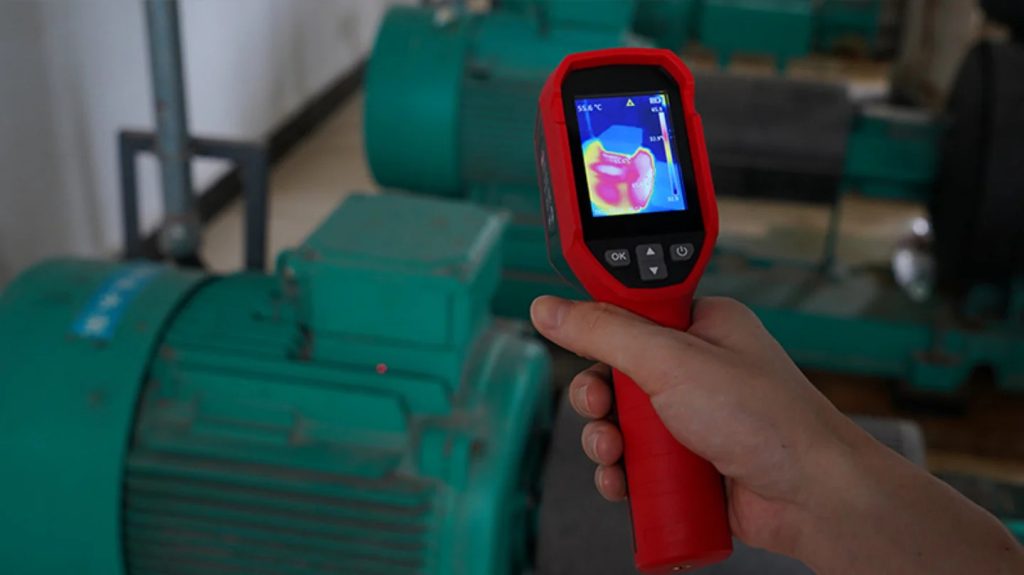

- Mechanical Maintenance.
- PCB Inspection.
- Automotive Troubleshooting.
- Pipeline Inspection.
- Heat Leakage Detection.
- Equipment Fault Detection.
- Home Repair Inspection.
Package Contents:
- 1x Thermal Camera UTi712S
- 1x Li-ion Battery (3.7V/2600mAh)
- 1x USB Type-C Cable
- 1x Micro SD Card
