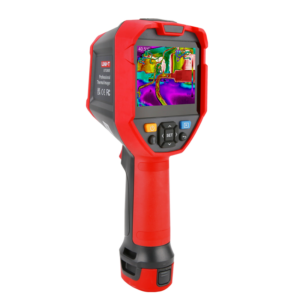

Enhanced Thermal Camera
UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.
Features :
- 3.5” IPS display screen (640×480 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
- Image capture
- Digital camera resolution: 2MP
- Digital zoom: 2x, 4x
- Image modes: Thermal,Visual image,Fusion,PIP
- Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm (Auto/Ratio/Below/Above/Section/Manual)
- LED flashlight
- Wi-Fi connection through Mobile App
- QR Code – photo management
- PC software: analysis and real-time image projection
- 5200mAh replaceable battery pack (Type-C rechargeable)

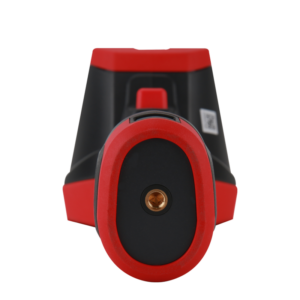

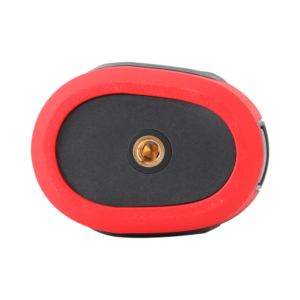

- 1/4”tripod mounting hole
- IP54
- 2m drop proof
Product Specifications of UTi720E
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 3.5‘’IPS (640×480) |
| Field of view(FOV) | 56°×42.2° |
| Thermal sensitivity(NETD) | ≤50mK |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | 5 Points/1 Line/3 Rectangles/3 Circles |
| Digital camera resolution | 2MP |
| Digital zoom | 2x, 4x |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| Isotherm | 6 (Auto/Ratio/Below/Above/Section/Manual) |
| Software analysis | PC+APP |
| Wi-Fi | √ |
| General Characteristics | |
| Battery | Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time | ≥ 3 hours (with Wi-Fi off) |
| USB | Type-C |
| IP rating | IP54 |
| Drop proof | 2m |
| Storage | 16GB Micro SD card |
| Image/Video storage format | JPEG |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 654g |
| Product size | 260mm×97mm×99mm |
Applications of UTi720E
PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
Electric power tower inspection
Pipeline Inspection
Solar panel inspection
HVAC inspection
