UNI-T UTi720T Portable Thermal Camera

UNI-T UTi720T Portable Thermal Camera

The UNI-T UTi720T portable thermal camera is a compact, handheld device engineered for rapid detection of faults across a range of industrial settings. Housed in an ergonomic, palm-sized body, it features a 3.5″ TFT touchscreen (640×480) that provides clear, intuitive control over thermal imaging functions. At its core lies a 256×192 VOx detector (12 µm pixel pitch) capable of capturing temperature differences down to ≤ 50 mK. A focus-free lens and a 56° (H) × 42° (V) field of view enable users to quickly scan large areas for hotspots without manual refocusing.

The UTi720T can measure temperatures from –20 °C up to 550 °C with an accuracy of ± 2 °C or ± 2 % (whichever is greater), making it suitable for HVAC inspections, electrical equipment checks, and building diagnostics. On-screen tools including multiple measurement points, lines, rectangles, and circles allow immediate hotspot analysis, while isotherm modes (Auto, Manual, Above, Below, Section, Ratio) help isolate specific temperature bands. Integrated Wi-Fi (paired via NFC) and Bluetooth allow seamless data transfer to the companion app for further analysis, and a built-in LED flashlight plus buzzer facilitate work in low-light conditions.

Running on a rechargeable 1800 mAh Li-ion battery (≥ 2.2 hours runtime with Wi-Fi off) and backed by IP54/1 m drop protection, the UTi720T is designed for field technicians who need a reliable, all-in-one thermal solution.

Features:

• Ergonomic, palm-sized housing with focus-free lens.

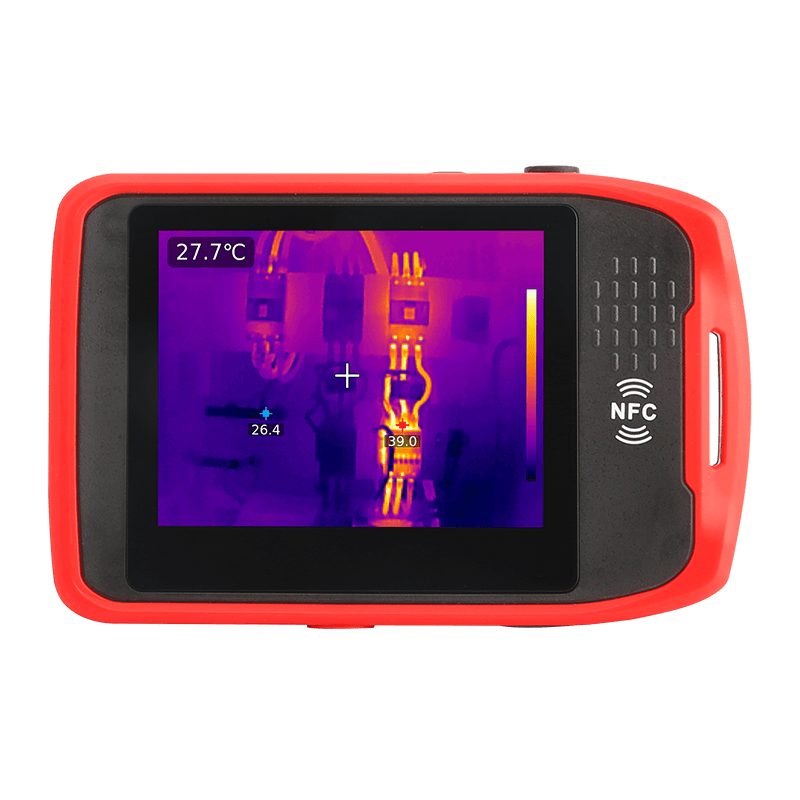

• 3.5″ capacitive TFT touchscreen (640 × 480).
• 256 × 192 IR detector (12 µm pixel size) capturing ≤ 50 mK sensitivity.
• 56° (H) × 42° (V) field of view for wide-area scanning.
• Temperature measurement range –20 °C to 550 °C (± 2 °C or ± 2 %).
• On-screen analyzer: 5 measurement points, 1 line, 3 rectangles, 3 circles.
• Multiple isotherm modes (Auto, Manual, Above, Below, Section, Ratio).
• Hi/Lo temperature alarm with LCD animation, LED flashlight, and buzzer.
• 2 MP visible-light camera with 1–8× continuous digital zoom.
• Video recording (.avi) and still-image capture (JPG).

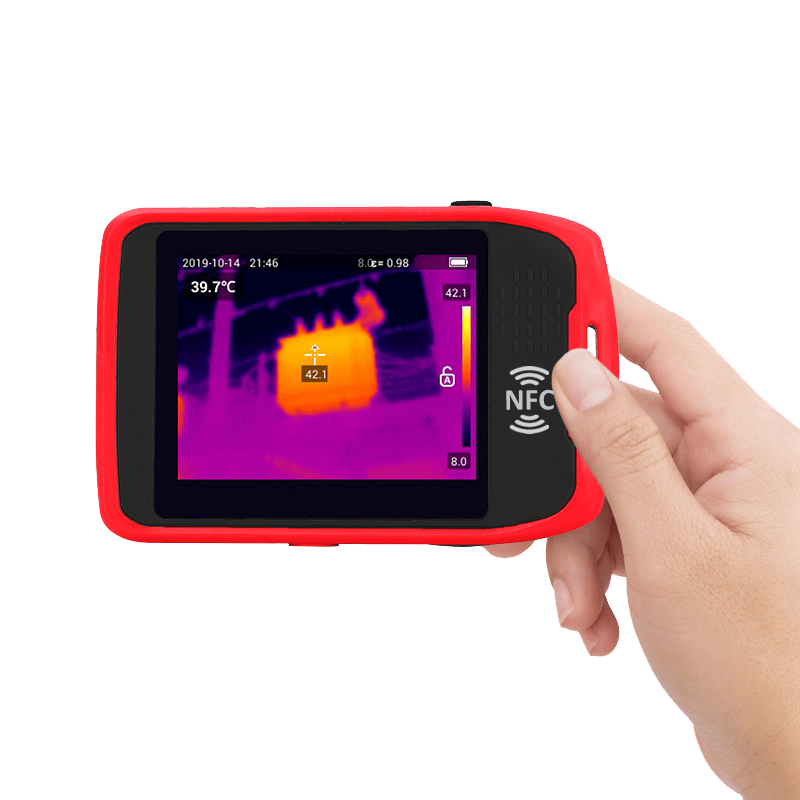

• Integrated Wi-Fi (connect via NFC) and Bluetooth for seamless app connectivity.
• Rechargeable 1800 mAh Li-ion battery (≥ 2.2 hours runtime with Wi-Fi off).
• IP54 rating and 1 m drop proof for rugged field use.

Specifications:

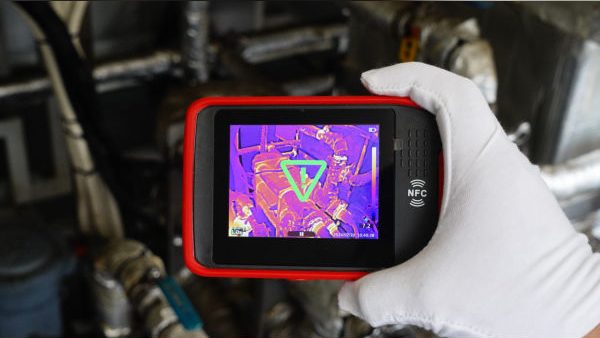

Applications:

• Automotive Inspection.
• HVAC Mechanical Maintenance.
• PCB Performance Testing.

Package Contents:

• 1x Soft Carrying Bag
• 1x UTi720T Thermal Imager

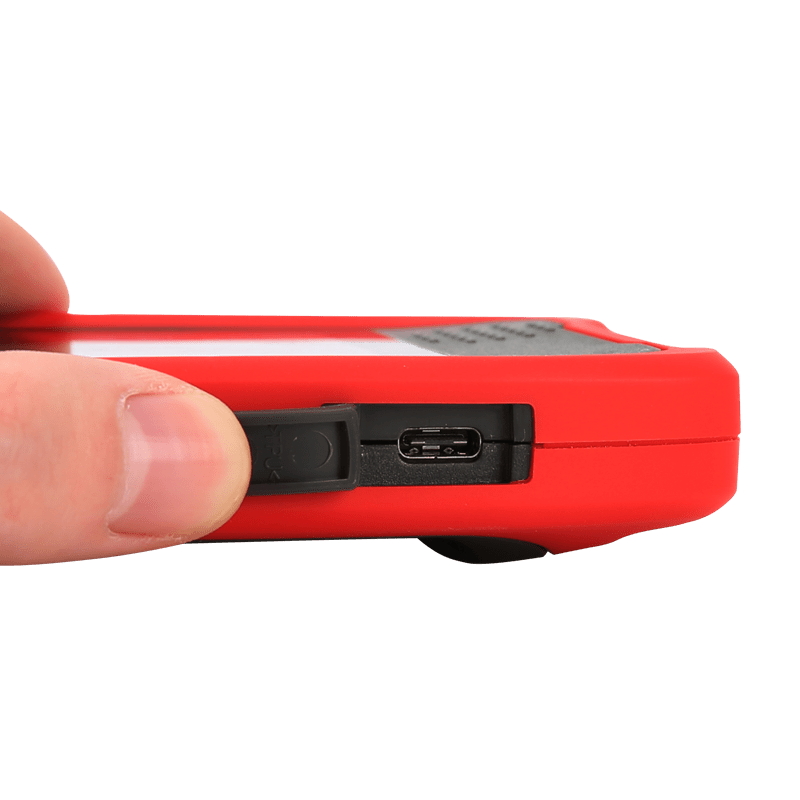

• 1x Type-C USB Cable
• 1x Quick Start Guide
• 1x Wrist Strap

UNI-T  UTi720T Documents:

• Datasheet
• User Manual
